SPINNER SB 32-T-V4

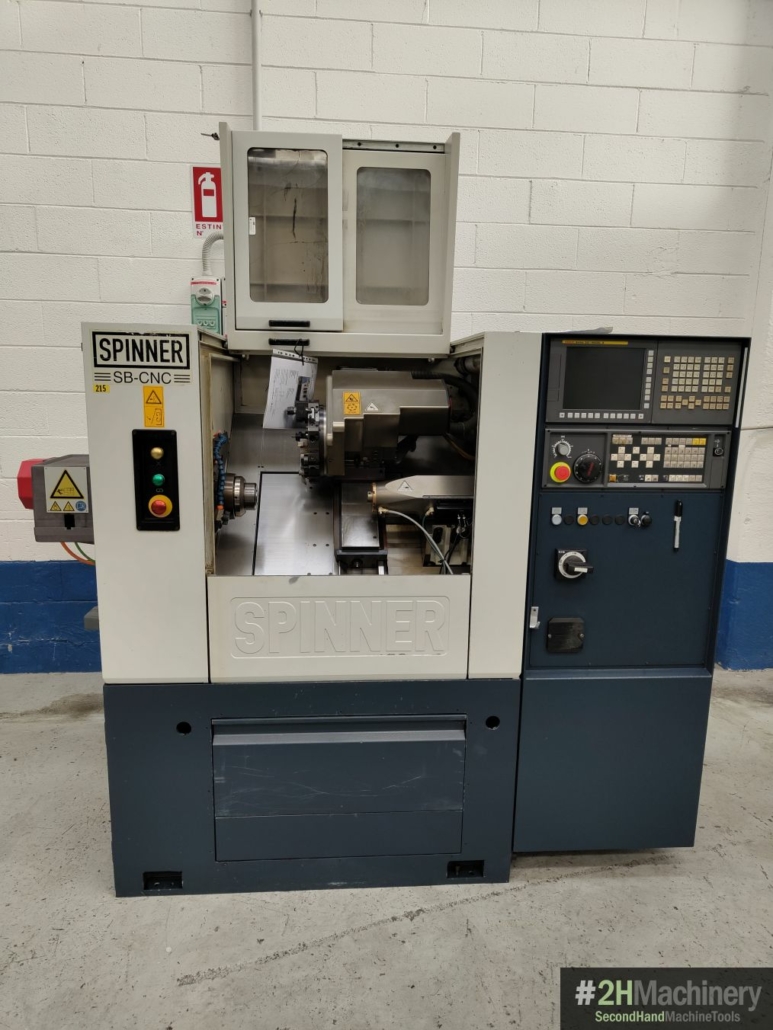

CNC LATHE SPINNER SB 32-T-V4

TYPE: CNC lathe
MAKE: SPINNER
MODEL: SB 32-T-V4
YEAR: 2016

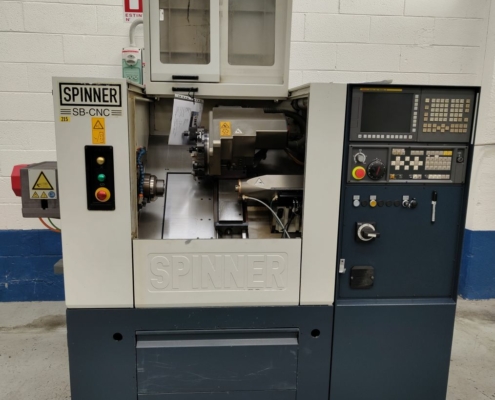

The used SPINNER SB 32-T-V4 CNC lathe features Heidenhain optical scales and rigid construction for maximum precision and hard material processing. Excellent condition, year 2016

TECHNICAL SPECIFICATIONS

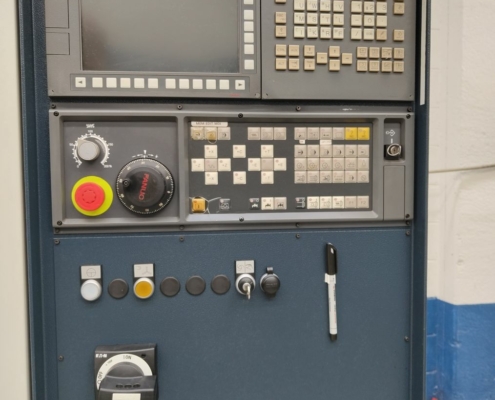

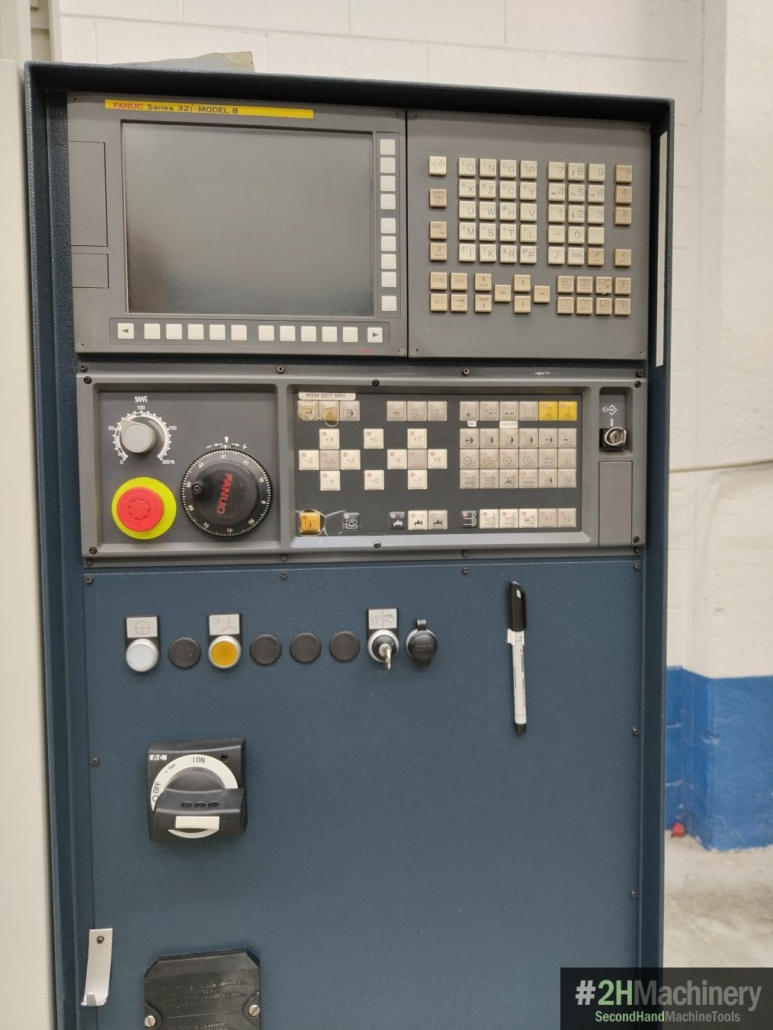

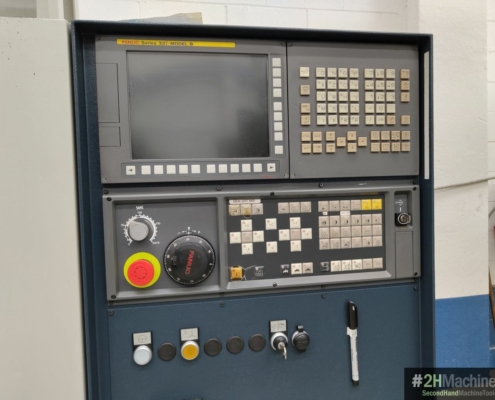

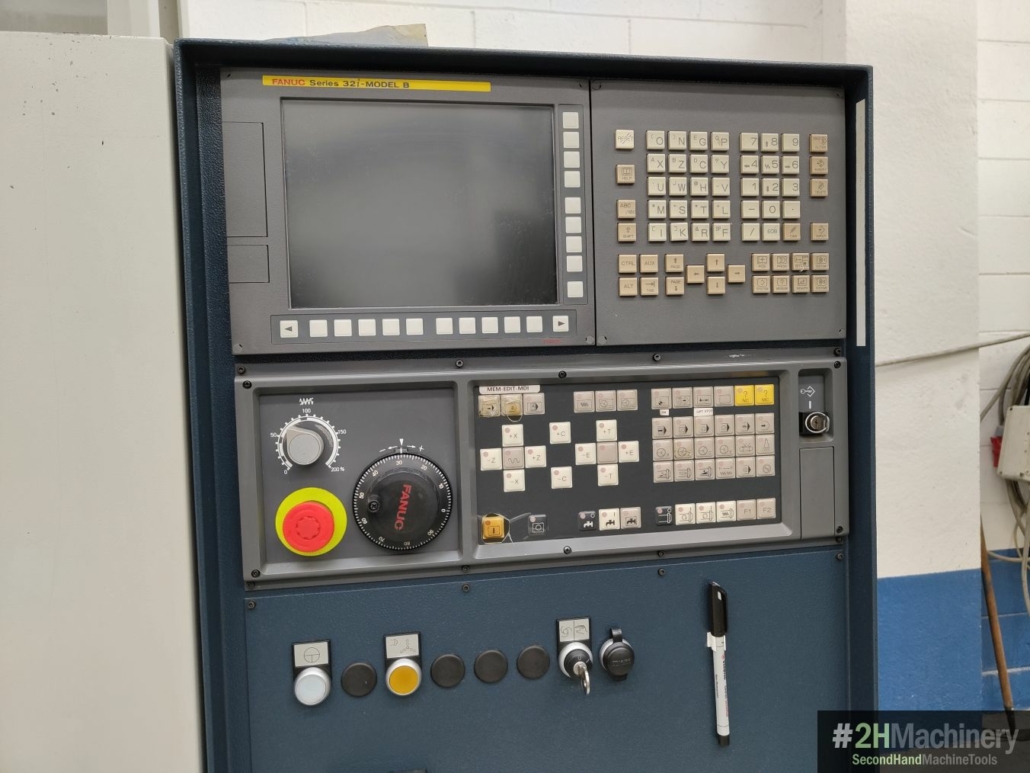

FANUC 32iB CNC with Manual Guide

X-axis travel 250 mm
Z-axis travel 285 mm
Heidenhain optical scales on all axes
X/Z positioning repeatability 0.4 Micron

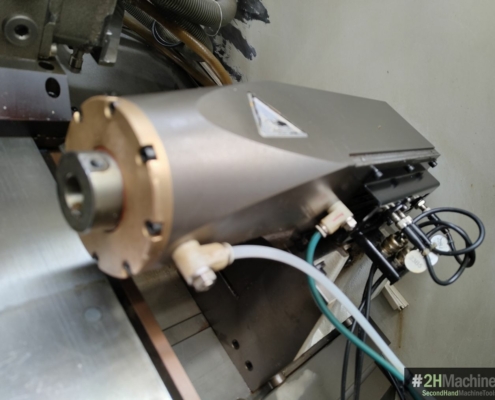

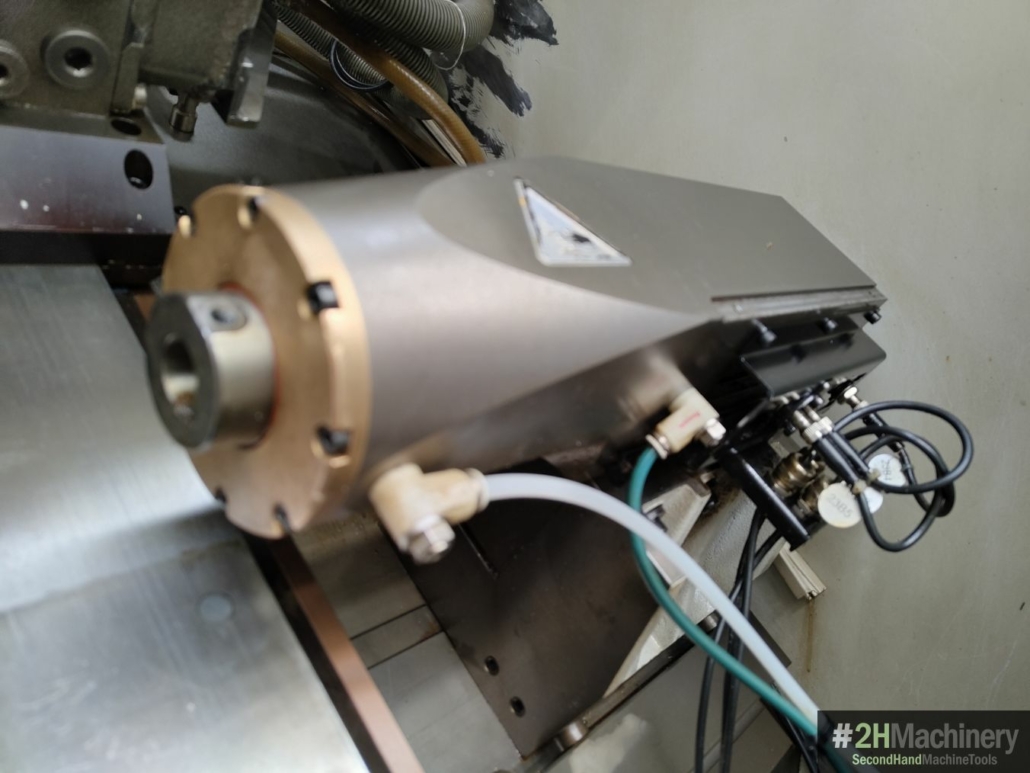

MK2 pneumatic tailstock

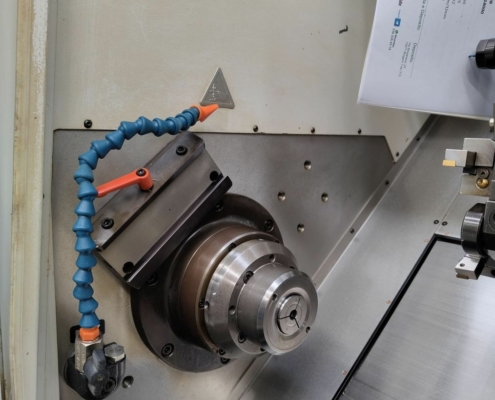

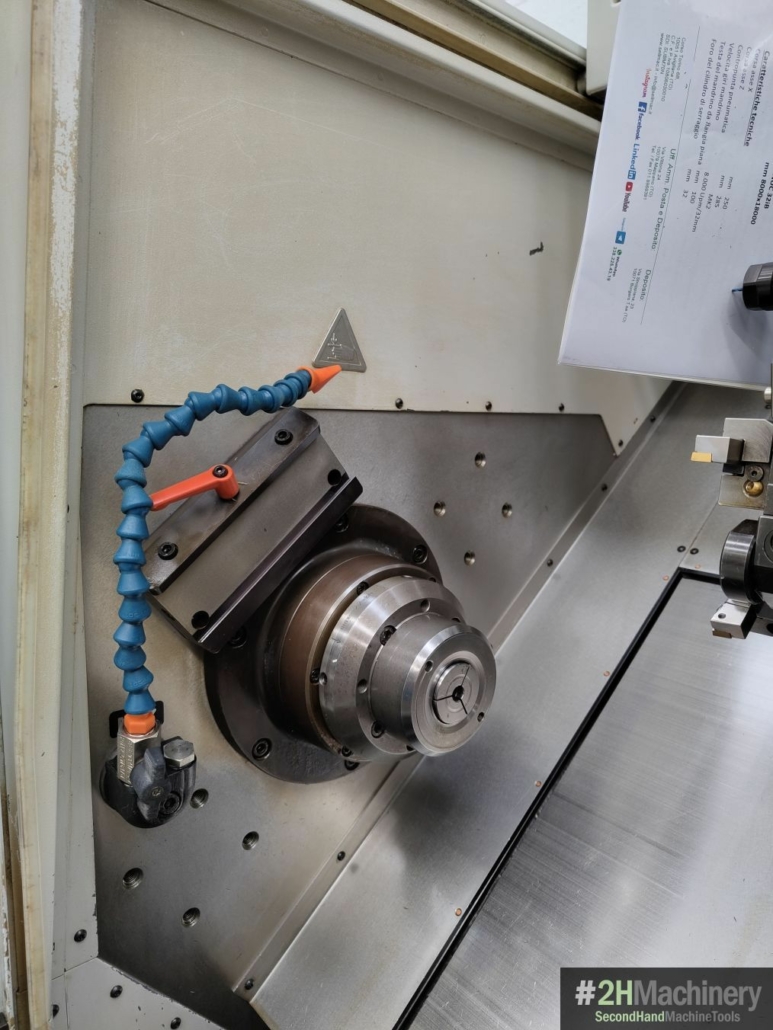

Ultra-precision spindle with roundness error of 0.2 Micron
Spindle speed 8,000 RPM

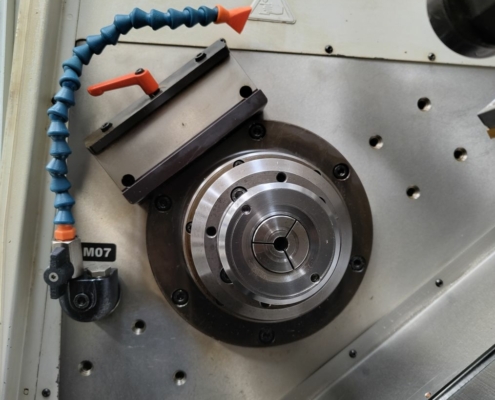

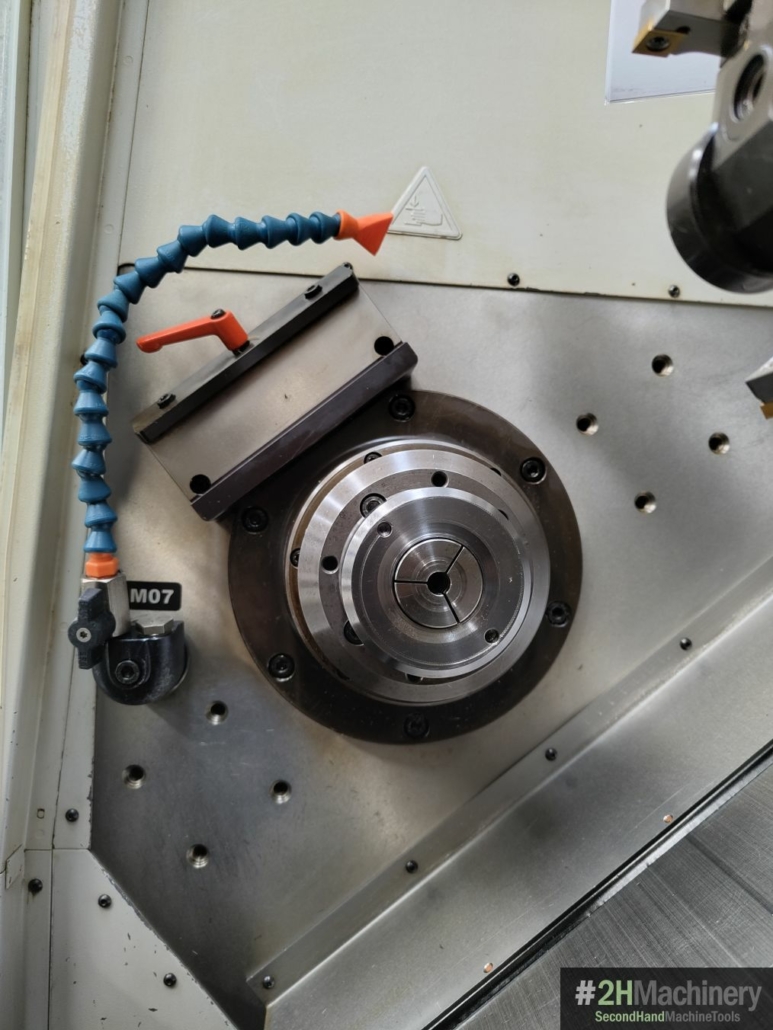

Flat flange spindle head 100 mm
Clamping cylinder bore 32 mm
C-axis for spindle incl. “Transmit” software option for frontal machining and “cylinder interpolation” for external machining
SPINNER-built pneumatic clamping cylinder with continuously adjustable clamping force and stroke.
Optical microscope for presetting

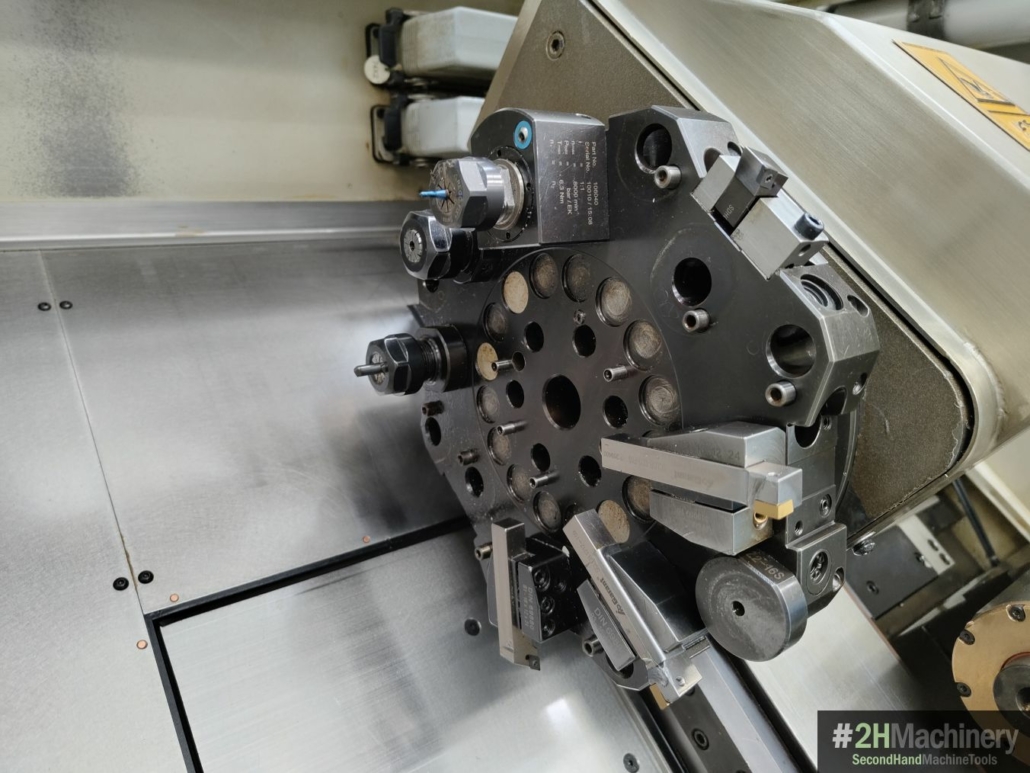

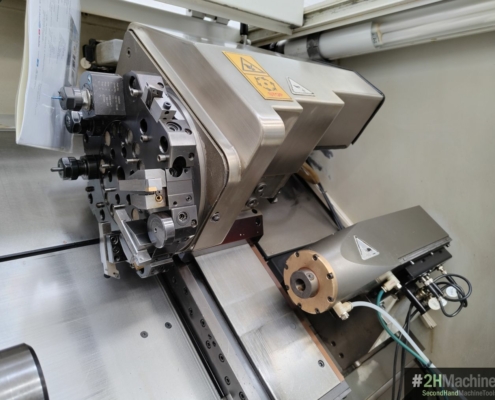

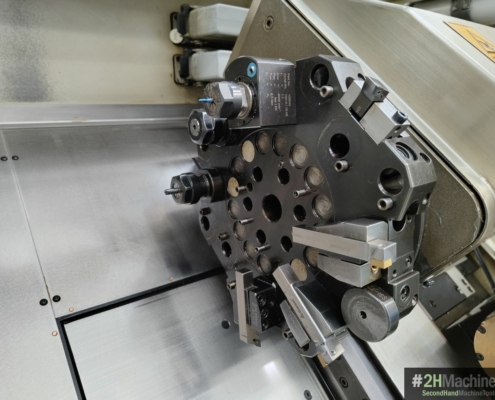

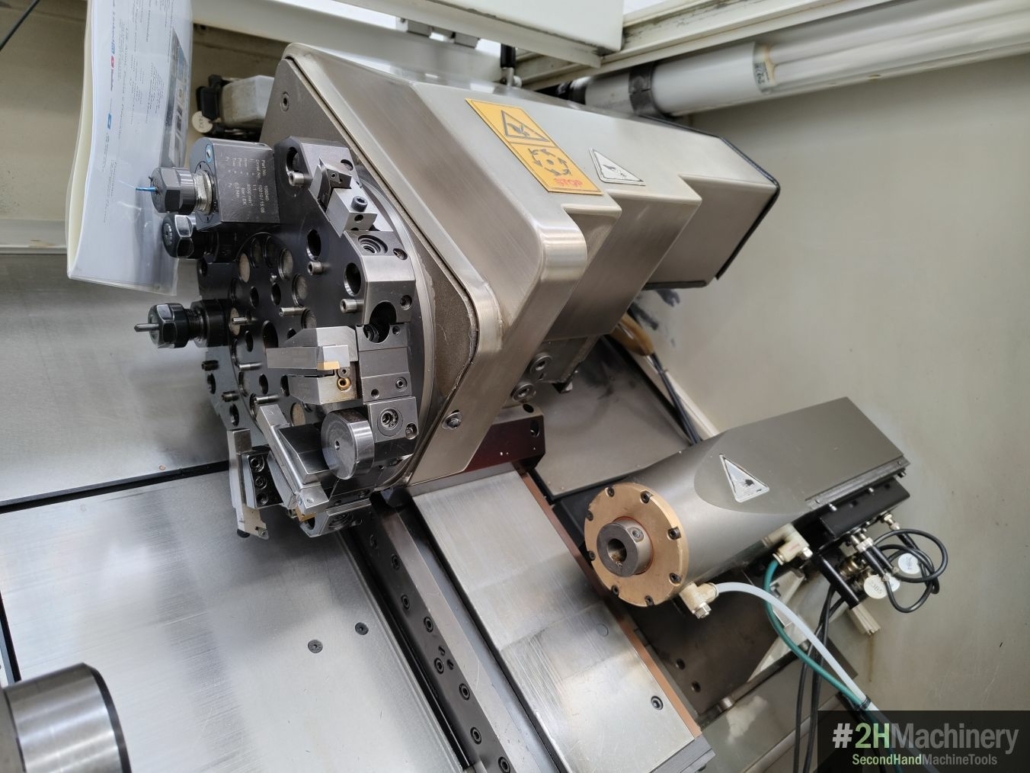

16-station turret with VDI16 tool holder attachment
8 motorized stations in the turret for milling and drilling operations

Machine suitable for machining hard metals and hardened steel

Data subject to possible revisions, not binding
