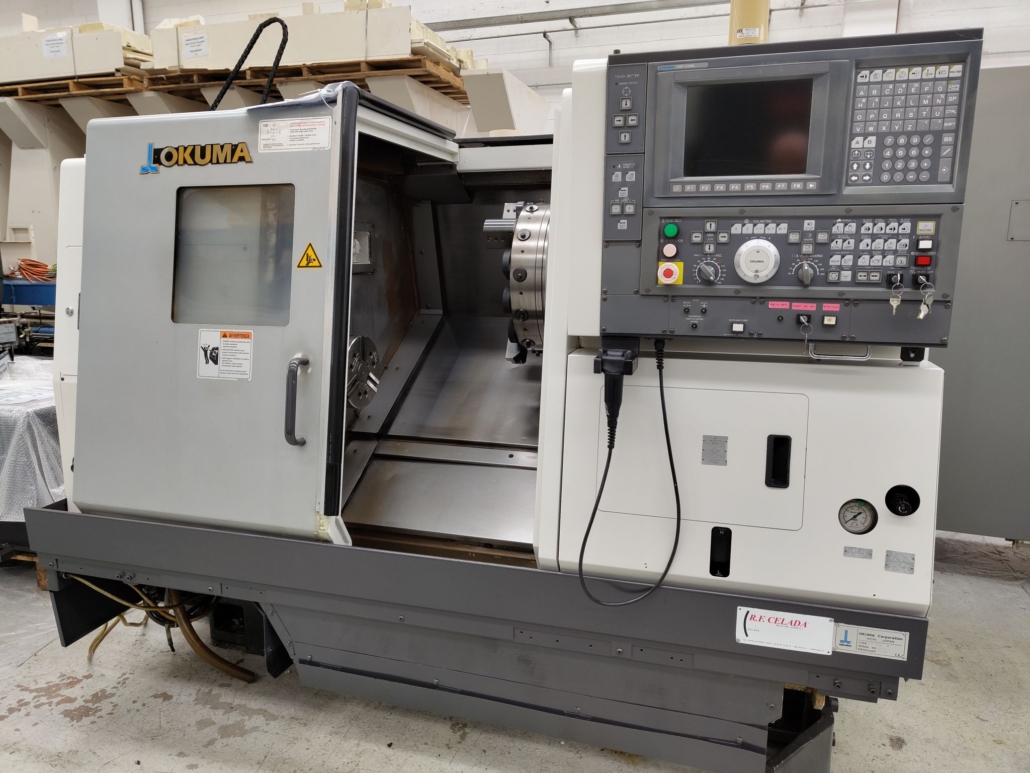

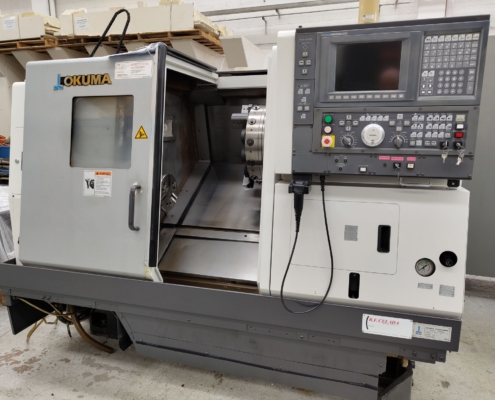

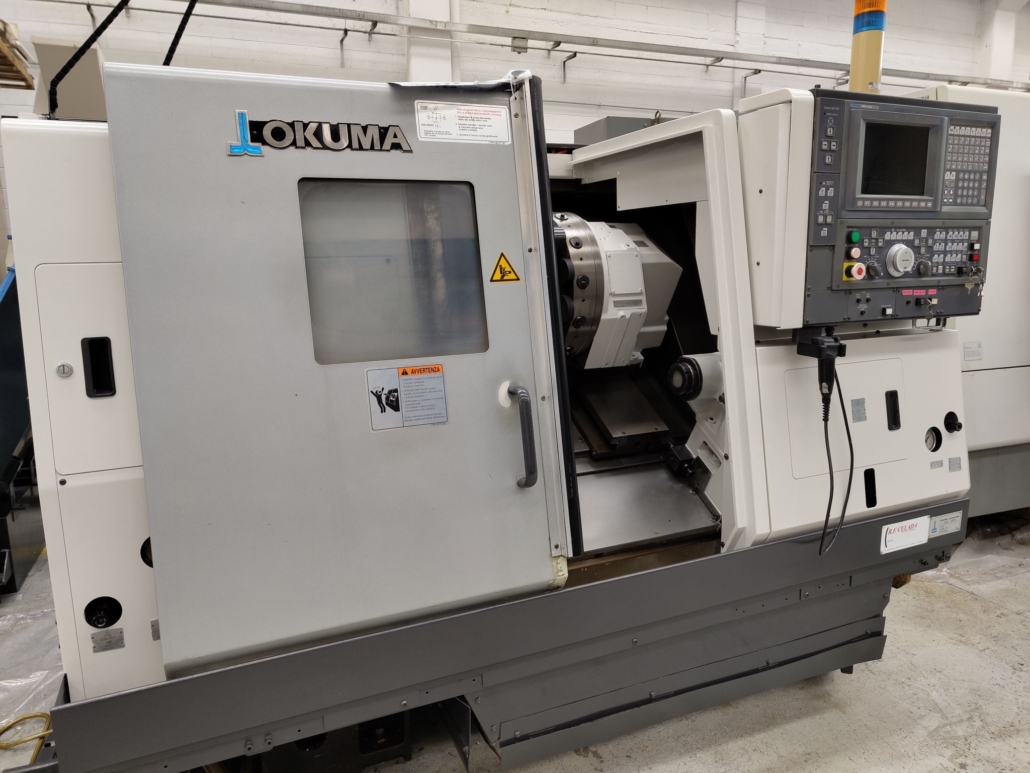

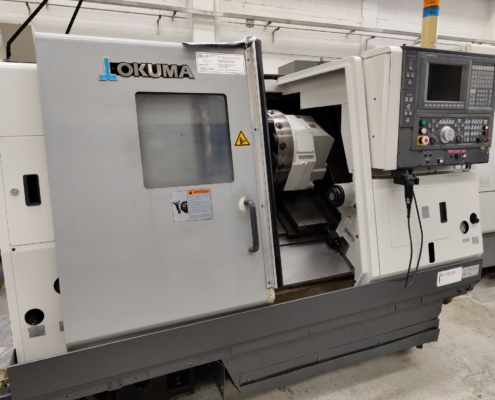

CNC Lathe OKUMA LB 300 M
TYPE: CNC lathe with C axis and live tools
MAKE: OKUMA
MODEL: LB 300 M
YEAR: 2012
The used OKUMA LB 300 M CNC lathe is equipped with C axis, driven tools, CNC OSP U100L. Machine in excellent condition, year 2012.
TECHNICAL SPECIFICATIONS
Used CNC lathe OKUMA LB 300 M
Year 2012

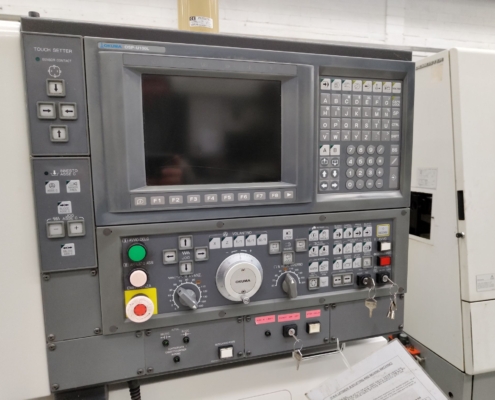

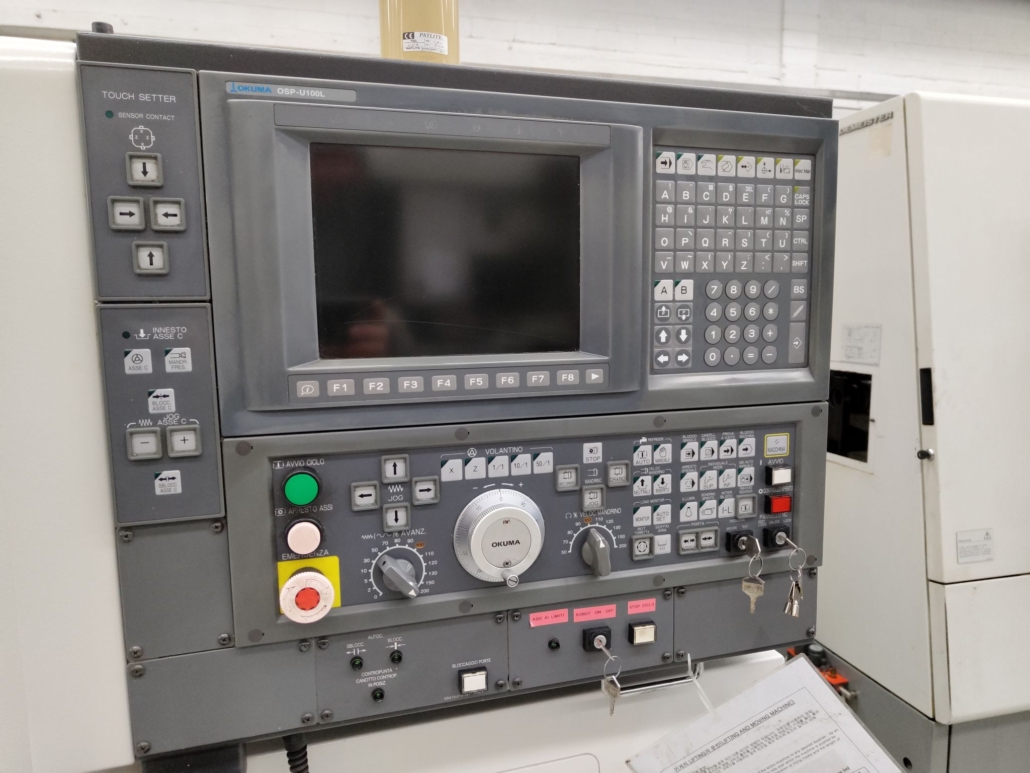

OSP U100L CNC unit
C axis
Capacity
Max diam. turning 340 mm
Max turning length 480 mm
Distance between centers 500 mm
Aces
X axis travel 280 mm
Z axis travel 500 mm
C Axis 360° – 0.001 increment
Rapid X axis 20 m/min
Rapid Z axis 25 m/min
C axis 200 rpm
Incremental X and Z axes from 0.001 to 1.000 mm

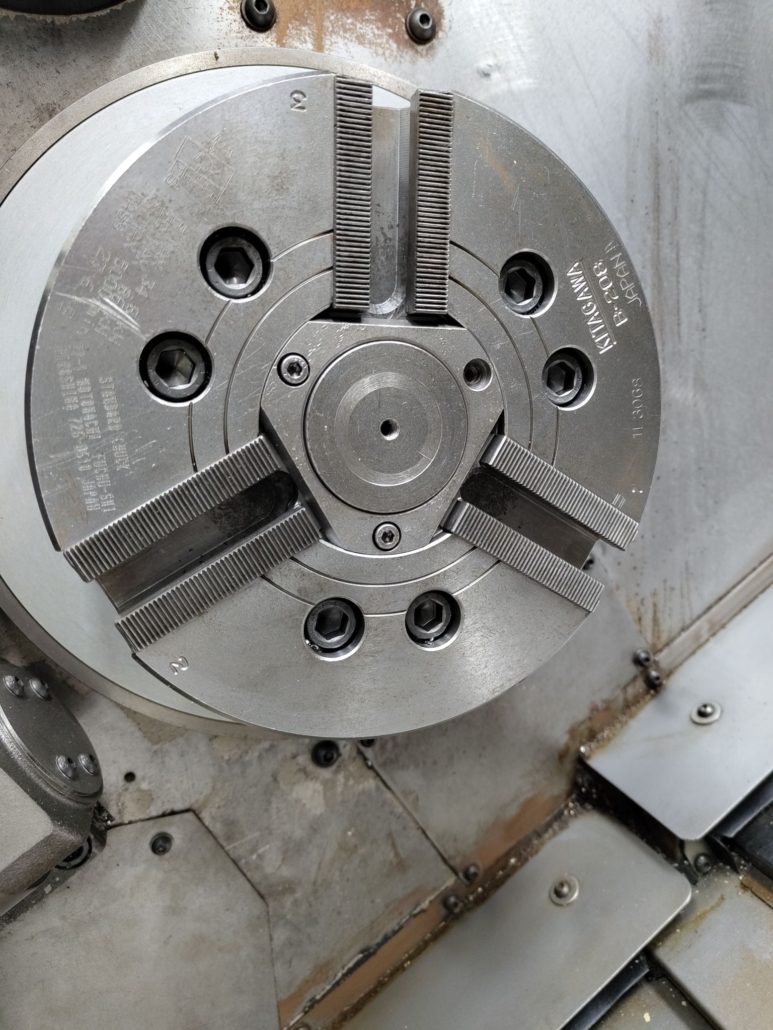

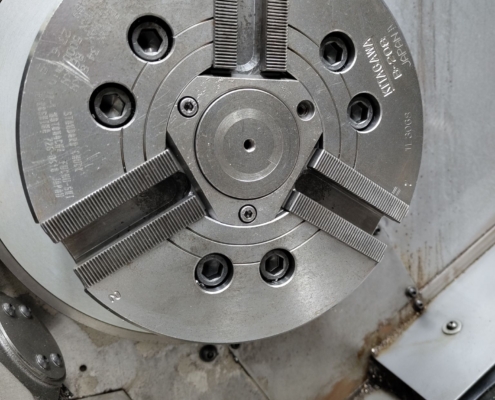

Spindle
ASA 8 connection
Speed 45-3800 rpm
Power 22 kW
Bar passage diameter 65 mm
2 electronic ranges

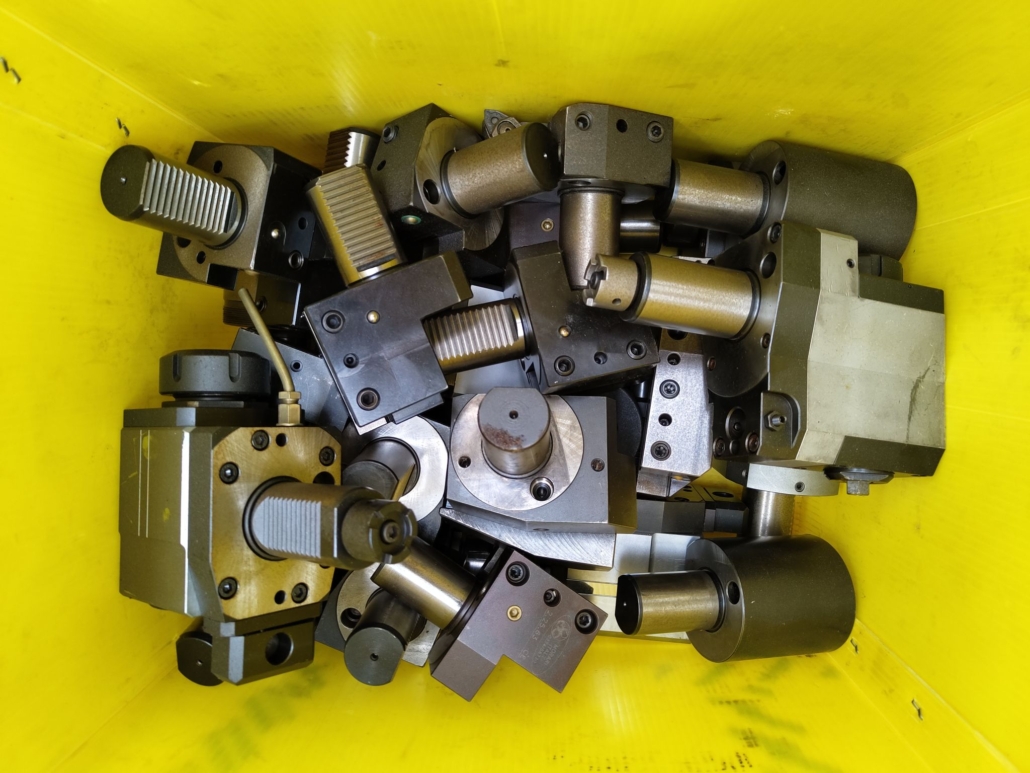

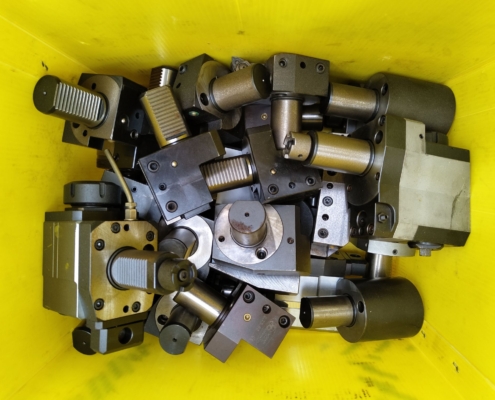

Powered tools
Speed 45-4500 rpm
Power 3.3 kW

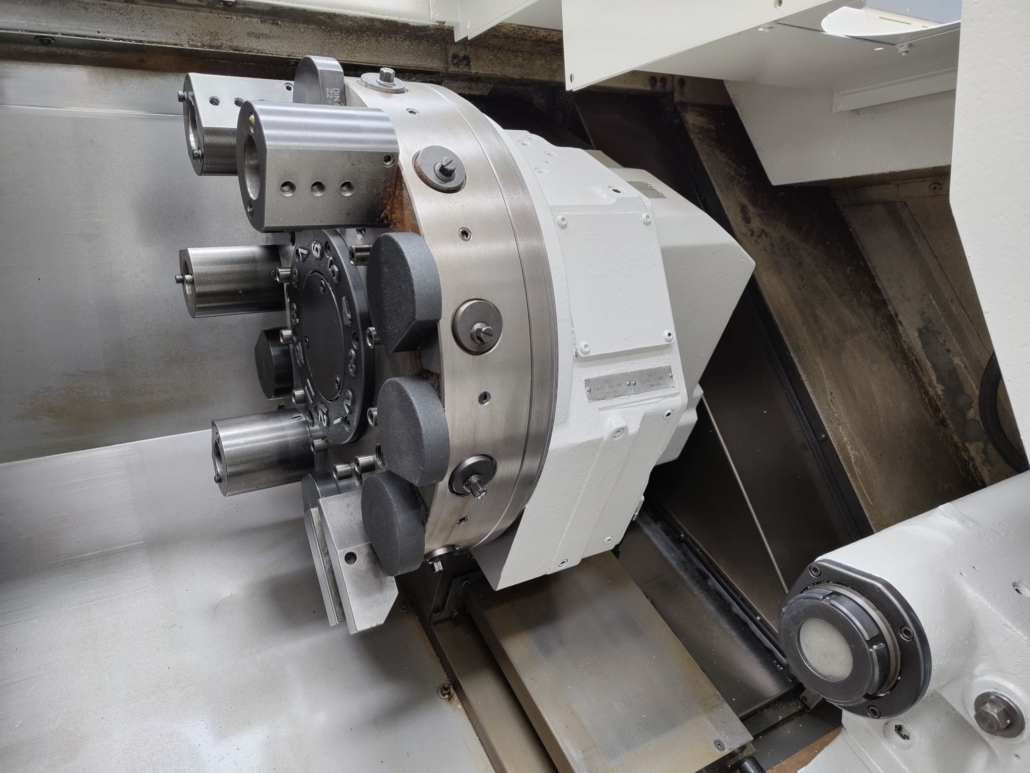

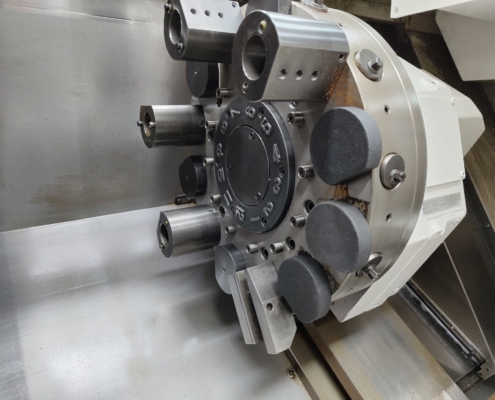

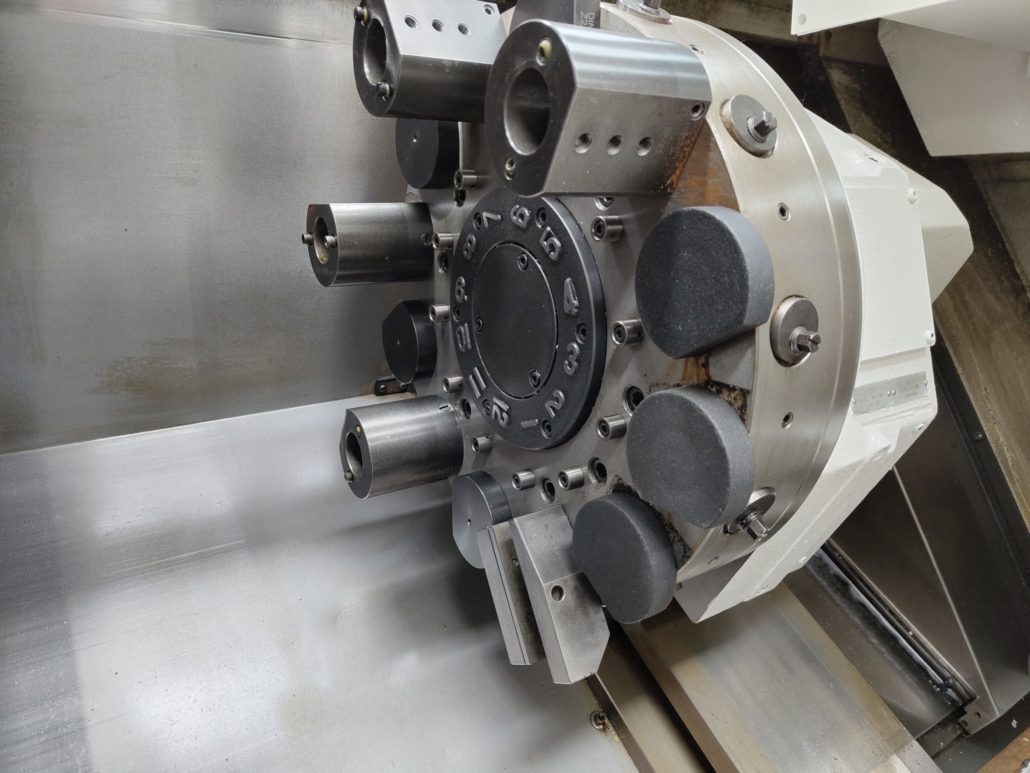

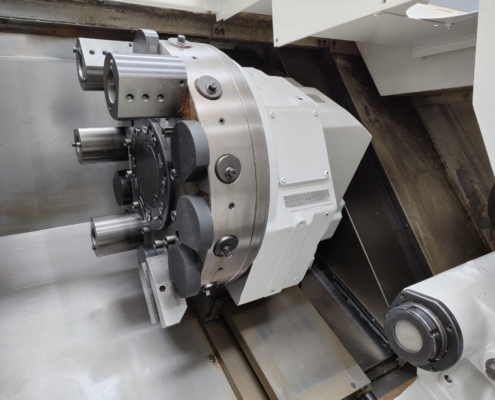

Turret
Type V12 NCM
Stations 12
Square tool sections 25 mm
Bar section 40 mm
Tailstock
Sleeve diameter 90 mm
Stem stroke 120 mm
MT5 stem attachment
Chip conveyor
Data subject to possible revisions, not binding
