MORI SEIKI NL 2000 SY/500

CNC Lathe MORI SEIKI NL 2000 SY/500

TYPE: CNC lathe with counterspinle and Y axis
MAKE: MORI SEIKI
MODEL: NL 2000 SY/500
YEAR: 2005

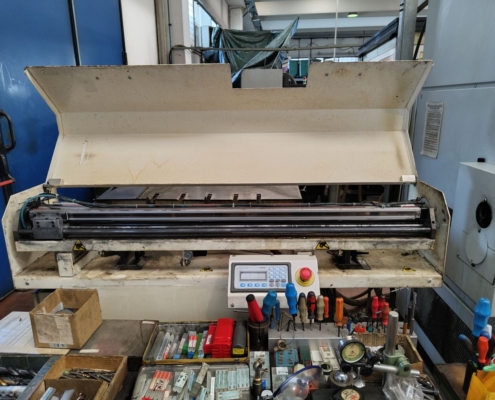

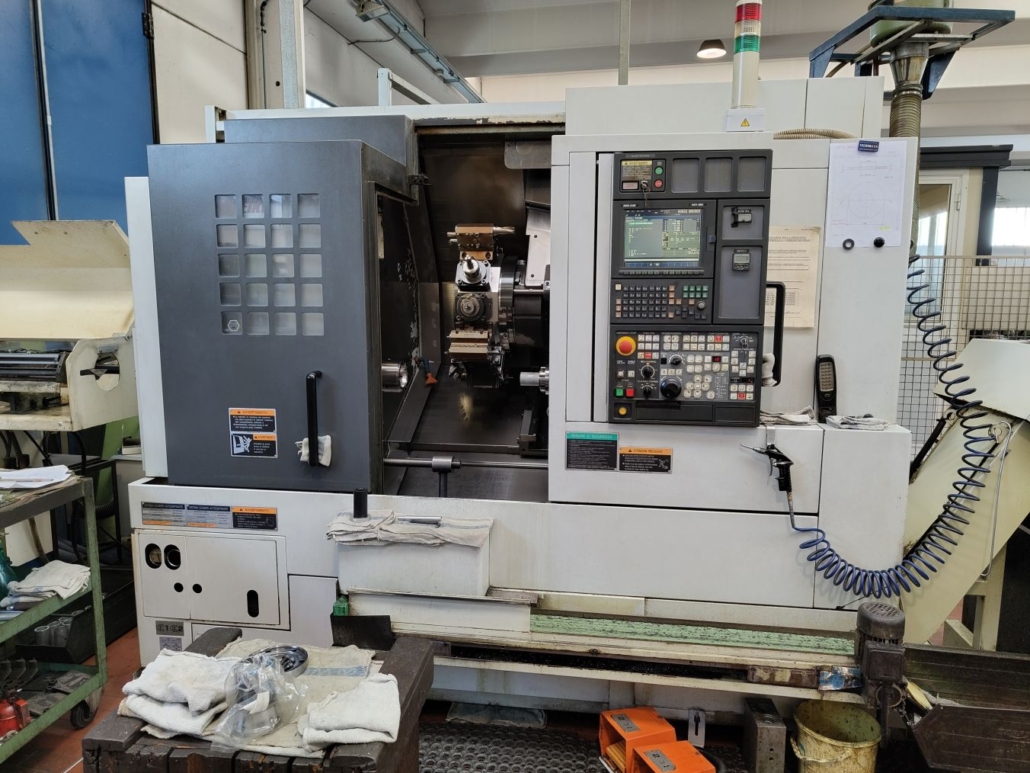

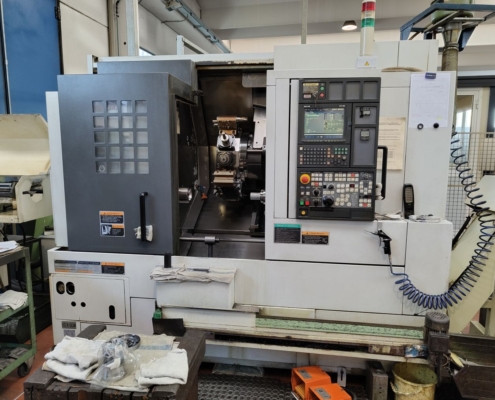

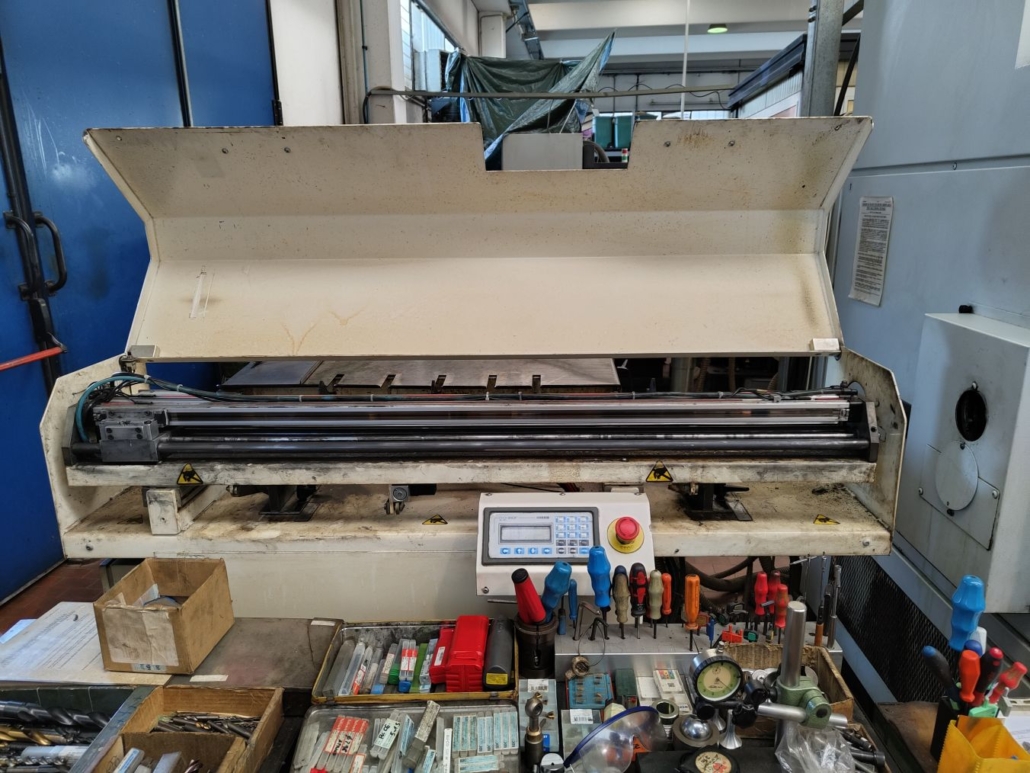

Used CNC lathe MORI SEIKI NL 2000 SY/500, with counterspindle, Y axis and bar loader. Good working conditions, yom 2004

TECHNICAL SPECIFICATIONS

MORI SEIKI NL2000 SY/500
Year 2005

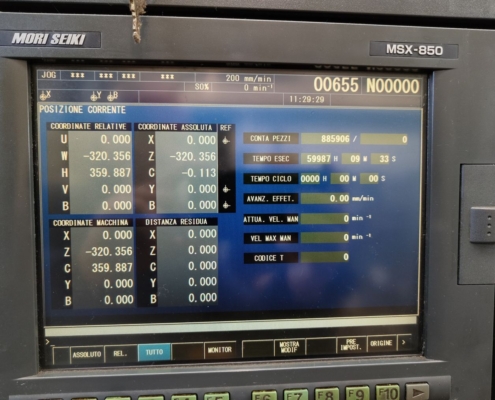

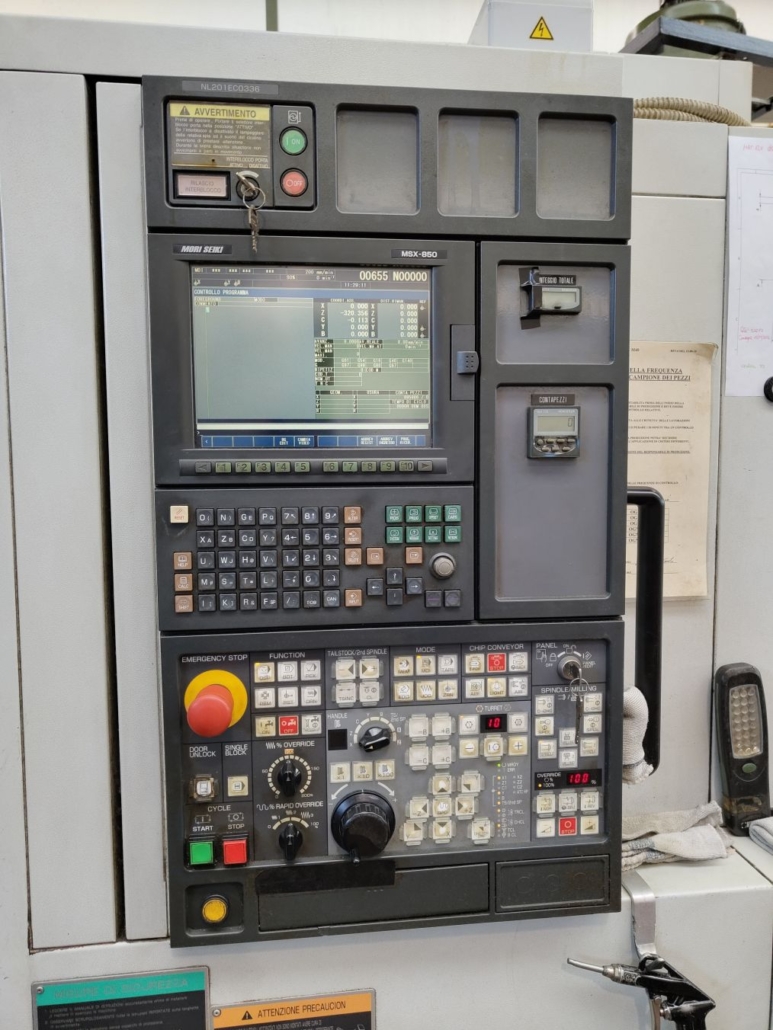

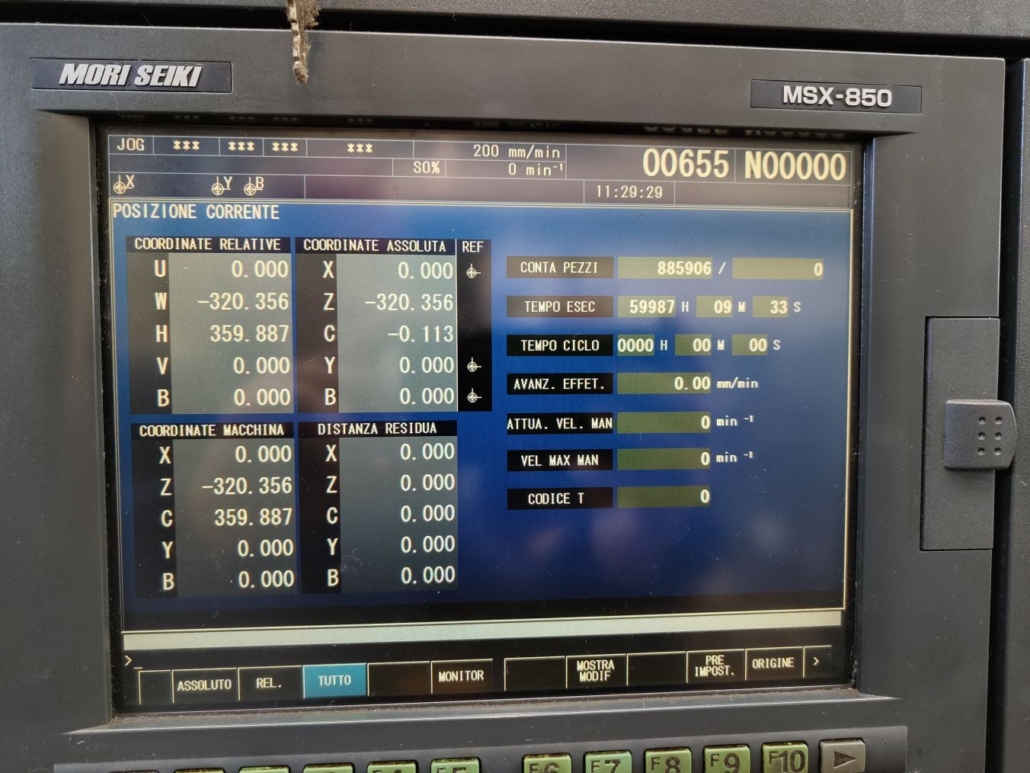

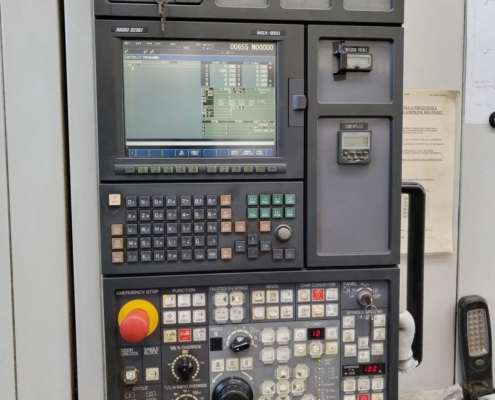

CNC Mitsubishi MSX-850

– Number of axes : 6
MAIN SPINDLE
– Spindle nose : A2-6
– Spindle power : 15 [kW]
– Spindle speeds : 5.000 [rpm]
– Max. bar diameter : 65 [mm]
– Max. turning diameter : 356 [mm]
– C axis indexing precision : 0,001 [°]

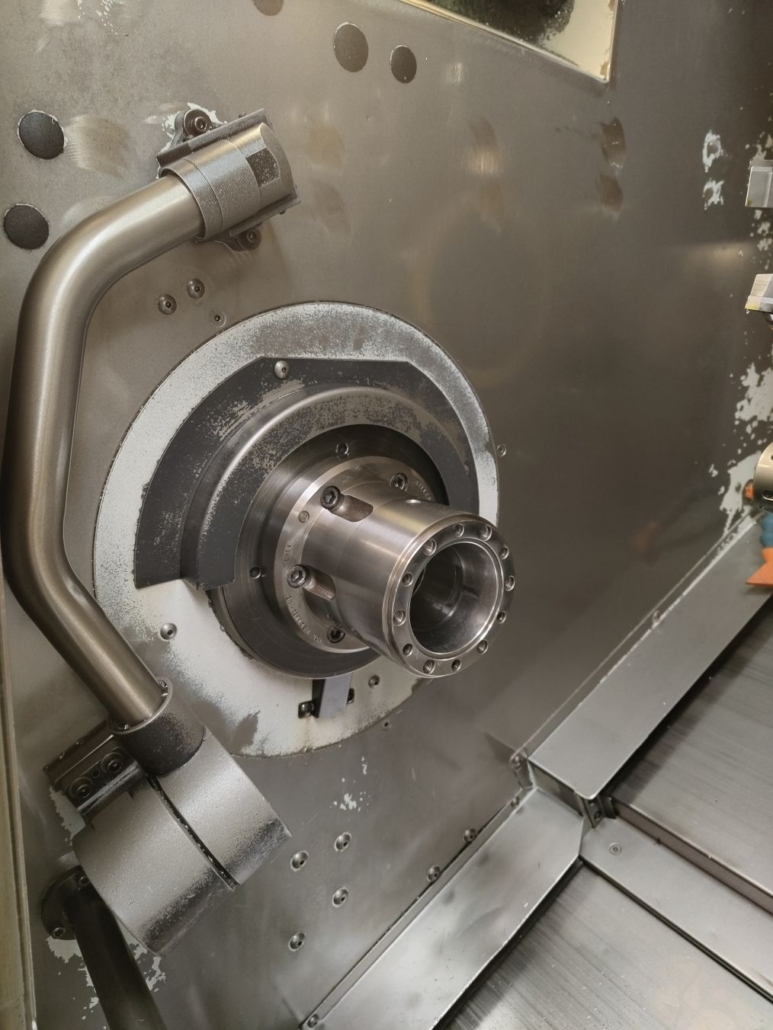

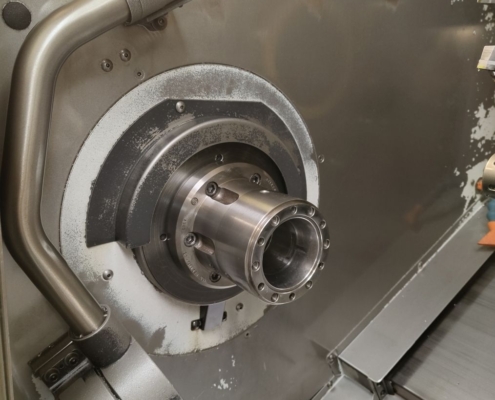

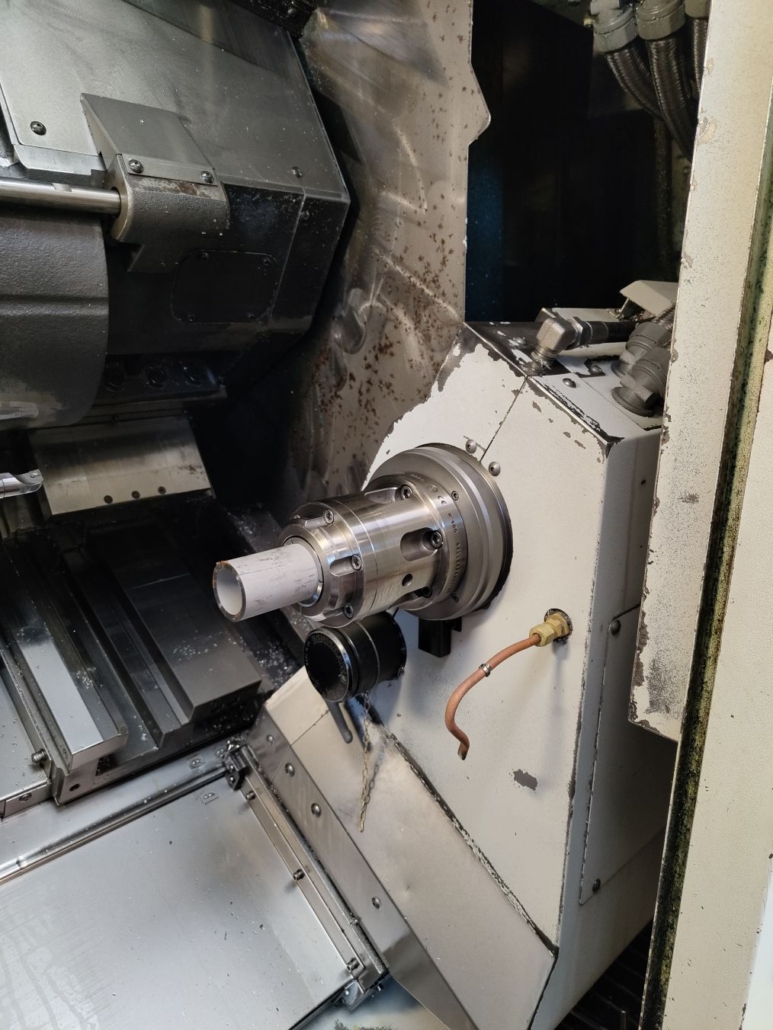

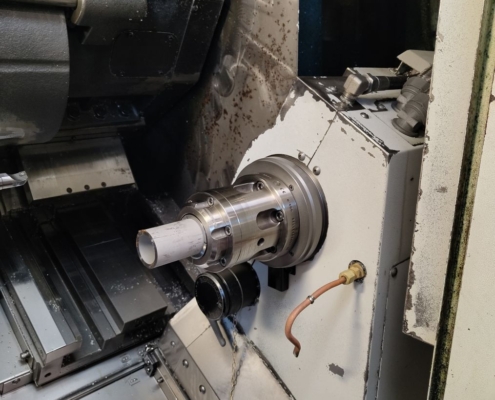

COUNTER-SPINDLE
– Spindle nose : A2-5
– Spindle power : 11 [kW]
– Spindle speeds : 6.000 [rpm]
– C axis indexing precision : 0,001 [°]
– B Axis stroke : 564 [mm]
– Spindle / counter-spindle distance : 784 [mm]

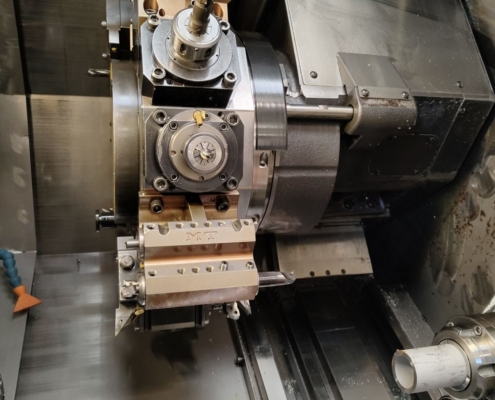

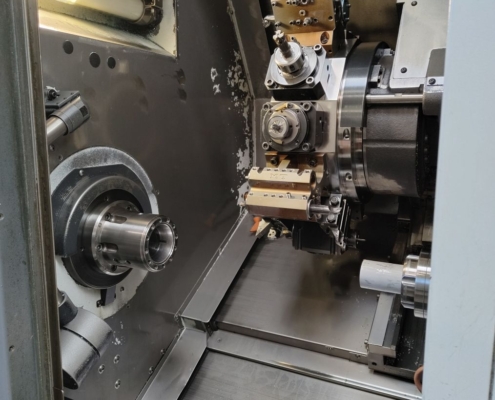

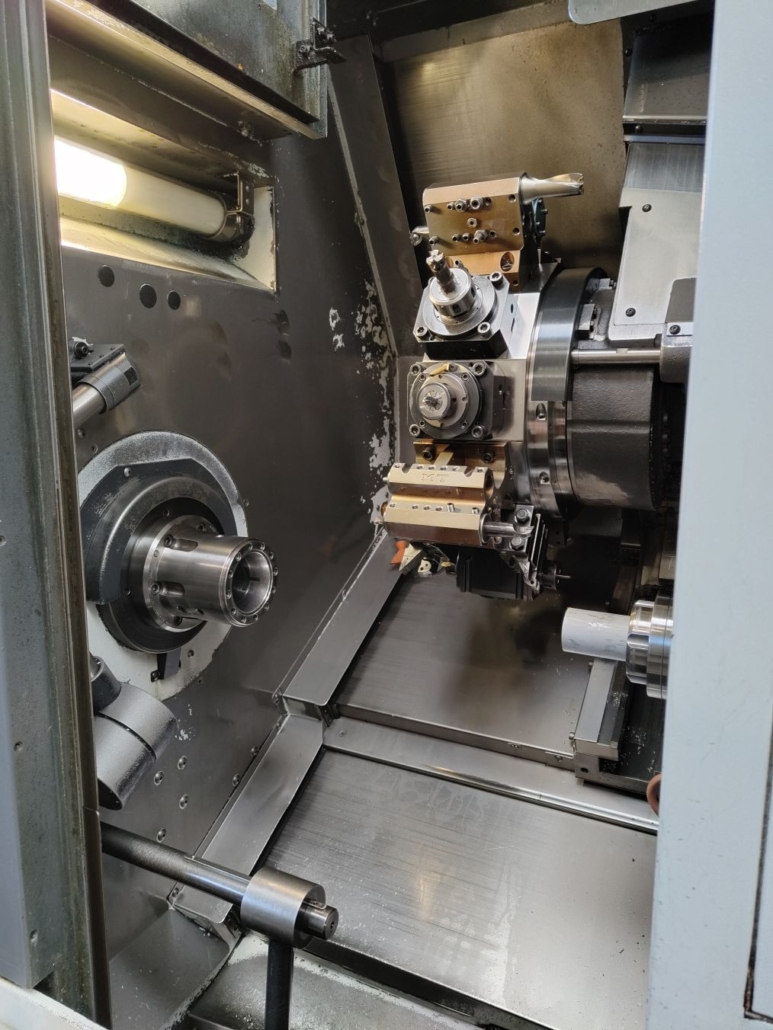

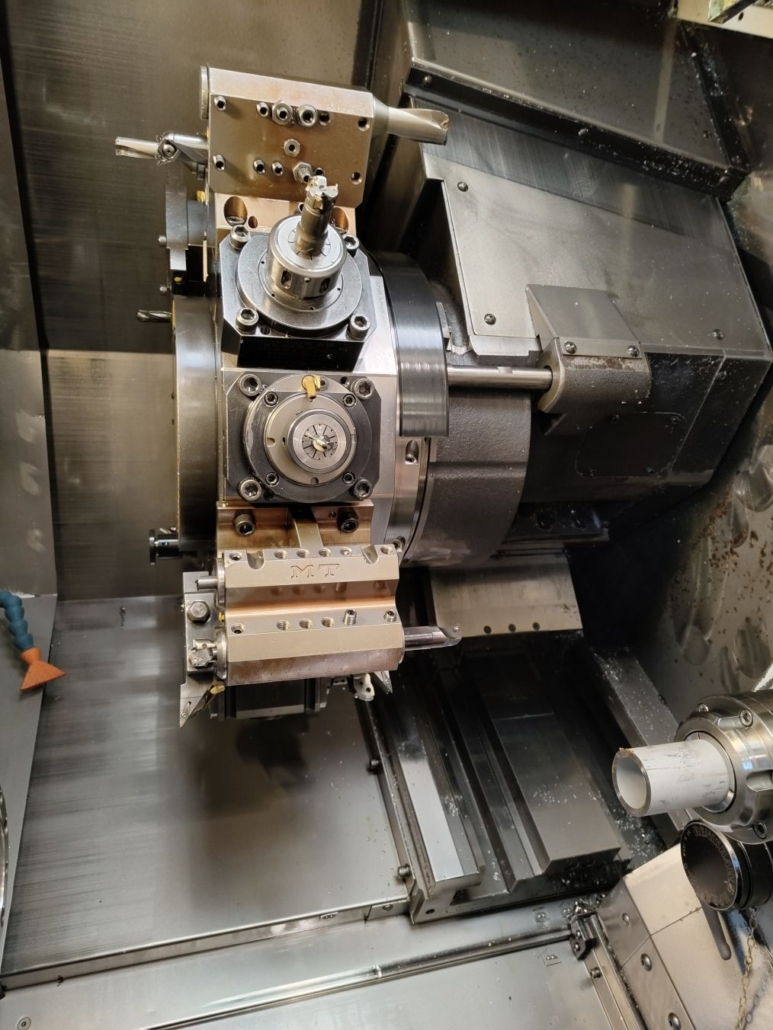

TURRET
– Number of positions : 12
– Number of motorized positions : 12
– X/Z stroke : 260 x 590 [mm]
– Y stroke : +/- 50 [mm]
– Live tools speed : 6.000 [rpm]
– Live tools power : 5,5 [kW]
POWER SUPPLY
– Supply voltage : 200 [V]
– Total installed power : 37 [kVA]
– Number of hours under power : 26790 [h]
– Number of working hours : 8.284 [h]
WEIGHT & DIMENSIONS
– Machine floor space : 3.495 x 2.050 [mm]
– Machine height : 2.22
