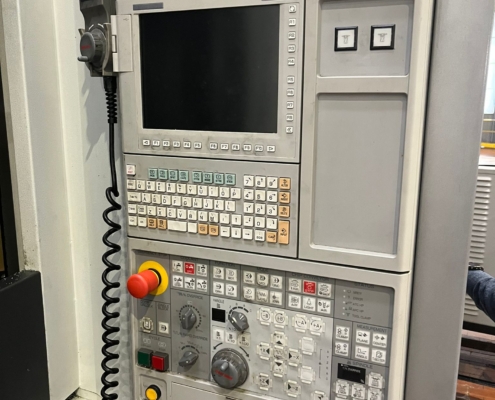

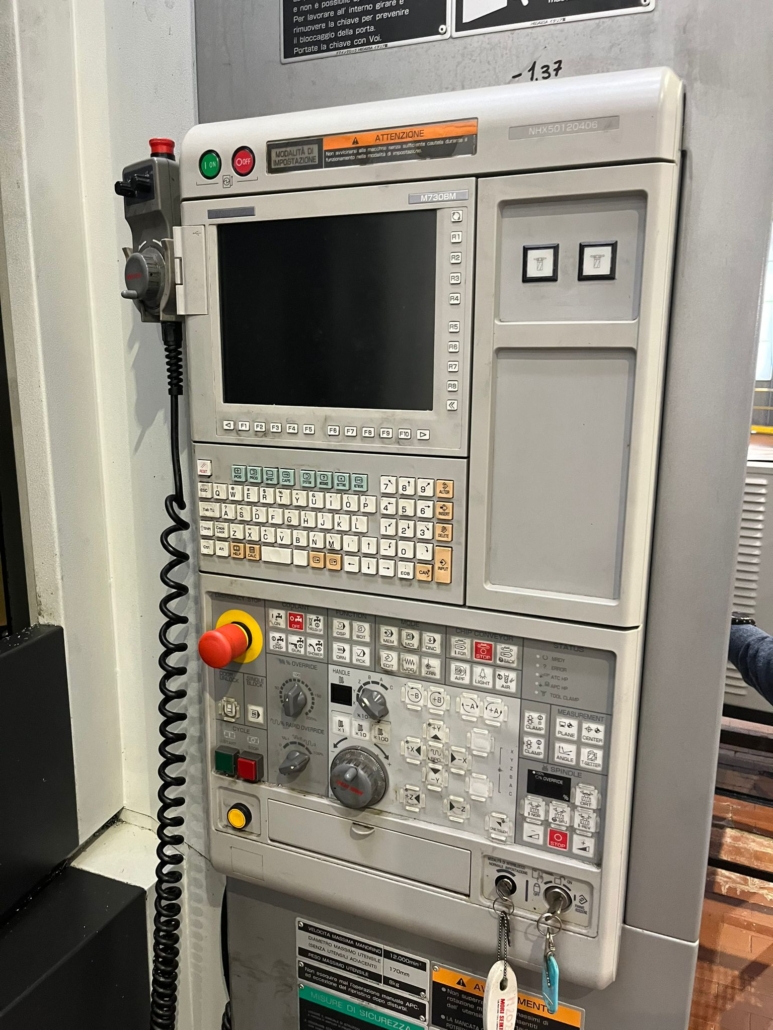

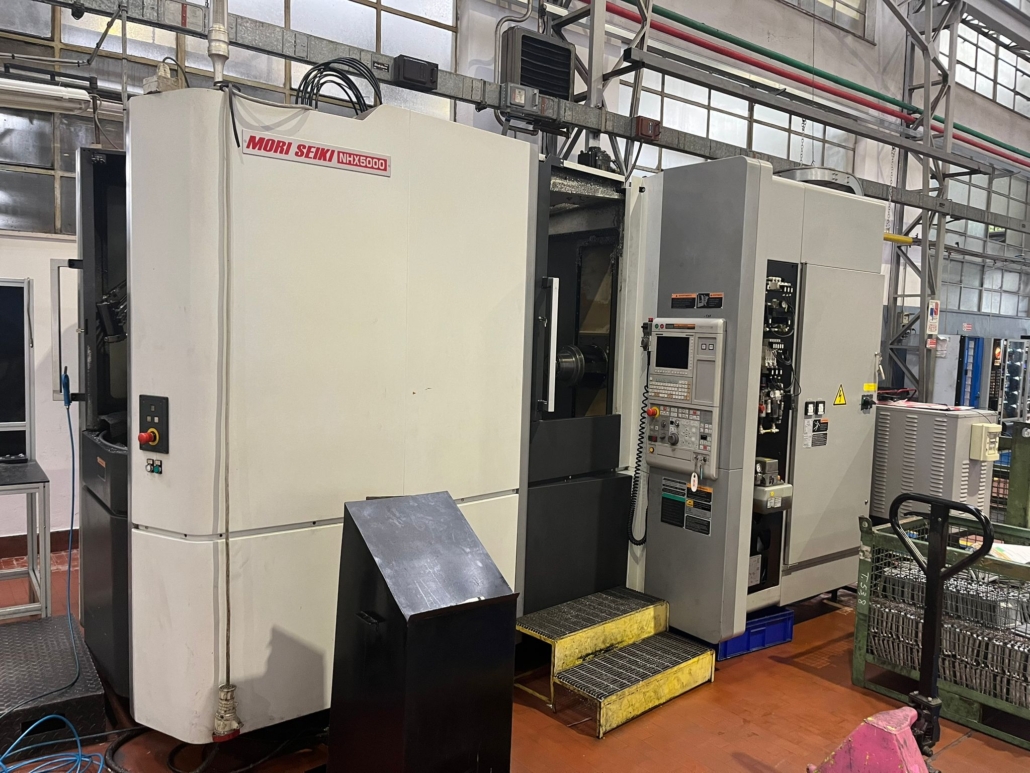

CNC: M730BM MAPPS IV

CHARACTERISTICS
– Number of axles: 4

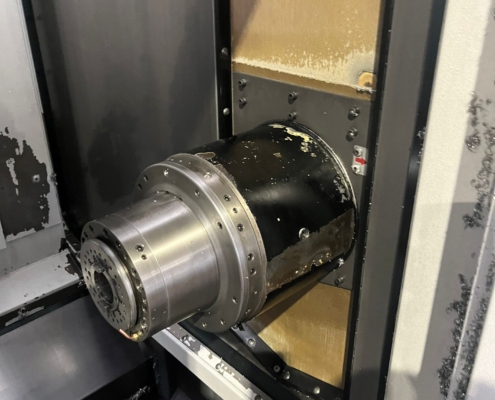

MILLING SPINDLE
– Tool holder type: BT40
– Max spindle speed: 12,000 [rpm]

LINEAR AXES
– X axis travel: 730 [mm]
– Y axis travel: 730 [mm]
– Z axis travel: 880 [mm]

B AXIS
– Stroke: 360 [°]
– Indexing accuracy: 0.001 [°]

TOOL CHANGE
– Automatic. Tool change type: chain
– Tool magazine capacity: 60 [positions]

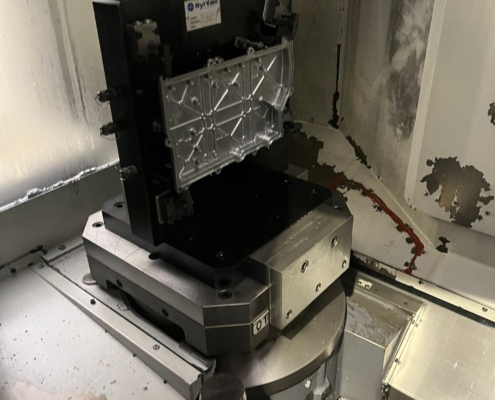

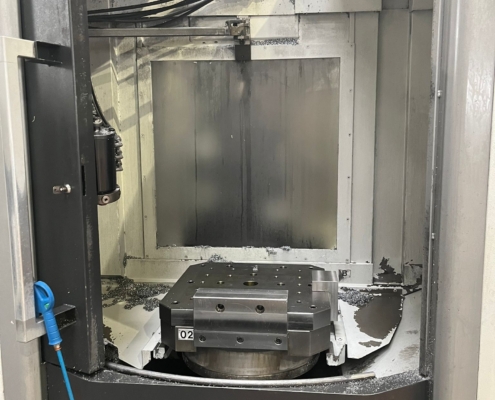

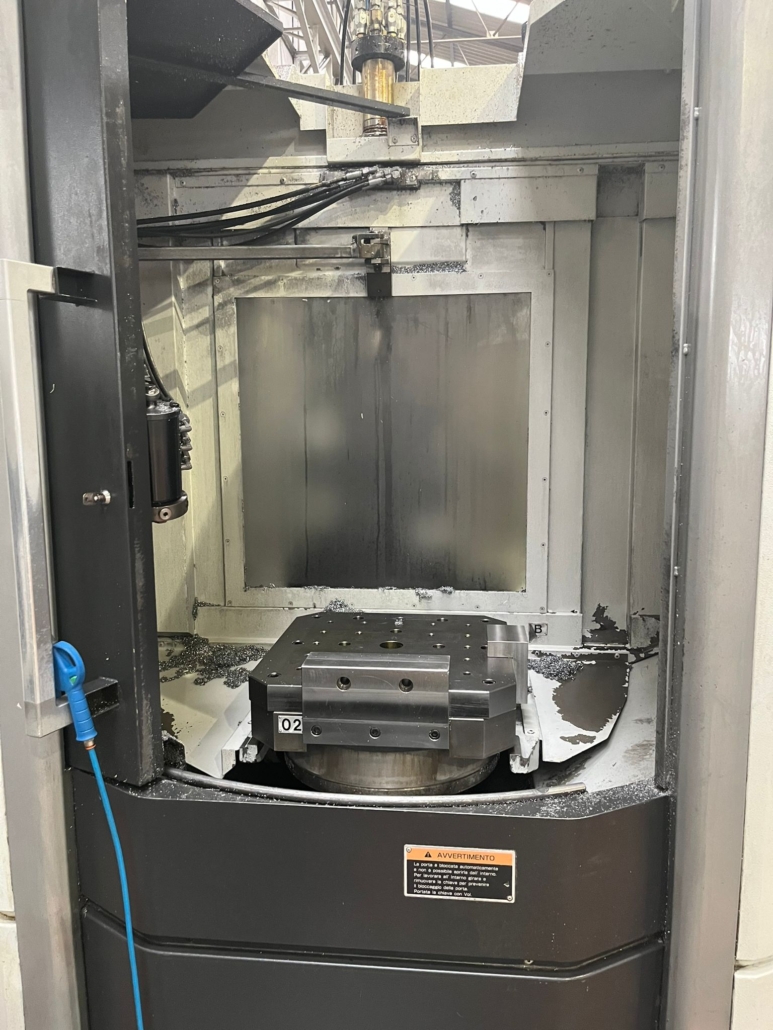

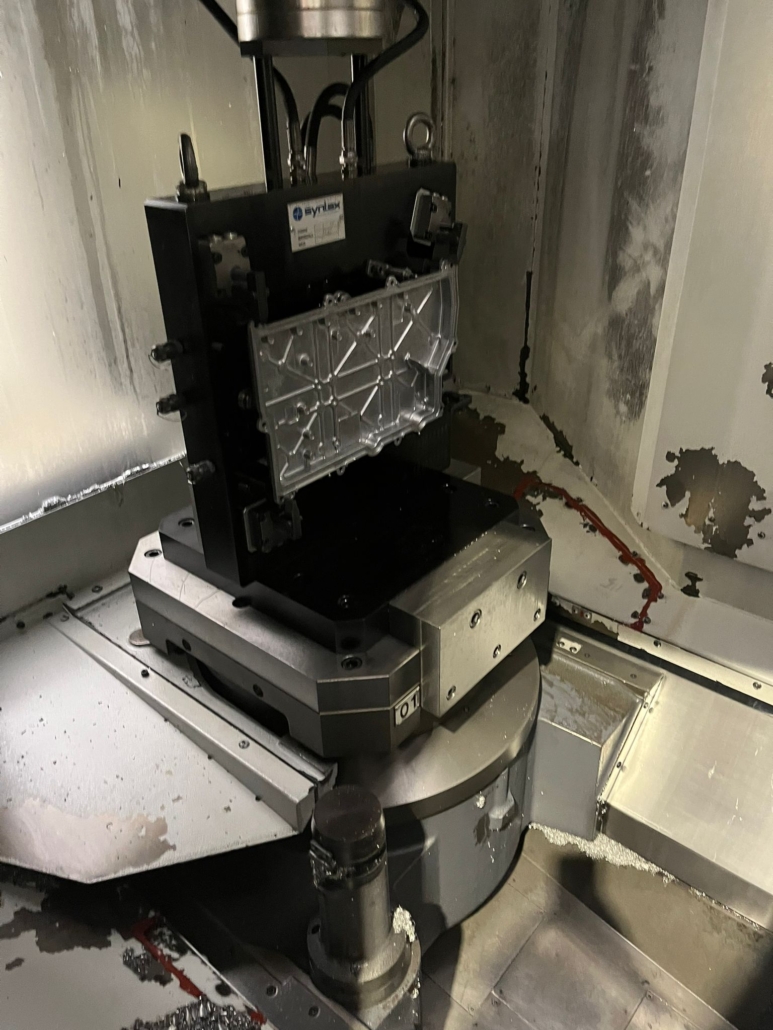

PALLET CHANGE
– Type of pallet change device: Rotopallet
– Pallet dimensions: 500 x 500 [mm]
– Number of pallets: 2
– Maximum weight on pallet: 500 [kg]
– Maximum workpiece diameter: 800 [mm]

POWER SUPPLY
– Supply voltage: 400 [V]

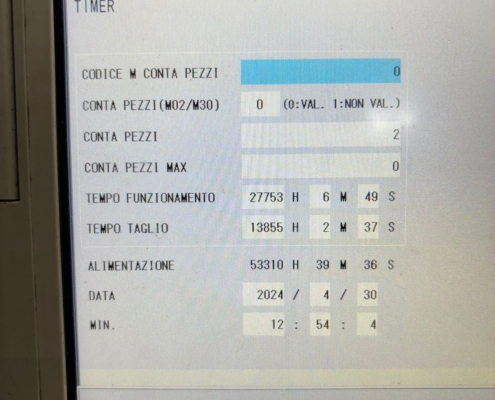

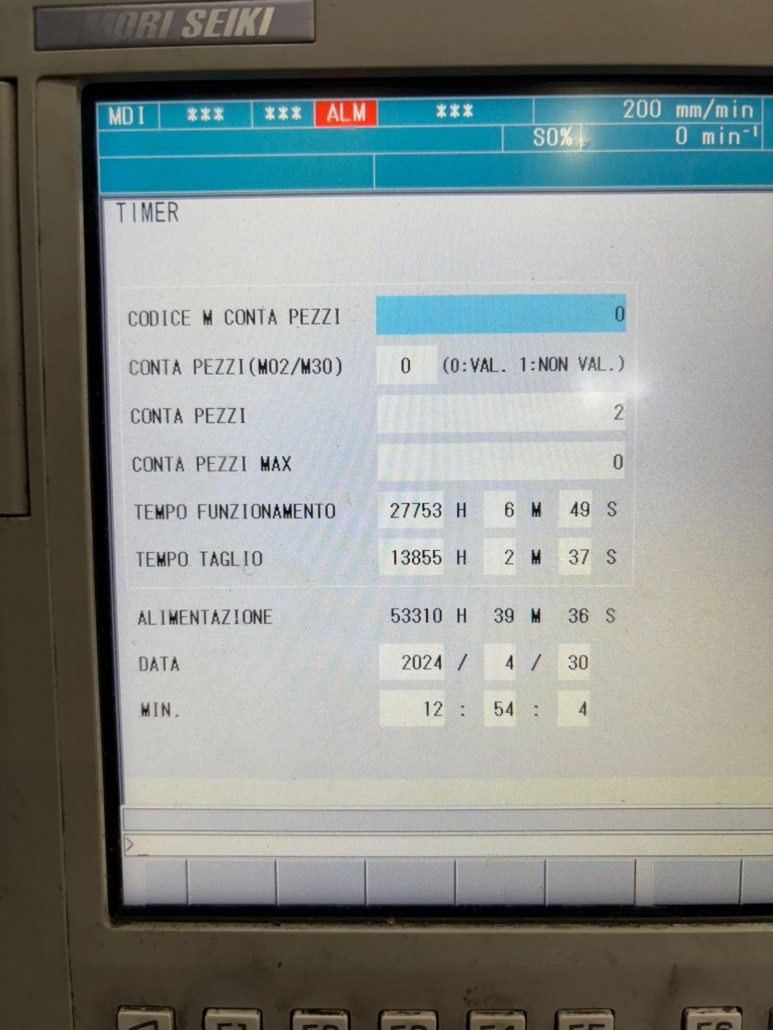

MACHINE HOURS
– Number of working hours: approximately 14,000 [h]

EQUIPMENT
– Interface: Ethernet/RS232/USB/PCMCIA
– Electronic handwheel
– Linear scales
– Rigid tapping
– 3-color status lamp
– Coolant system through the spindle

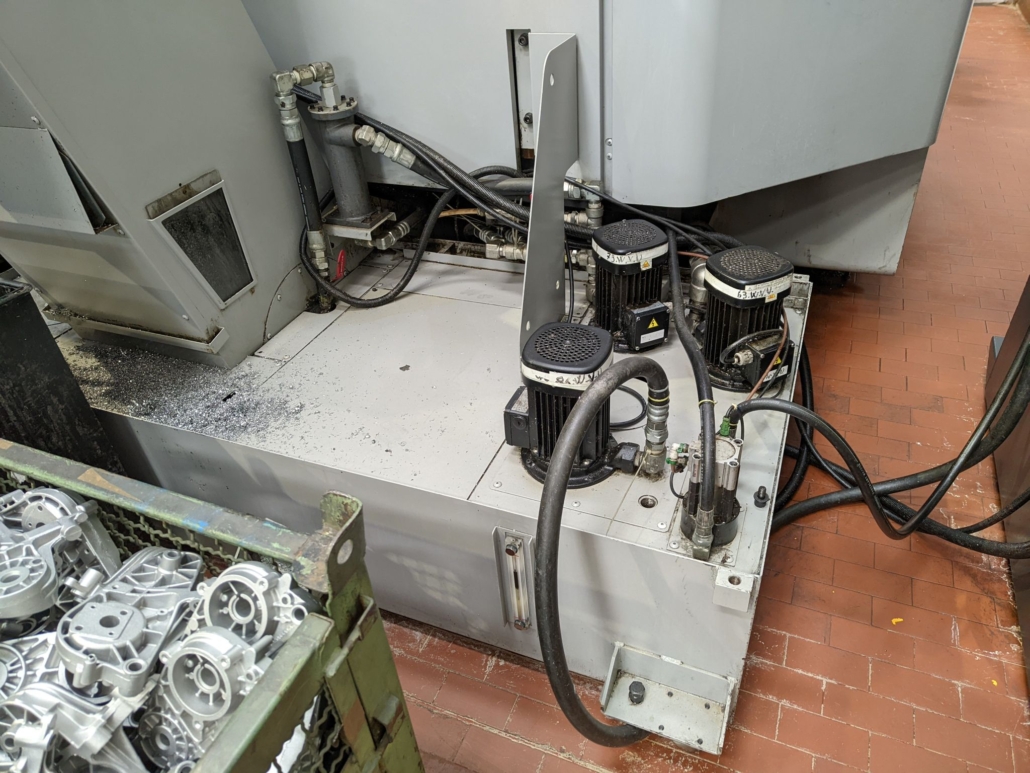

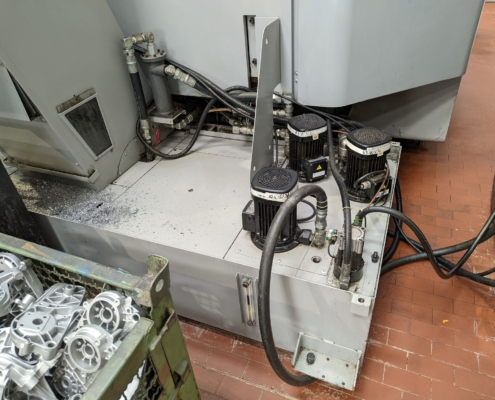

– Separate control unit with 17l / 25 bar high pressure pump
– Integrated measuring system with Renishaw probe
– Manual handwheel

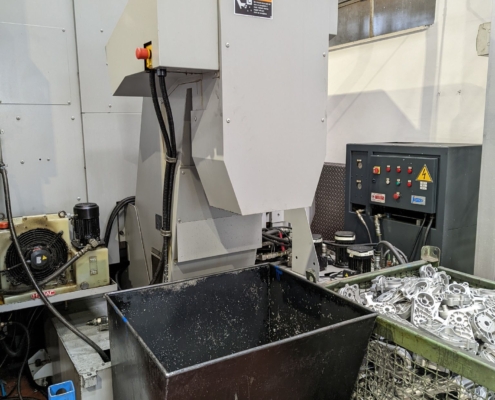

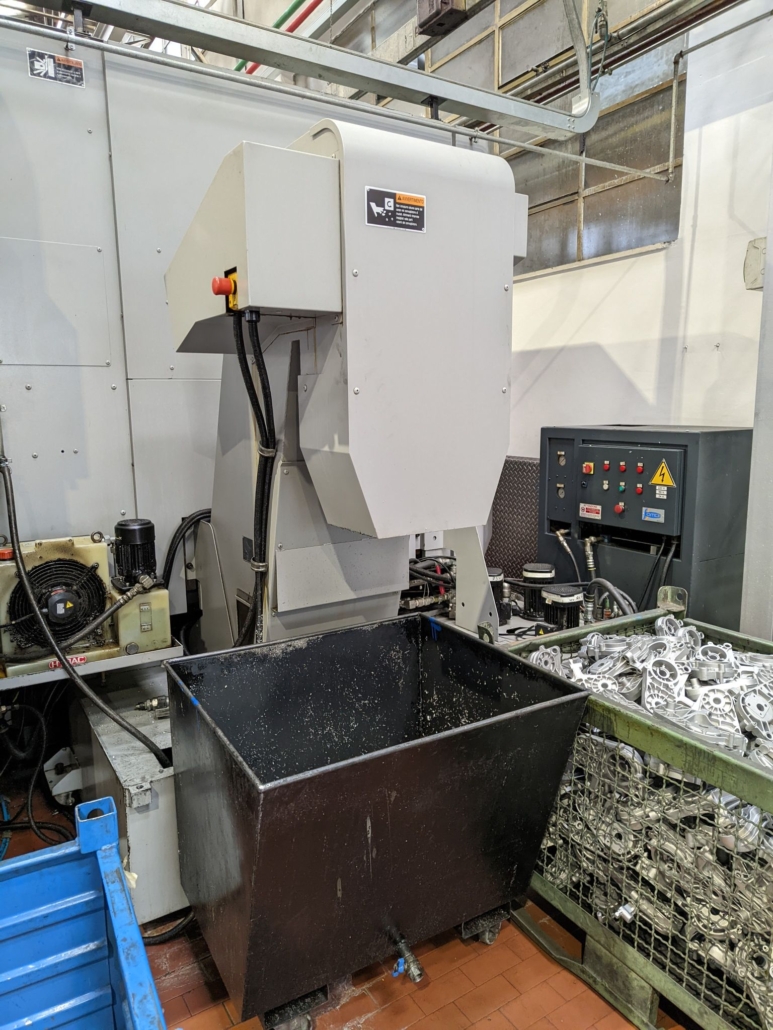

– Scraping chip conveyor with rotofilter
– Power system for locking/unlocking hydraulic equipment
– Robot interface

Data subject to possible revisions, not binding
