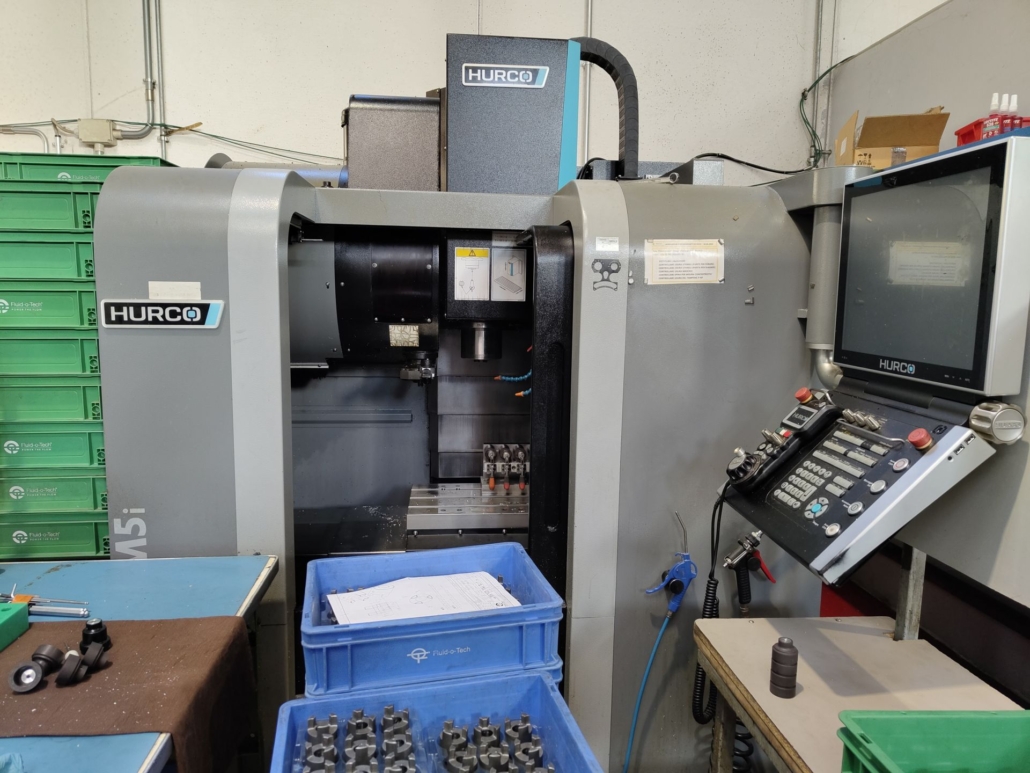

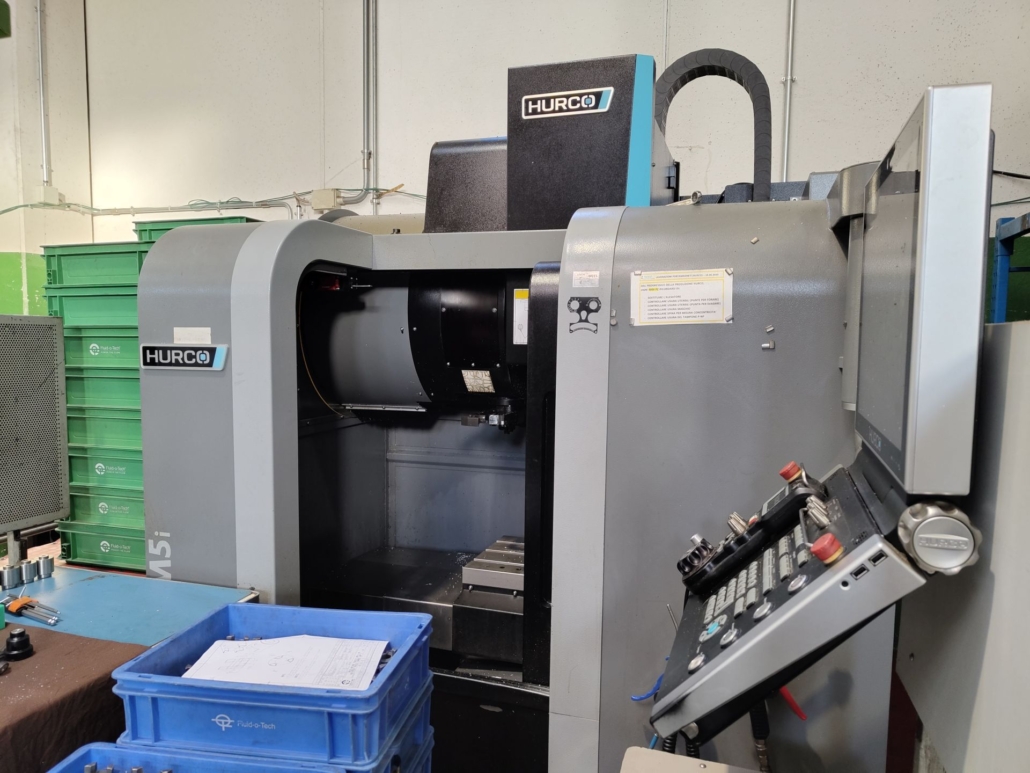

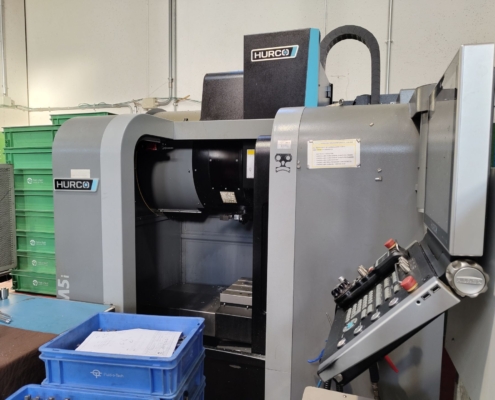

Vertical Machining Center HURCO VM5i
TYPE: 3 axis CNC vertical machining center
BRAND: HURCO
MODEL: VM5i
YEAR: 2016
Used 3 axis verticalal machining center HURCO VM5i, ideal for quick operations, CNC extremely versatile. Excellent conditions, YoM 2016.
TECHNICAL SPECIFICATIONS
HURCO VM5i WORKING CENTER
Year 2016
Manufacturer HURCO COMPANIES INC.
VM5i model

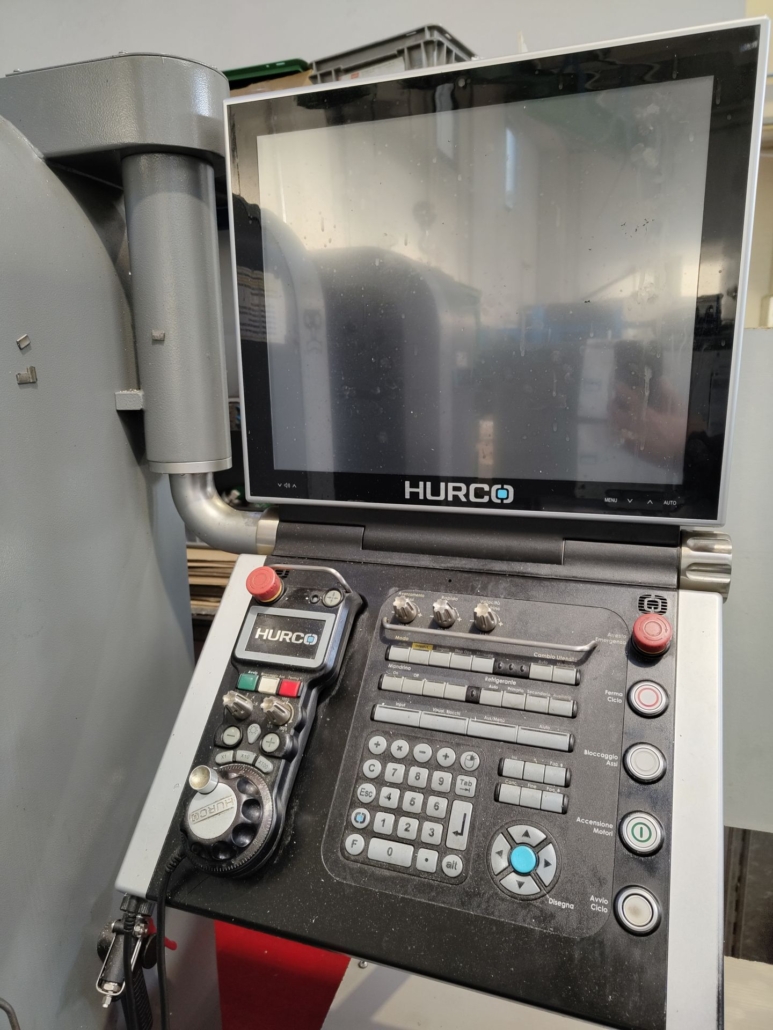

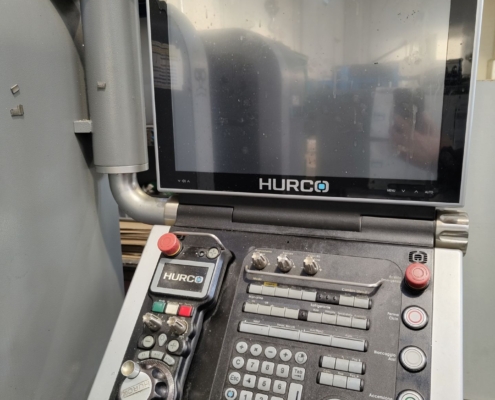

HURCO control
Characteristics
Capacity
X, Y, Z axis travel 457 x 356 x 356 mm
T-slot dimensions 3 x 18 mm

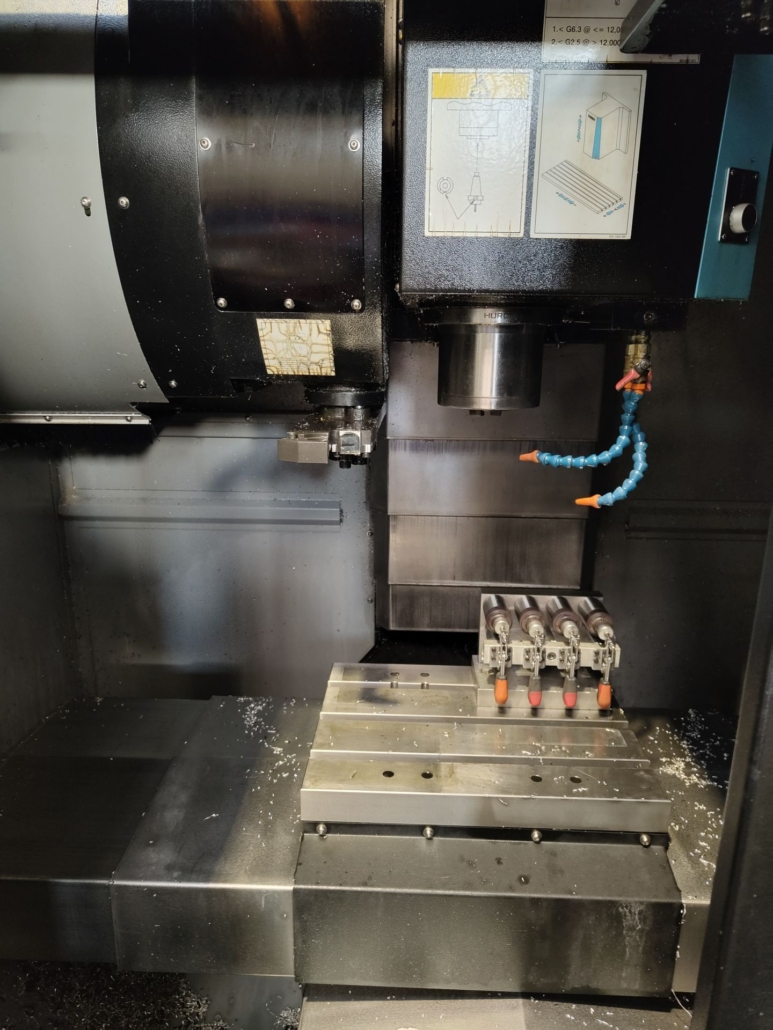

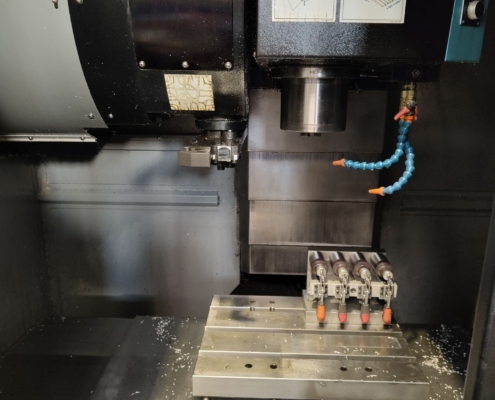

Table dimensions 457 x 356 mm
Maximum weight on the table 250 kg
Spindle nose-table distance 101.6 mm
Spindle
Max. Spindle speed rpm 8000
Peak spindle power 1 min 7.5 kW 1,450 rpm
Peak spindle torque 1 min 48.8 Nm 1,450 rpm
Tool changer
Tool type CAT 40
Number of tools 16
Maximum tool diameter 90 mm
Maximum tool length 200 mm
Maximum tool weight 7 kg
Advancement speed
Rapid X, Y, Z axes m/min 19/19/19
Max. feed speed programmable m/min 19
Dimensions
Maximum operating space 1,633.2 x 2,903.2 mm
Machine height 2,390.1 mm
Machine weight 2,636 kg
Machine equipped with manual and CE declaration of conformity.
Data subject to possible changes, not binding
