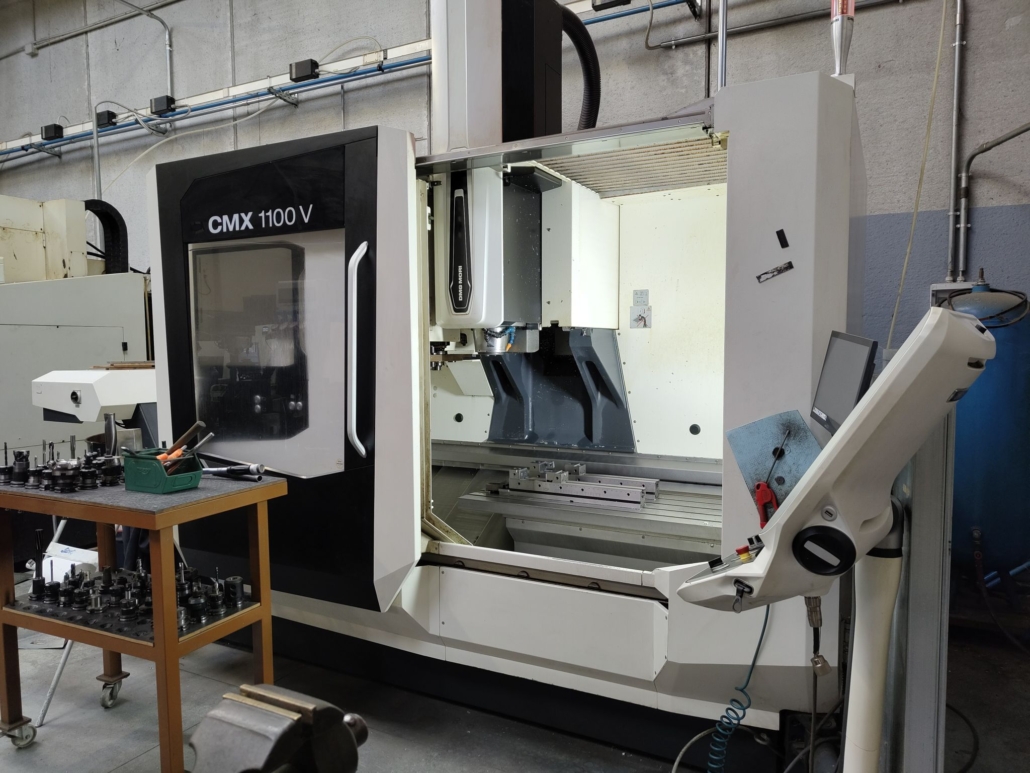

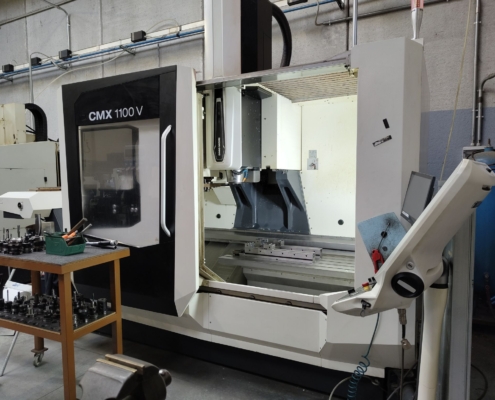

DMG MORI CMX 1100 V

TYPE: 3 axis CNC vertical machining center
BRAND: DMG MORI
MODEL: CMX 1100 V
YEAR: 2018

Used 3 axis vertical machining center DMG MORI CMX 1100 V, 12.000 rpm, high pressure pump system. Excellent conditions, YoM 2004, 3158 working hours.

TECHNICAL SPECIFICATIONS

DMG MORI CMX 1100V
Year 2018

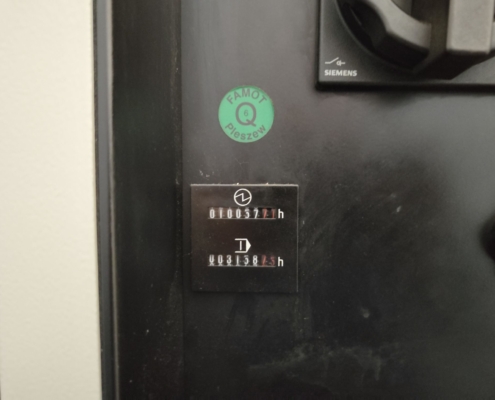

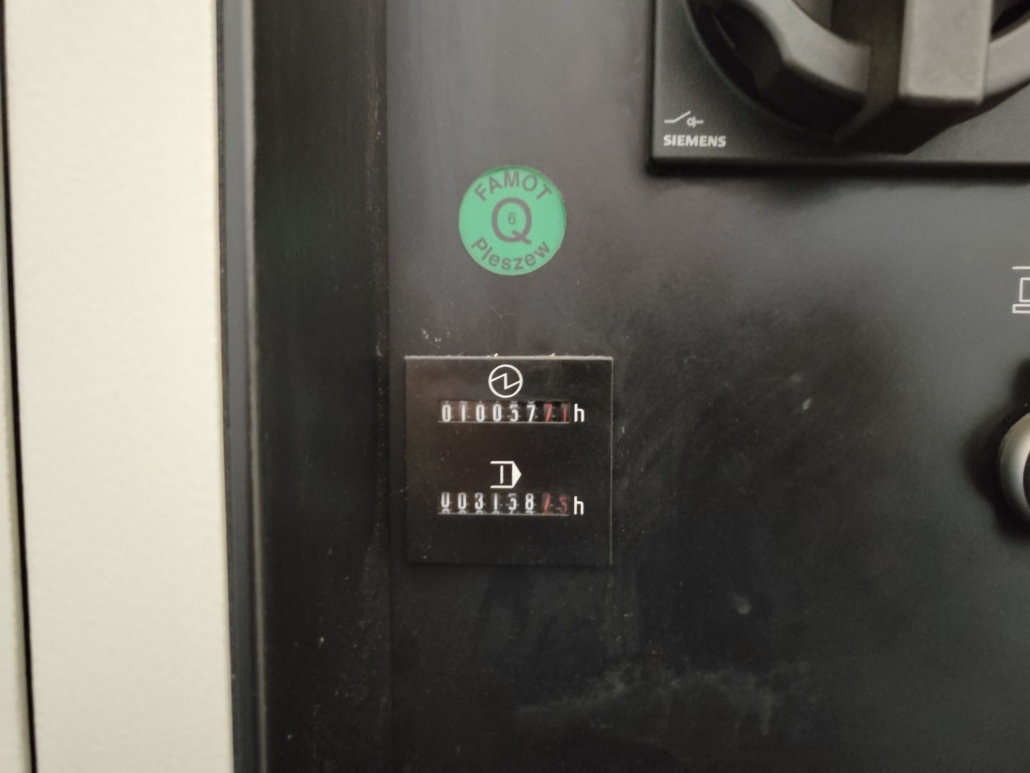

Working hours 3158

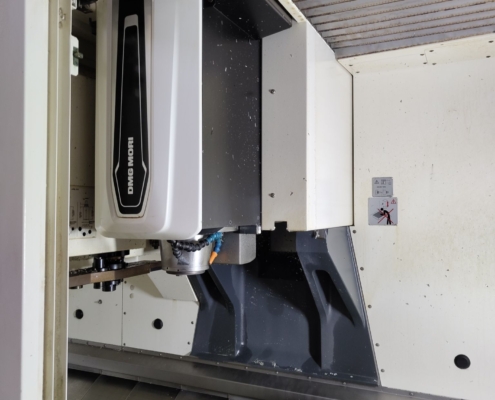

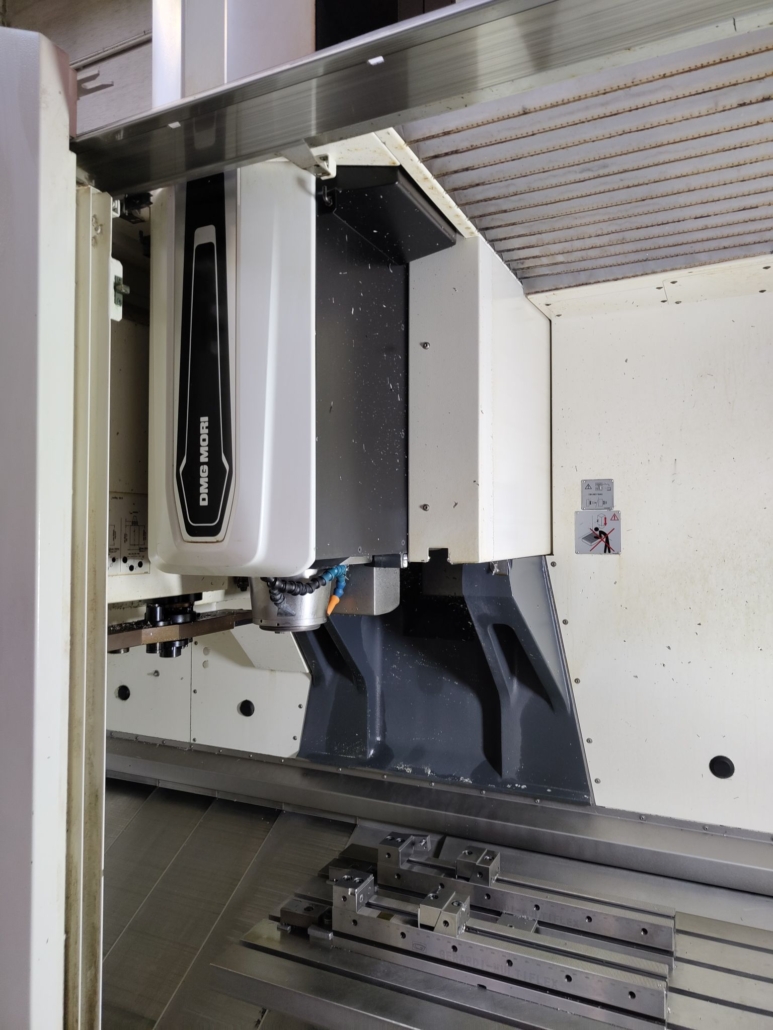

Spindle
Spindle speed range 12000 rpm ISO 40
Spindle motor power 13 kW
Number of axis 3

Movement
X-Axis Movement 1100 mm
Y-Axis Movement 560 mm
Z-Axis Movement 510 mm

Table
Number of T-slots 5
Distance between 100 mm
Table load 1000 kg

Tools
Automatic Tool Changer 30 positions
Max weight 8 kg
Max tool diameter 80 mm
Max tool length 300 mm

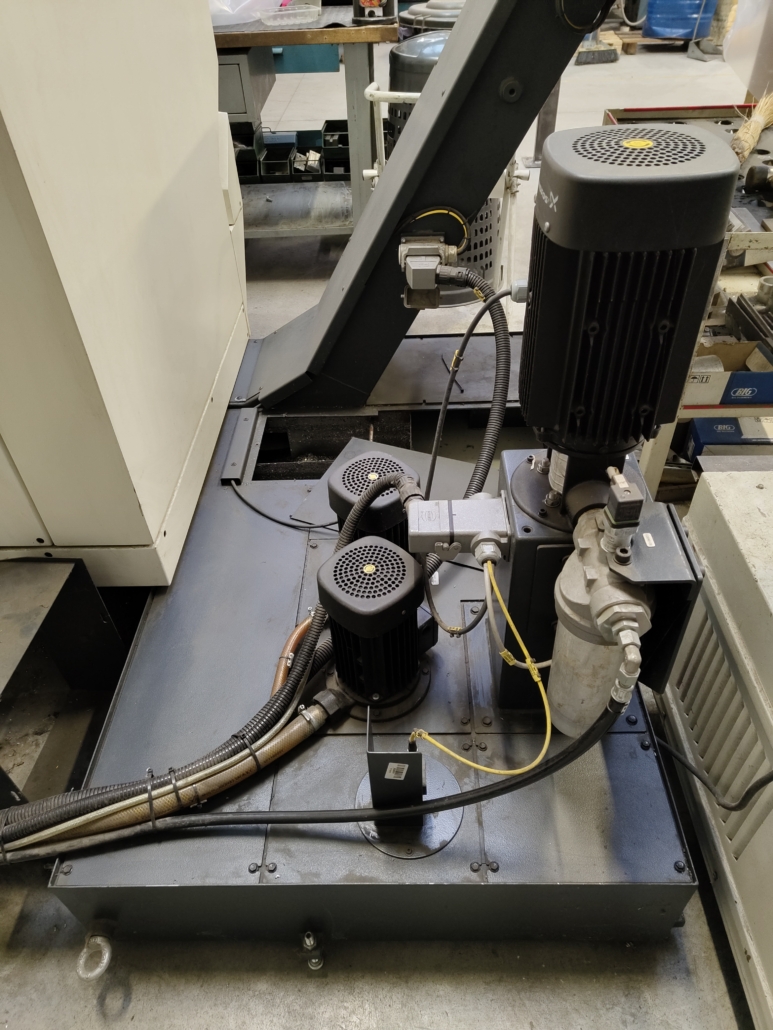

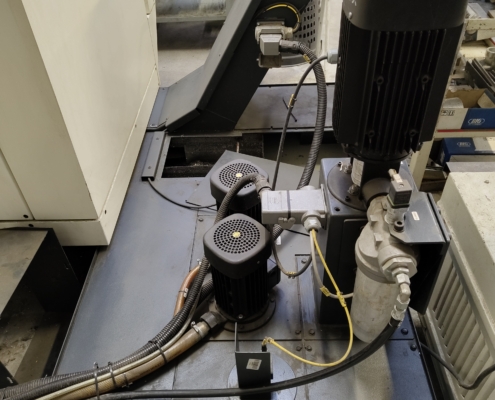

High pressure pump system
Chip conveyor
Electronic handwheel

Data subject to possible revision, not binding
