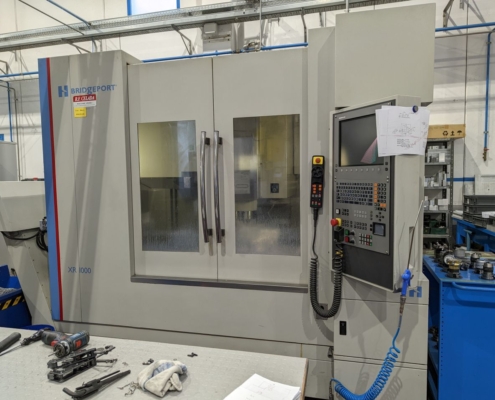

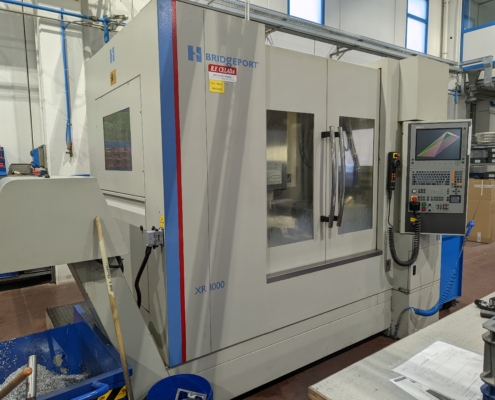

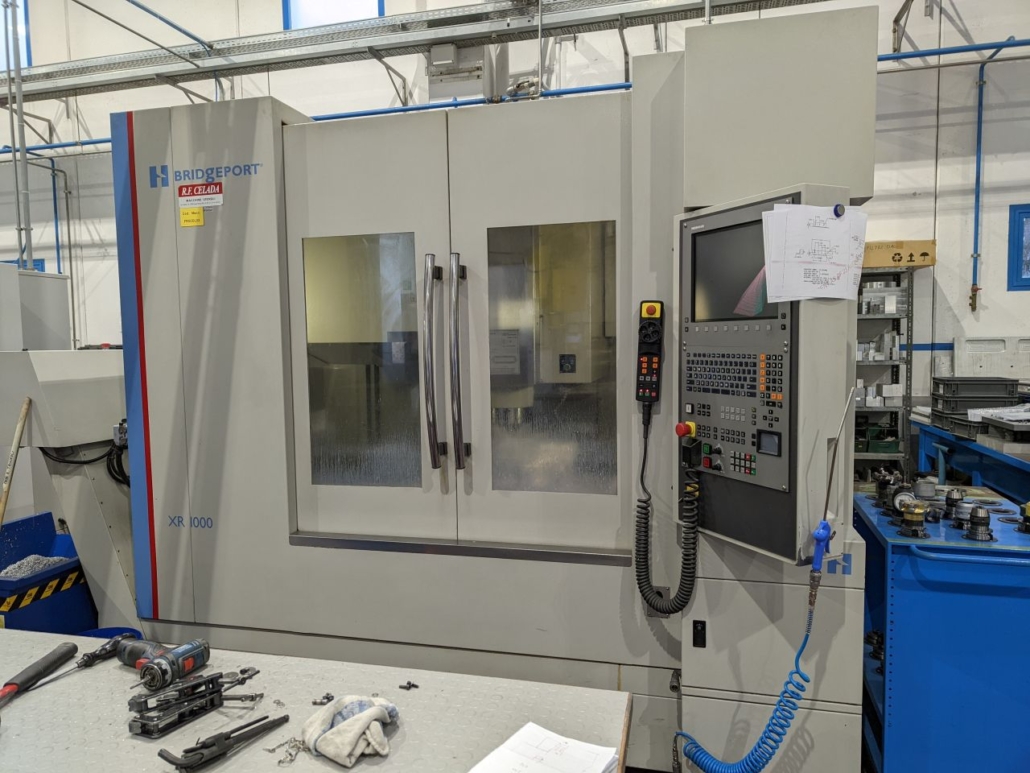

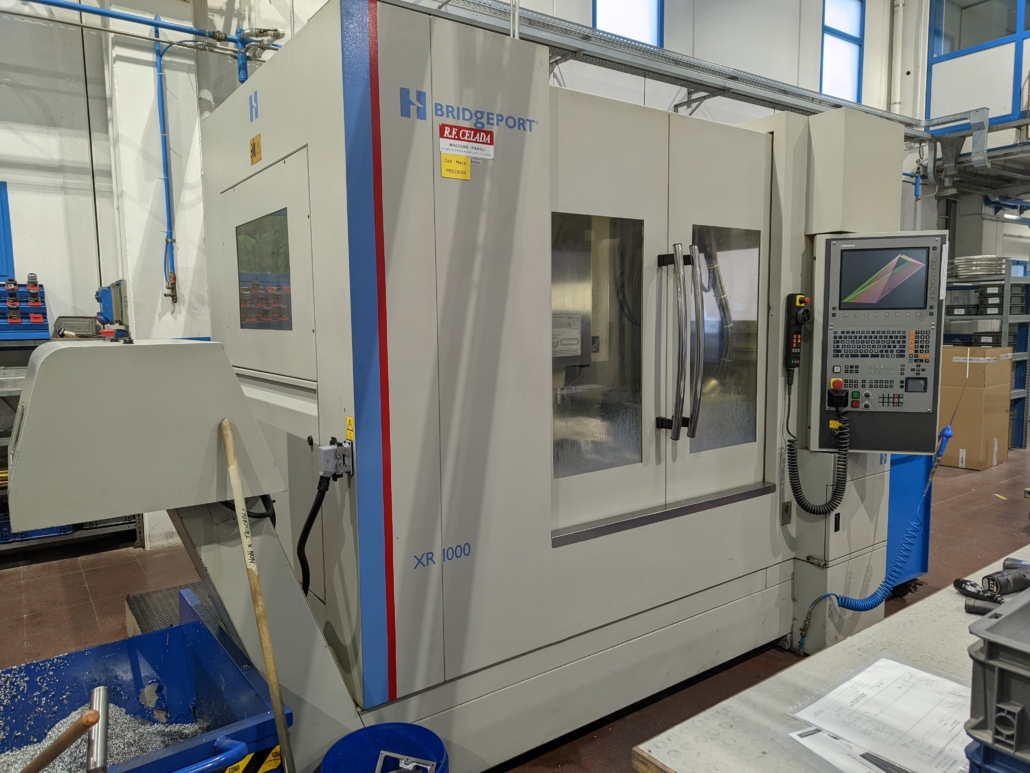

Vertical machining center BRIDGEPORT XR 1000
TYPE CNC vertical machining center
MAKE BRIDGEPORT
MODEL XR 1000
YEAR 2008
Used vertical machining center BRIDGEPORT XR 1000, equipped with 4 and 5 axis table, Heidenhain iTNC 530. Excellent condition, year 2008.
TECHNICAL SPECIFICATIONS
Year 2008

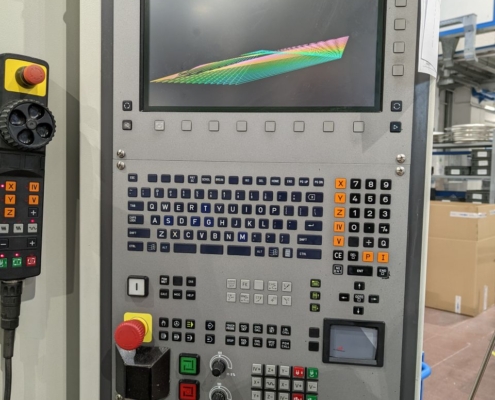

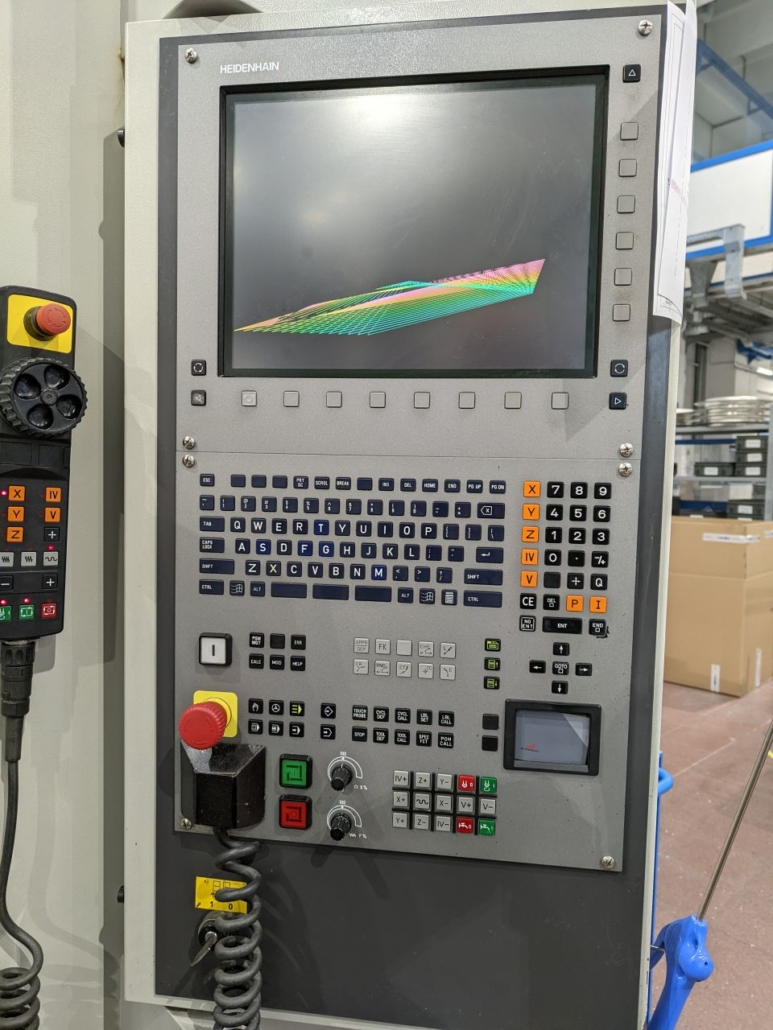

HEINDENHAIN iTNC 530 numerical control
Strokes
X axis stroke 1,020 mm
Y axis stroke 610 mm
Z axis stroke 610 mm

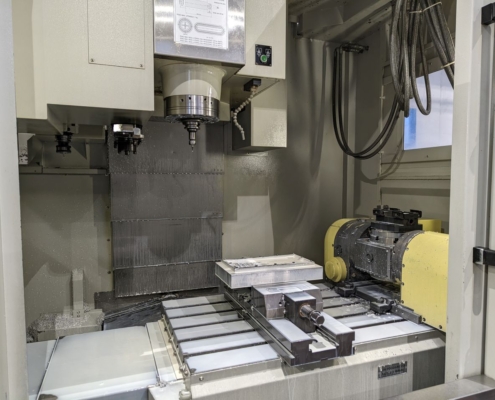

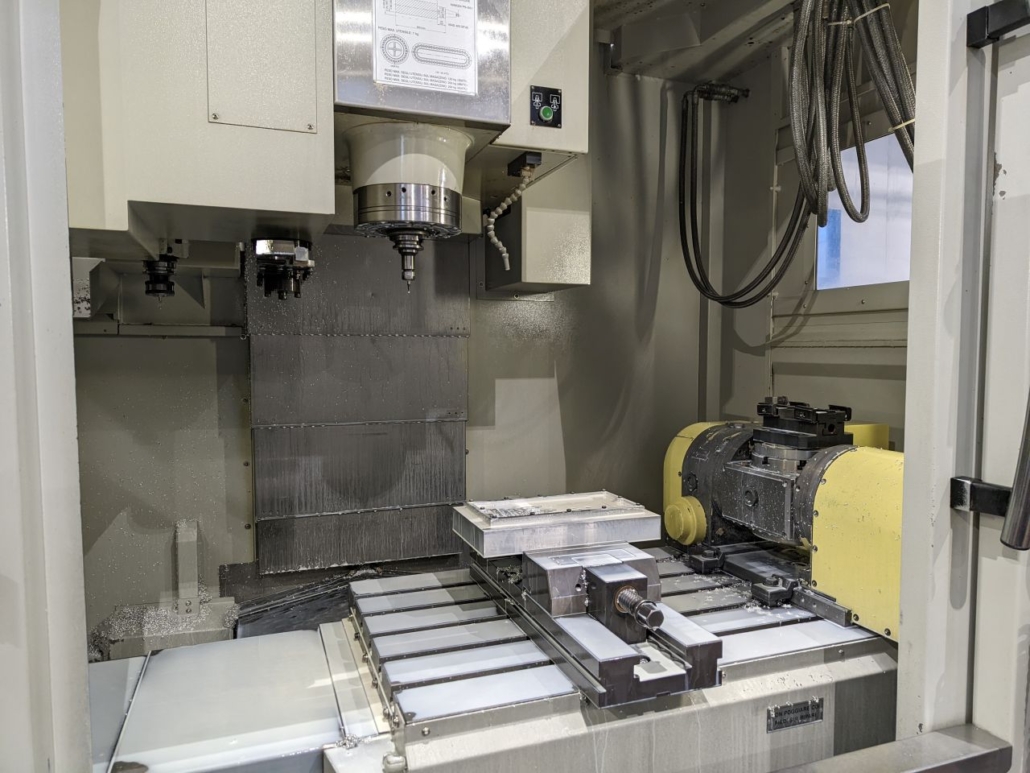

Working area
Table size 1,200×600 mm
Maximum workpiece weight 900 kg

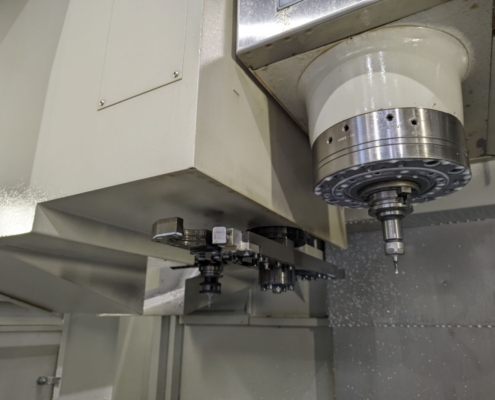

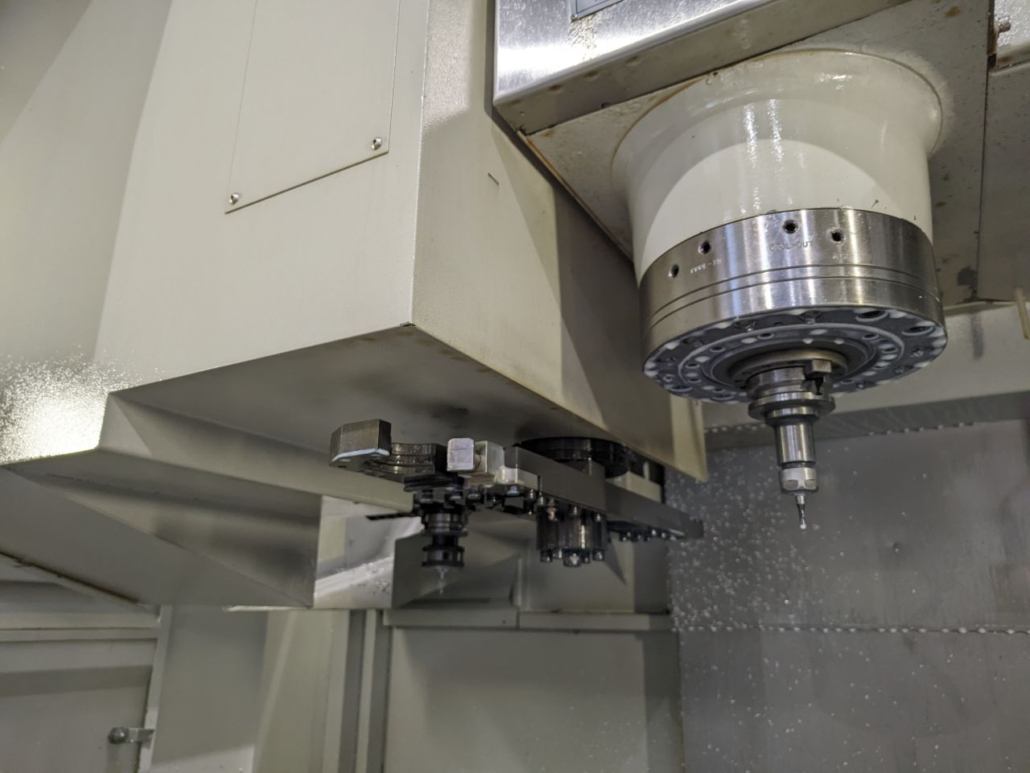

Spindle
Spindle rotation speed 12,000 rpm
Tool warehouse
BT-40 tool holder
Tool magazine positions 30
Maximum tool diameter 125 mm
Maximum tool length 300 mm
Maximum tool weight 8 kg
Tool change time s 4
Tool change time, from chip to chip s 6
Equipment

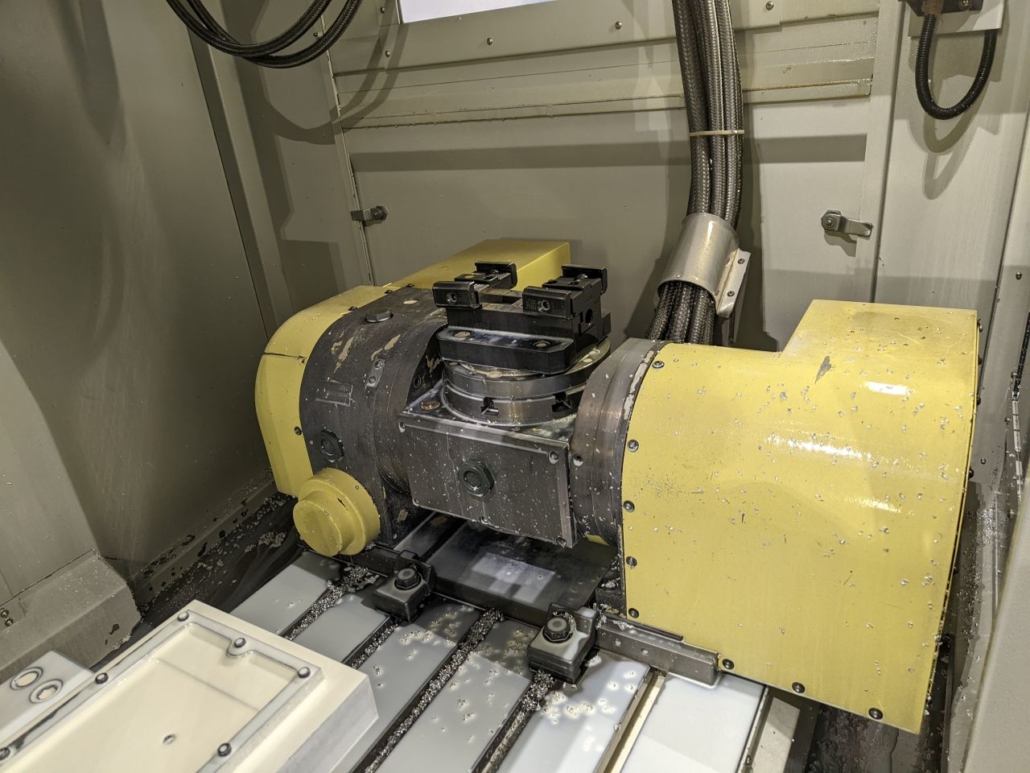

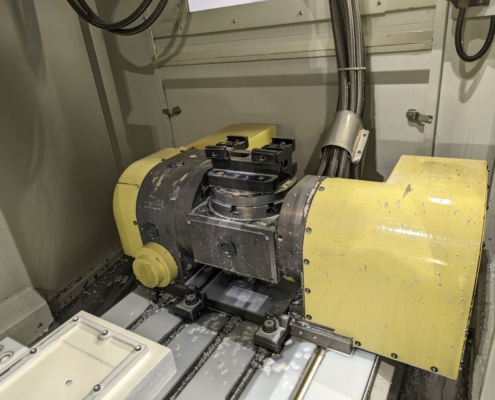

4th and 5th axis table
Chip conveyor
Contact probe RENISHAW OMP 40-2
Tool breakage probe
Internal cooling
high pressure pump
Data subject to possible revisions, not binding
