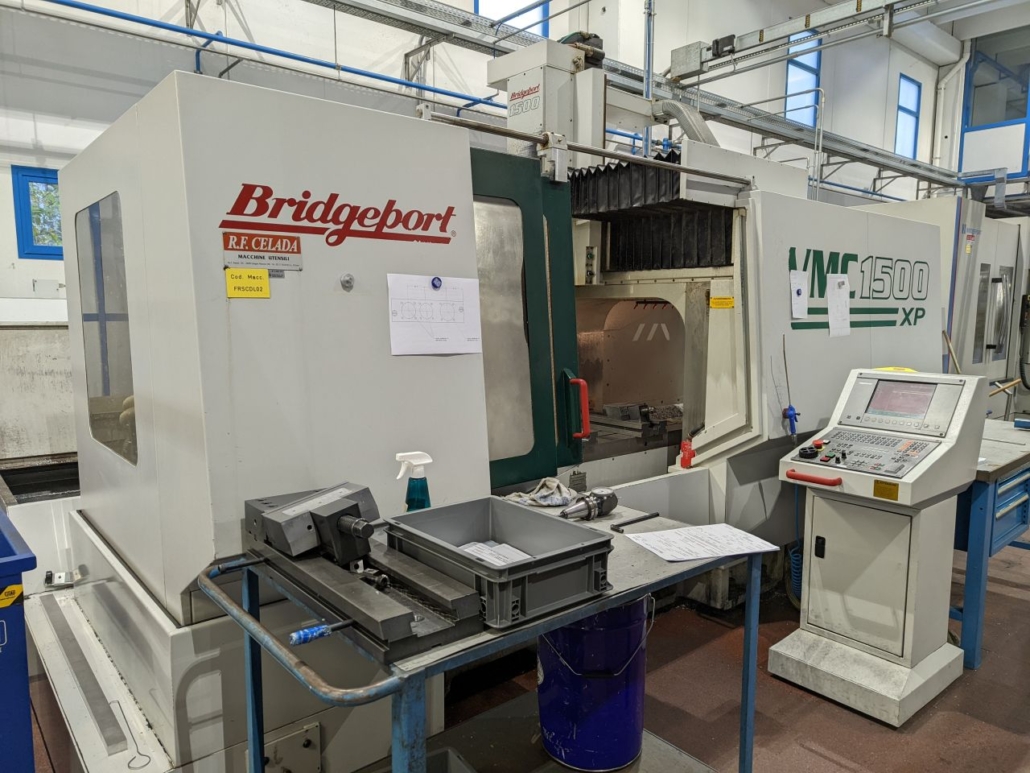

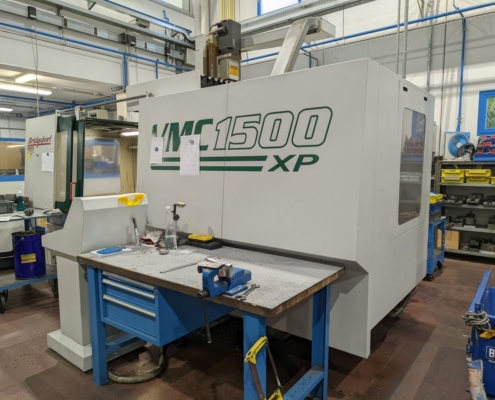

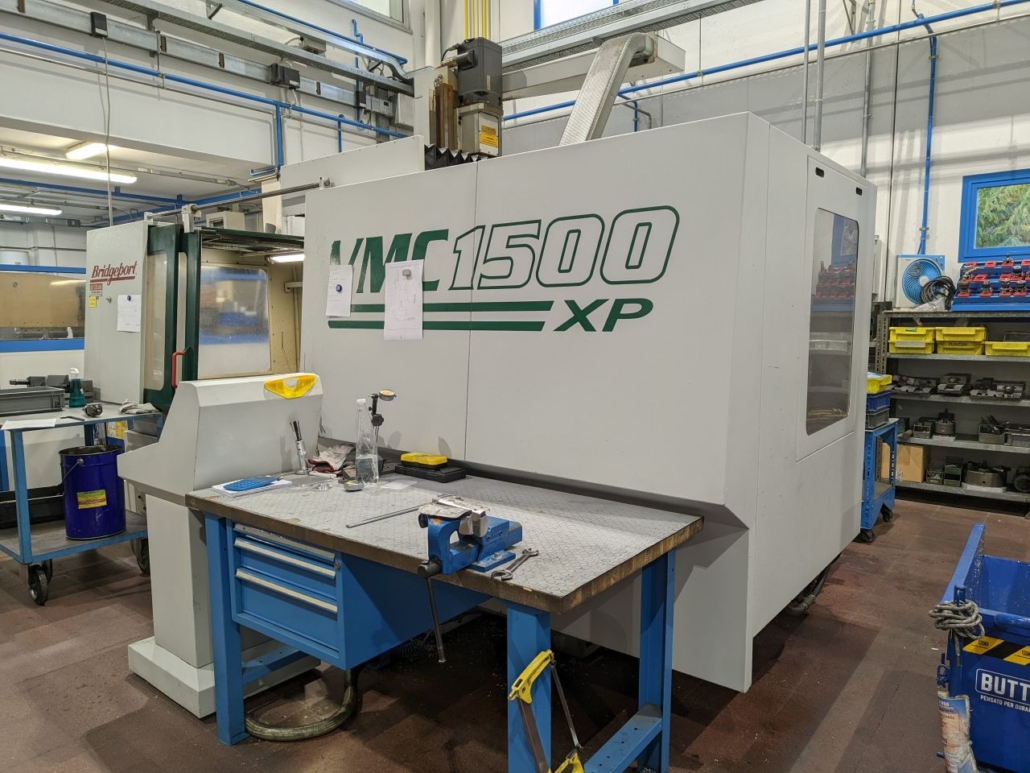

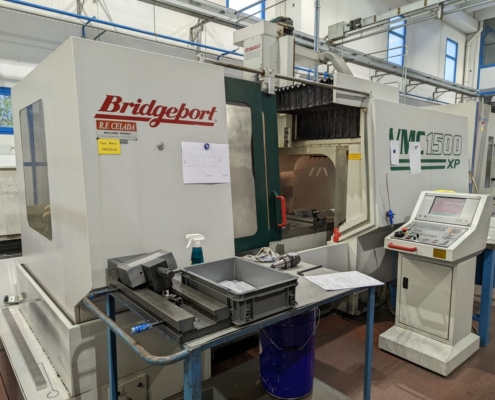

BRIDGEPORT VMC 1500

Vertical Machining Center BRIDGEPORT VMC 1500

TYPE: Vertical machining center
BRAND: BRIDGEPORT
MODEL: VMC 1500
YEAR: 2001

High-speed vertical machining center, gantry structure for increased rigidity, high pressure, through-spindle coolant, chip conveyor, Heidenhain TNC 426 CNC, 22-position tool changer. Newly overhauled spindle! Excellent conditions, immediate availability, year 2001.

TECHNICAL SPECIFICATIONS

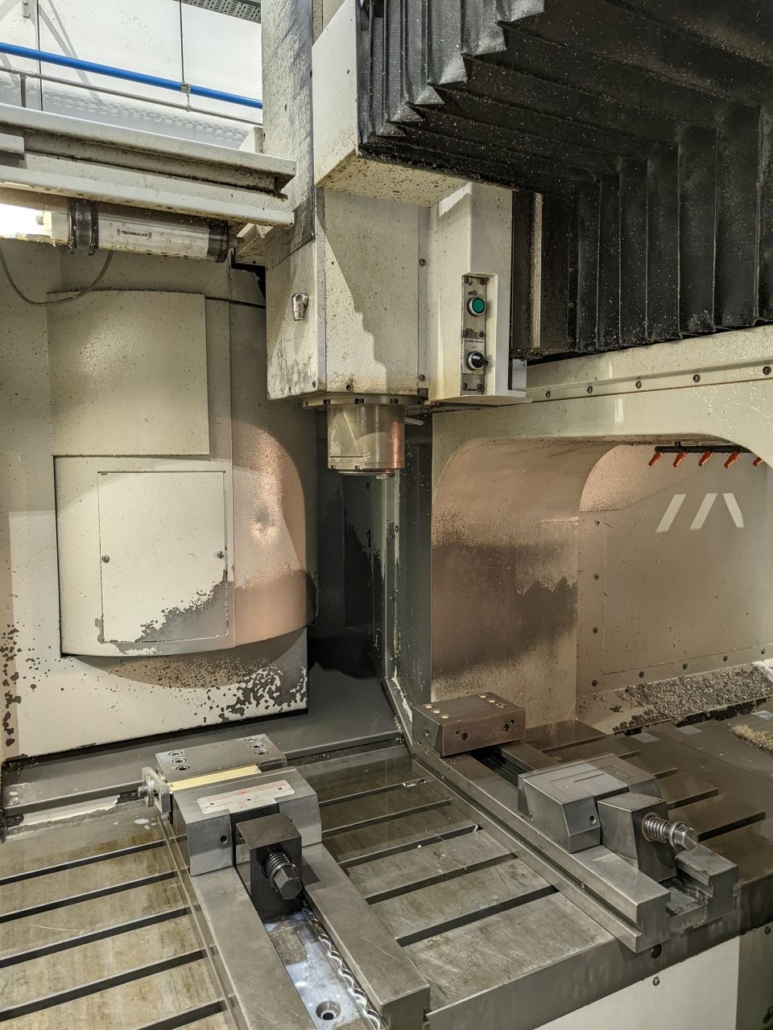

Highly rigid bridge structure

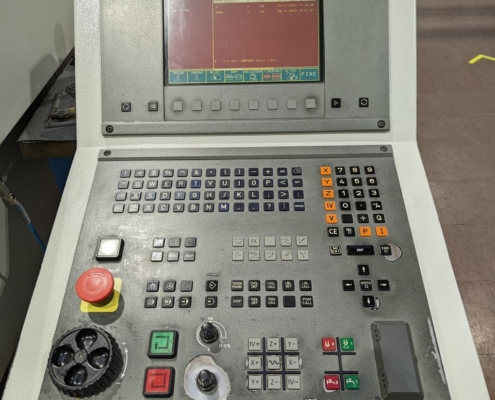

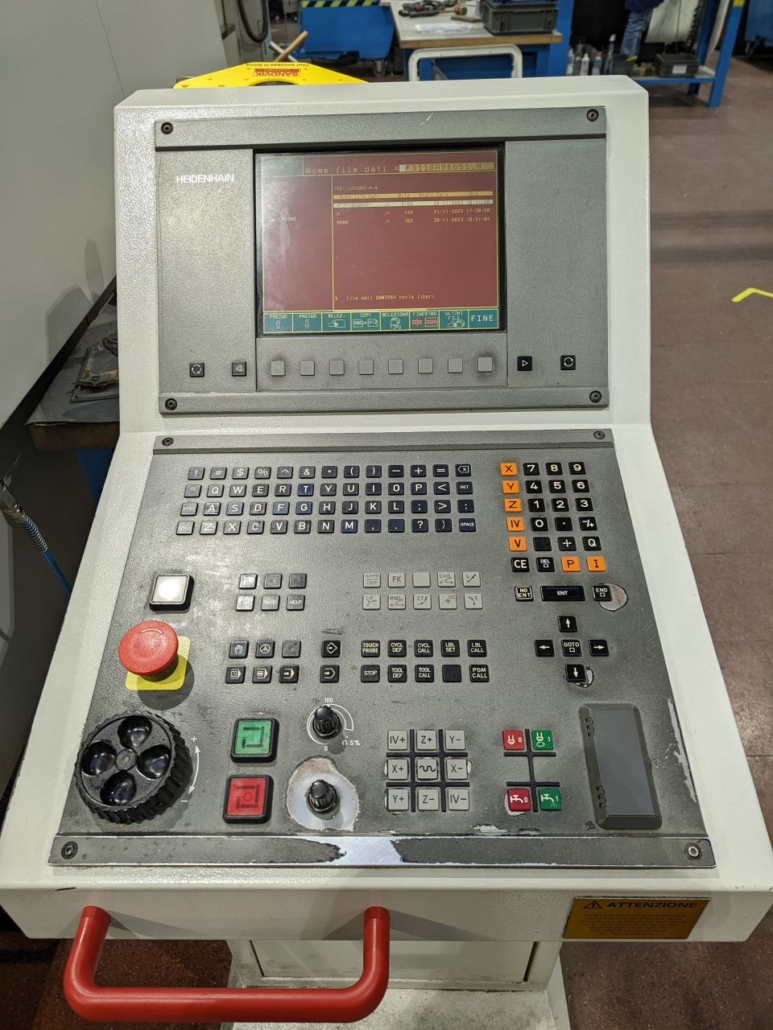

CNC Heidenhain 426
Strokes
X axis 1500 mm
Y axis 800 mm
Z axis 500mm
Rapid X/Y/Z 28/28/20 m/min

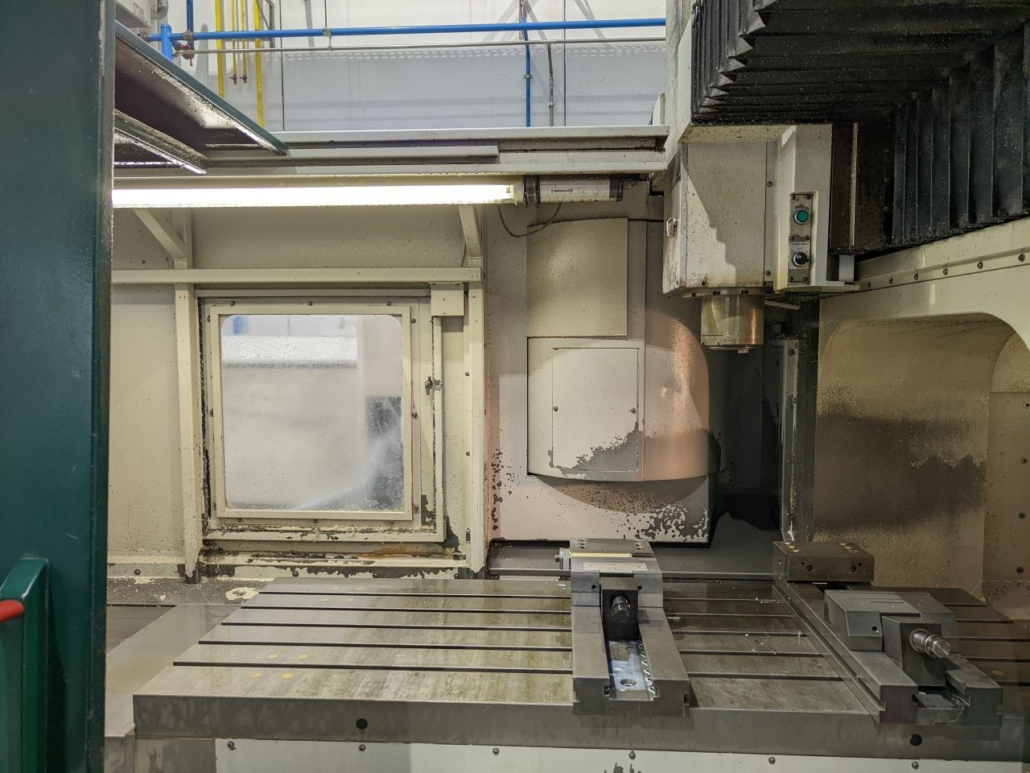

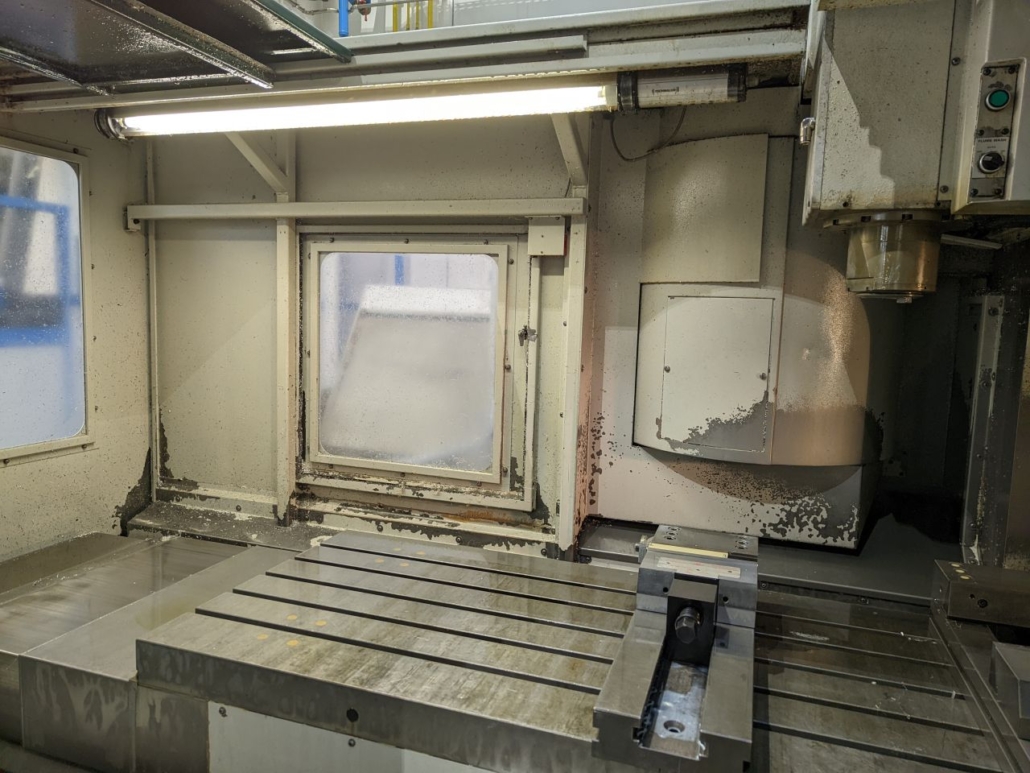

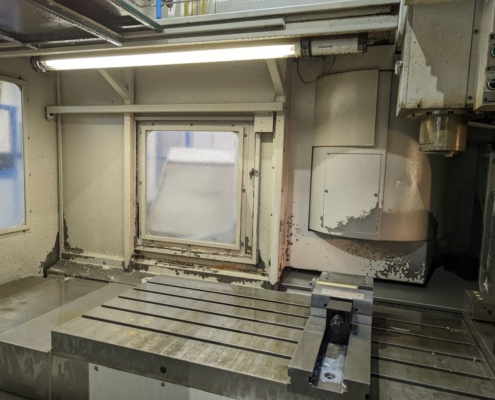

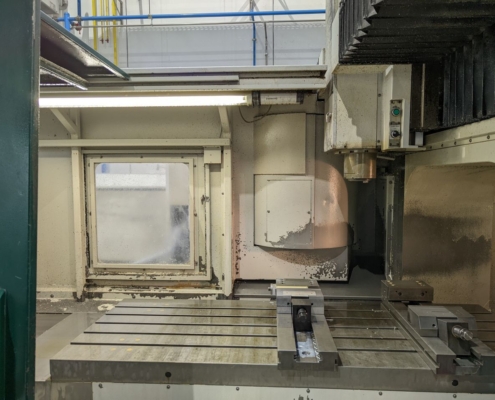

Table dimensions 1800 x 650 mm
Spindle speed 40 – 15000 rpm
Spindle power 13.5 kW
Max torque 117 Nm
BT40 spindle attachment
Tool magazine 22 positions

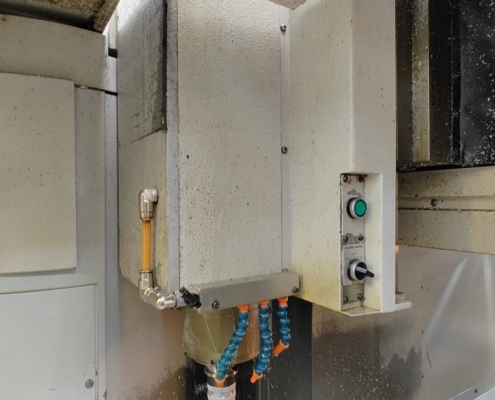

High pressure through the spindle
Rigid tapping

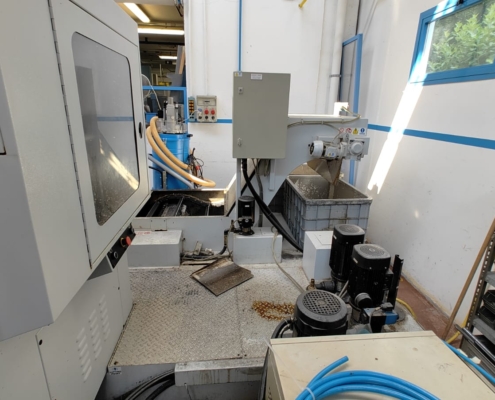

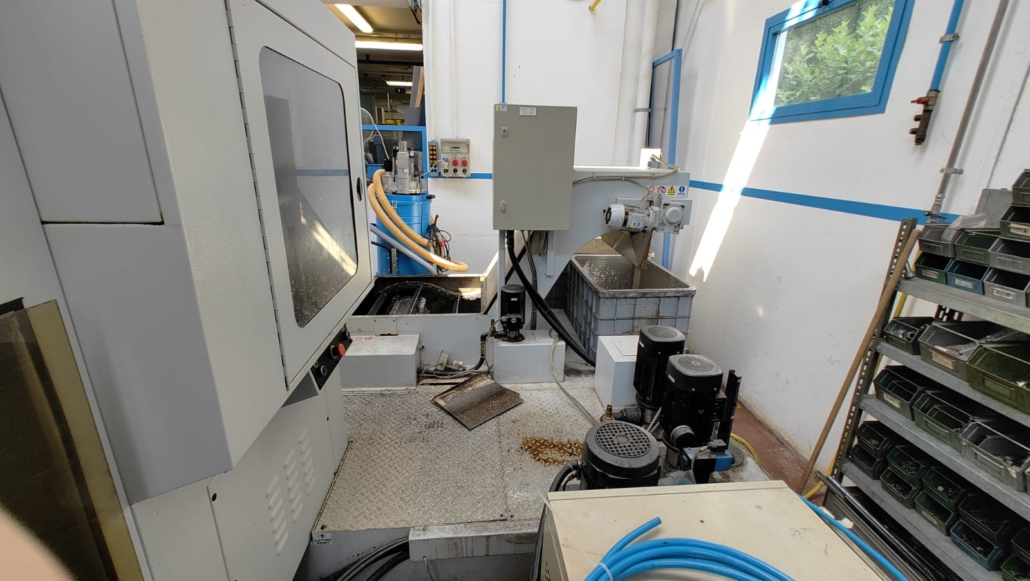

Chip conveyor

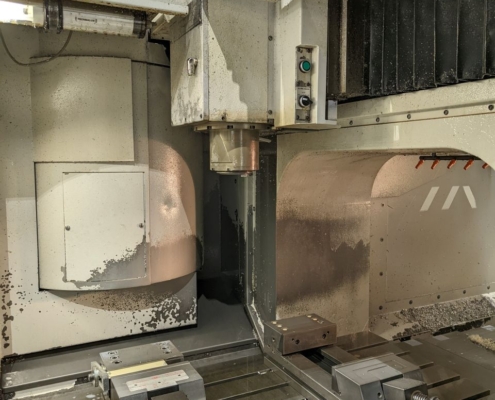

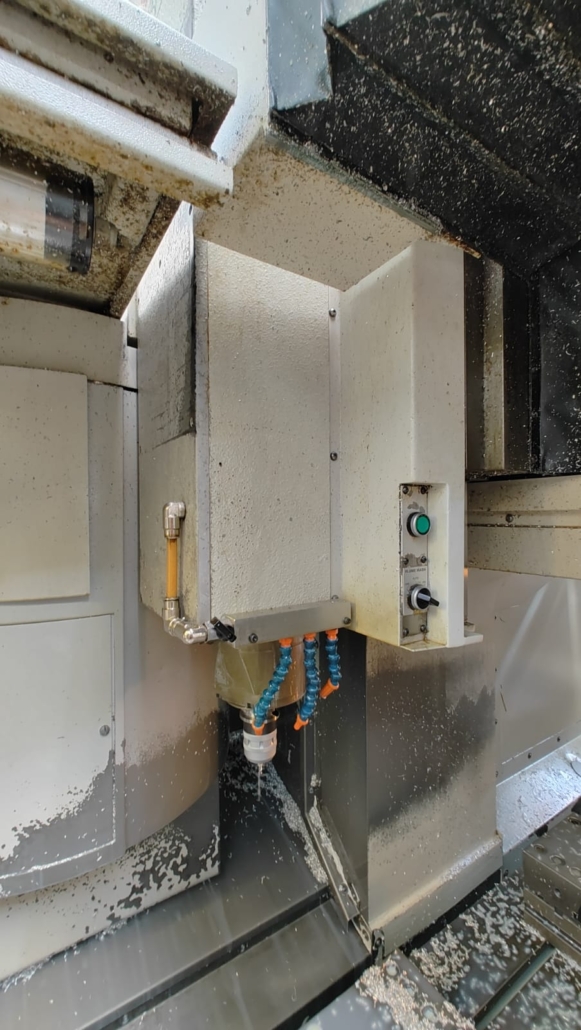

Completely overhauled electrospindle

Data subject to possible revisions, not binding
