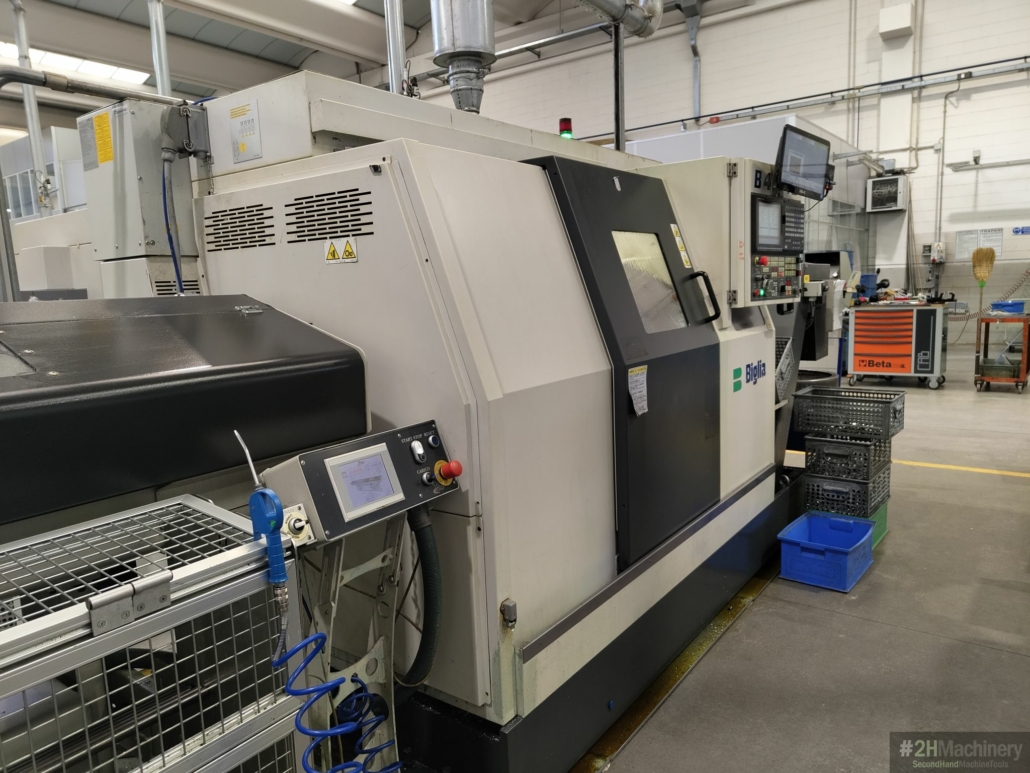

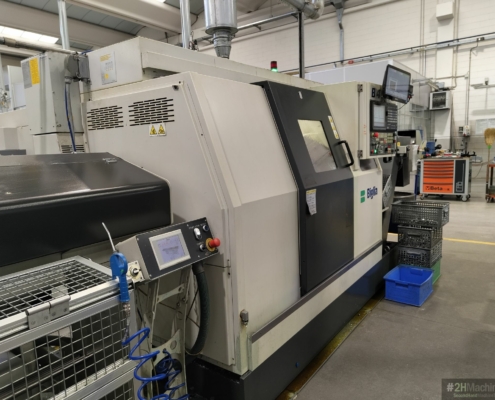

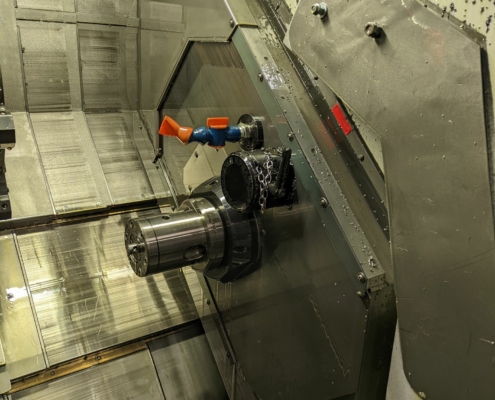

BIGLIA B436 Y2
CNC lathe 2 spindles, 2 turrets, 2 Y-axis
Year 2016

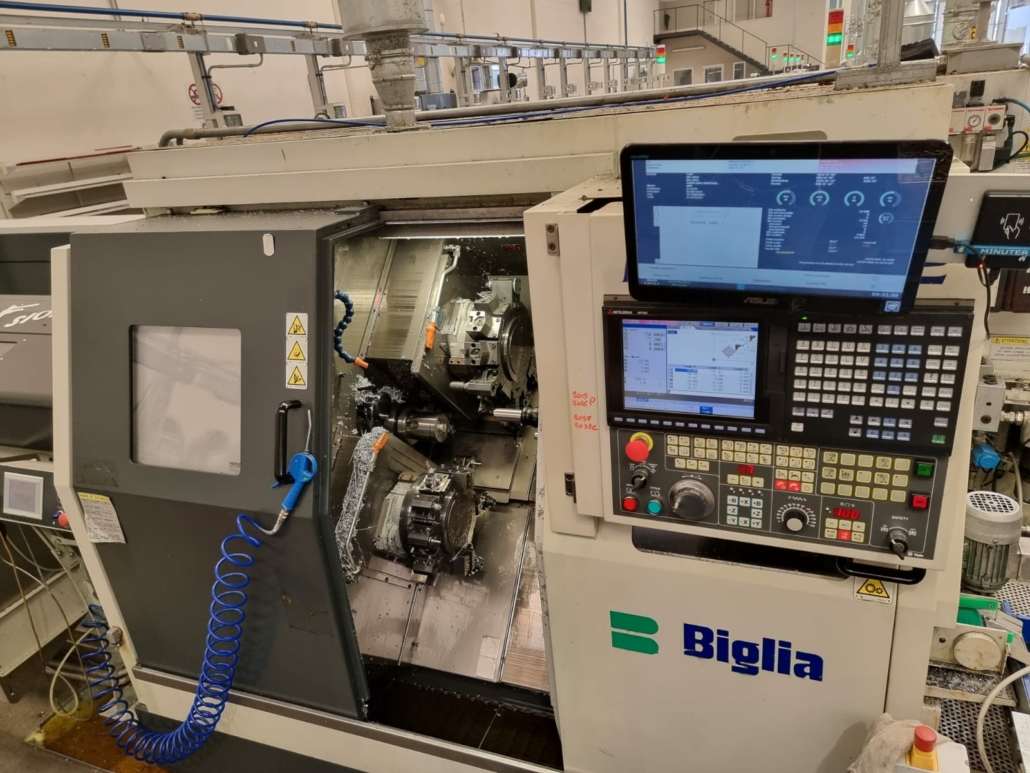

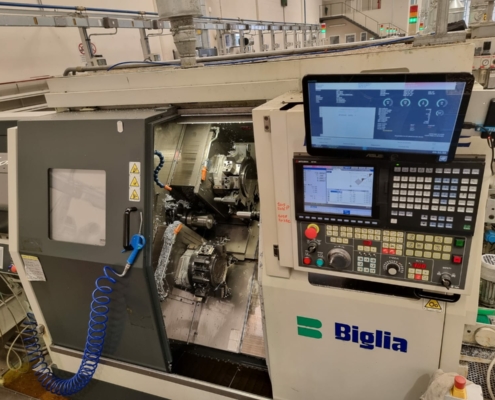

CNC Mitsubishi M730 VS-L

Bar turning diameter mm. 36
Bar passage hole diam. mm. 37.5

Main spindle
C-axis
Max speed RPM 7000
Spindle power kW 7.5/11
Max torque Nm 62

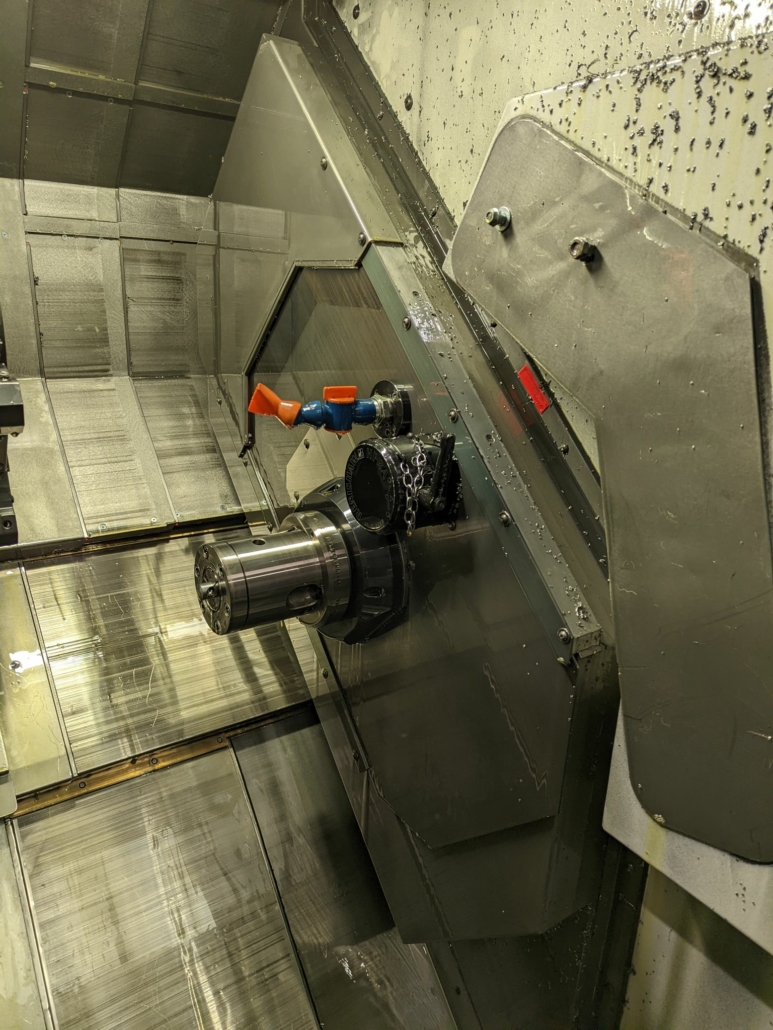

Counter spindle
C1-axis
Max speed RPM 7000
Spindle power kW 7.5/11
Max torque Nm 62

Axis strokes
Z1/X1/Y1 mm. 300/85/50(+/-25)
Z2/X2/Y2 mm. 300/85/50(+/-25)
Z3/X3 mm. 340/170 (+/-85)

Axis speed
Z1/X1/Y1 m/min 30/15/15
Z2/X2/Y2 m/min 30/15/15
Z3/X3 m/min 30/15

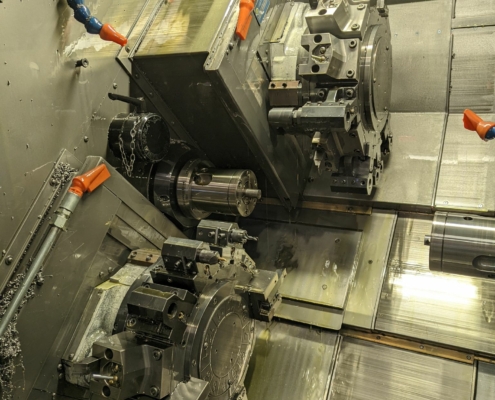

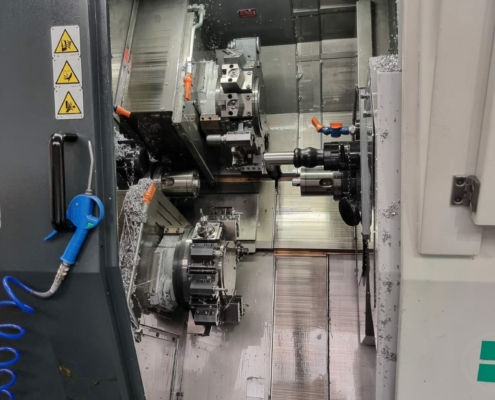

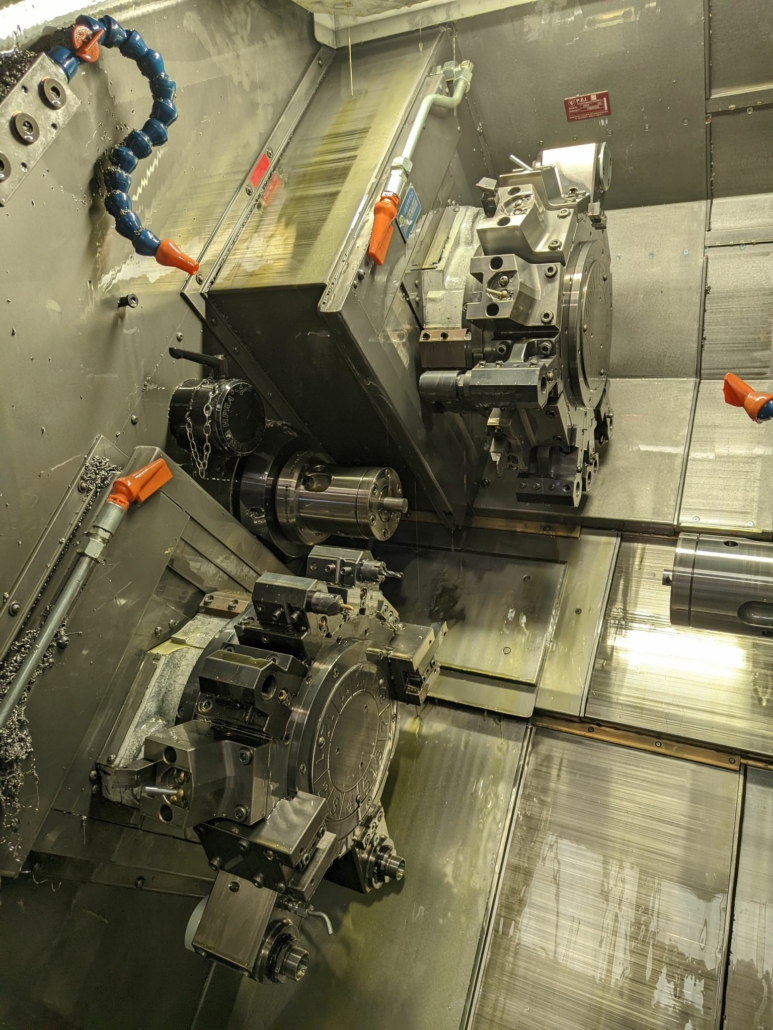

Upper/lower turret
Motorized positions no. 12
Shaft dimensions mm 16×16
Boring diameter mm 20
Motorized power kW 2.2
Max rotation speed RPM 6000

Rotation synchronization
Cleaning jaws/gripper with 7 bar coolant
Piece ejection – stroke 75 mm
B-axis effort detection system

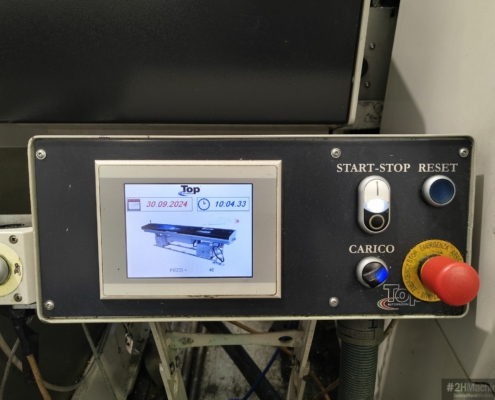

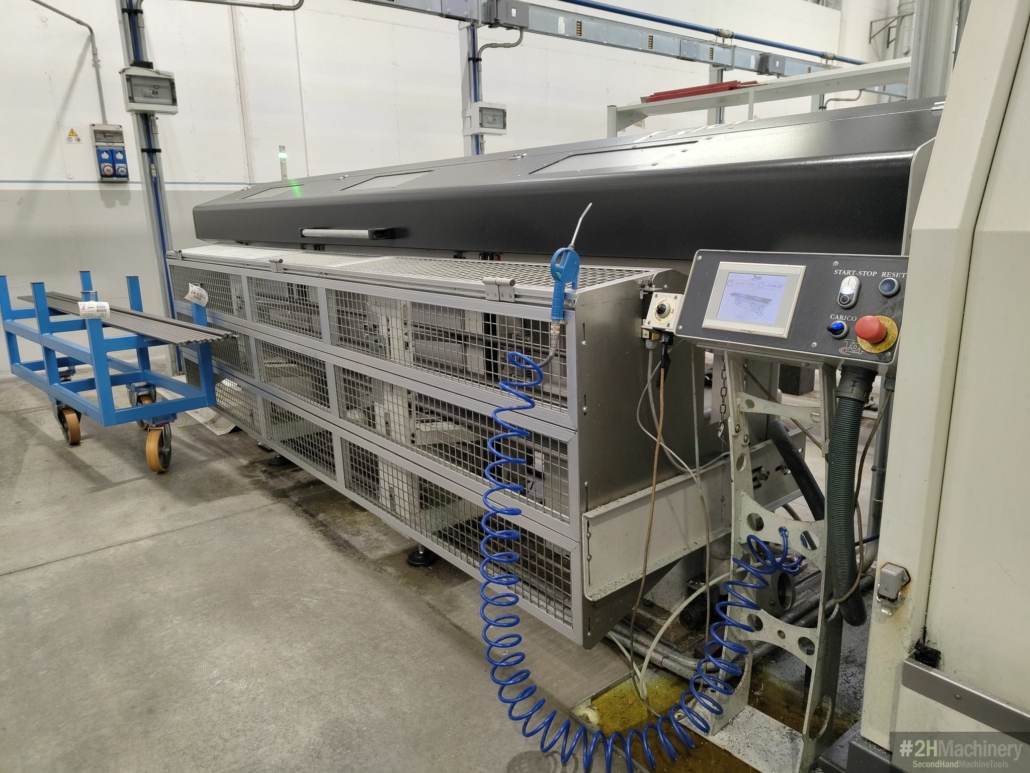

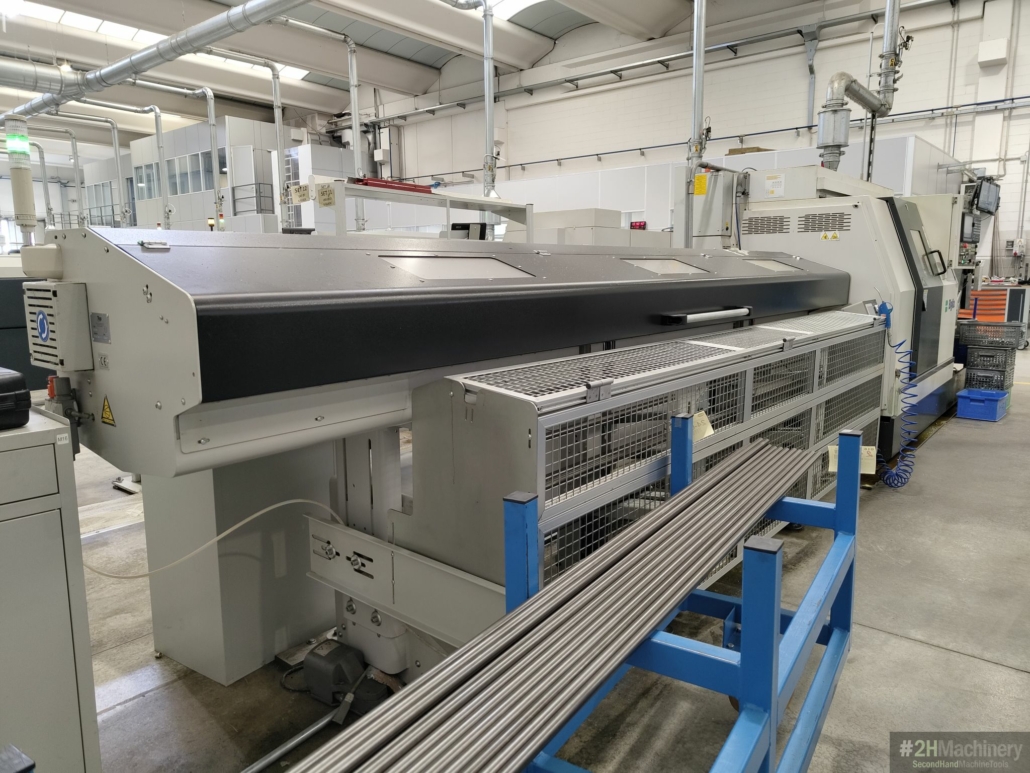

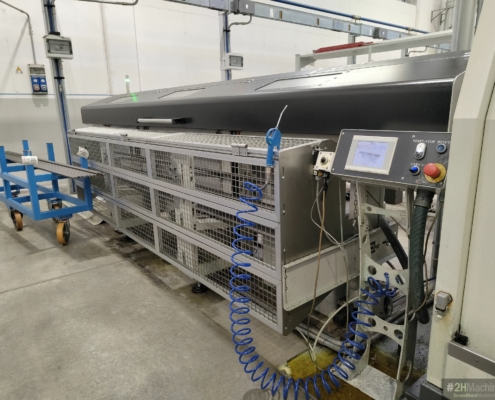

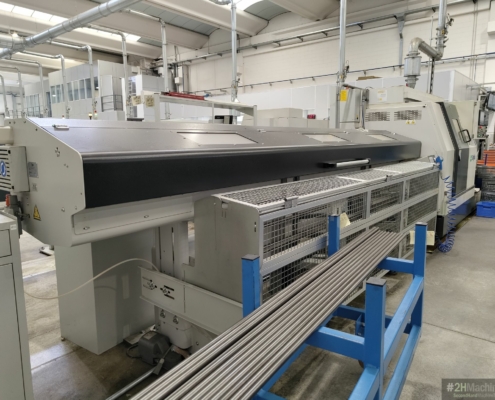

Top Fusion Automation bar loader
Head and counter-head cooling system

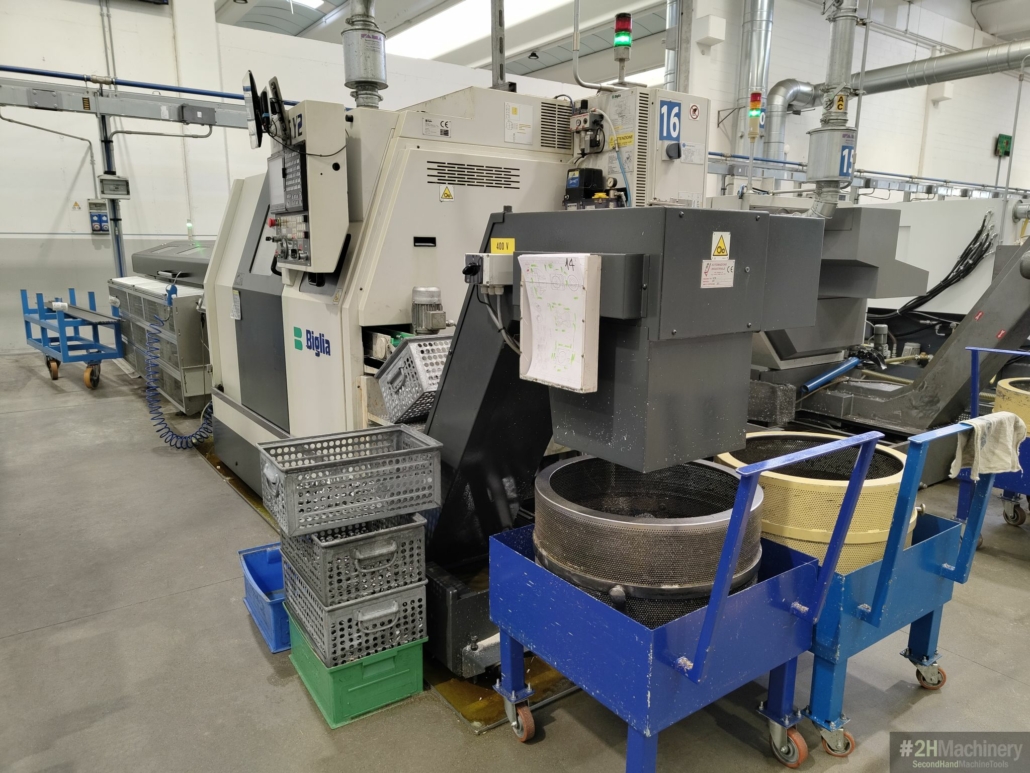

Automatic unloader and piece transport belt
Electronic probe
High pressure pump 30 bar with filter
Tool effort monitoring
Predisposition for polygoning for turret
Chip evacuator
A lot of tools supplied
Machine that has worked with whole oil

Data subject to possible revisions, not binding
