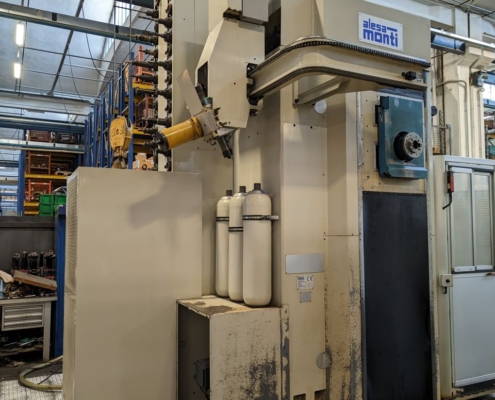

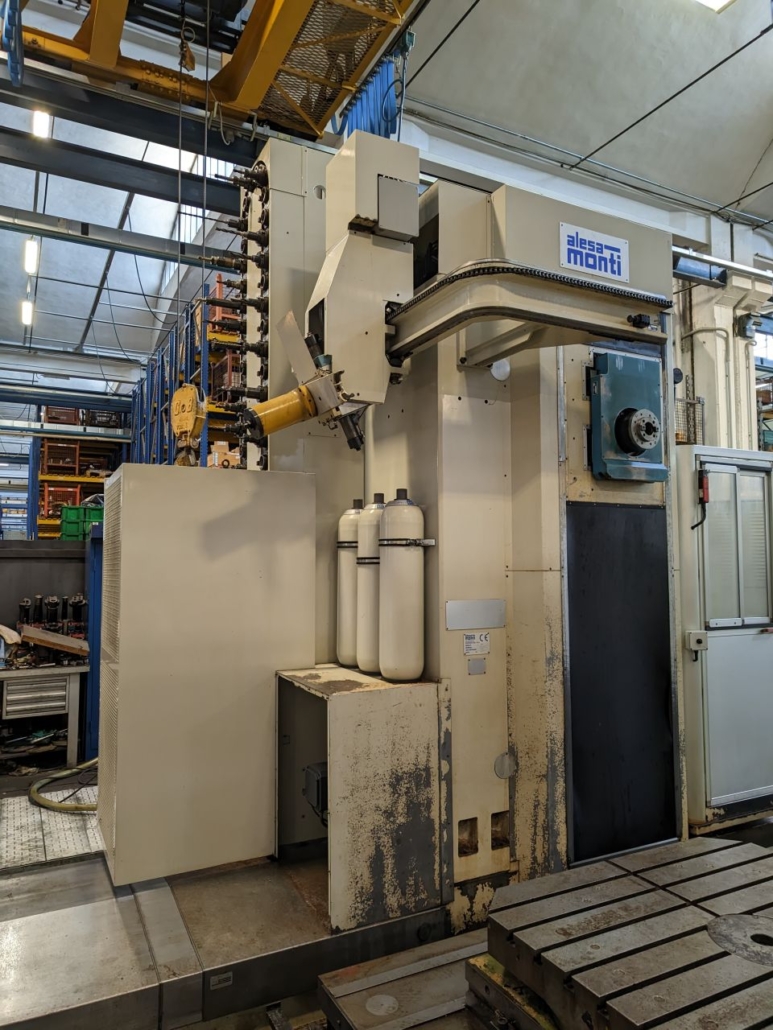

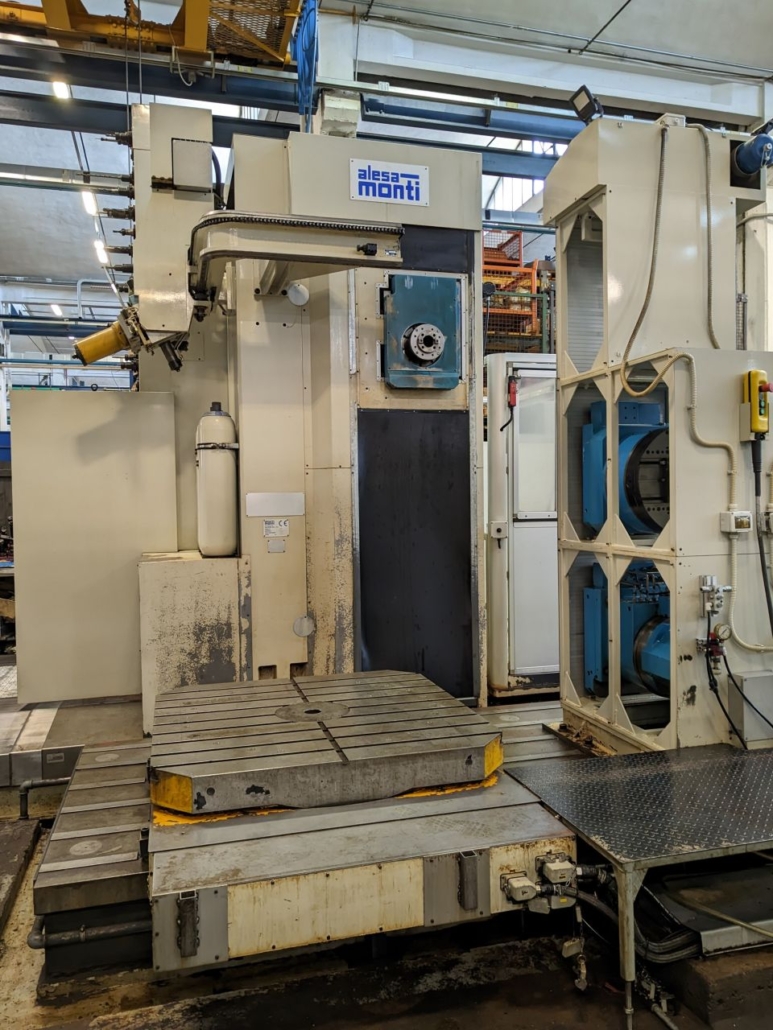

MOVING COMLUMN MILLING MACHINE ALESAMONTI M20
TYPE: Moving column milling machine
MAKE: ALESAMONTI
MODEL: M20
YEAR: 2002

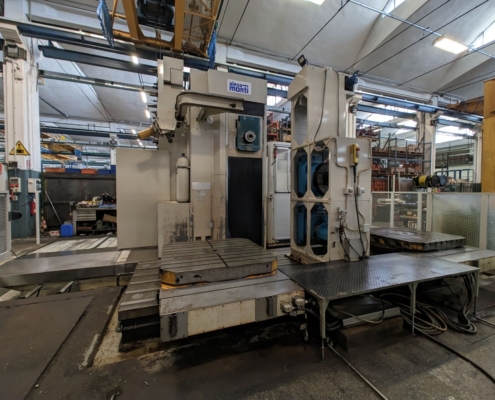

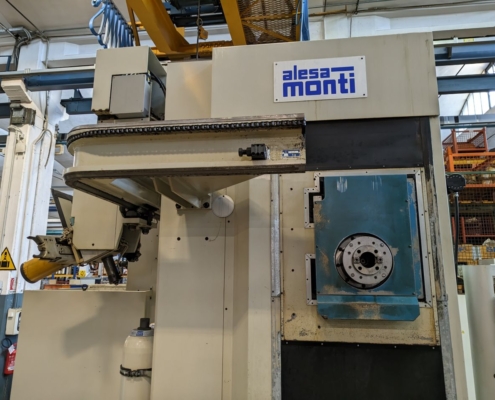

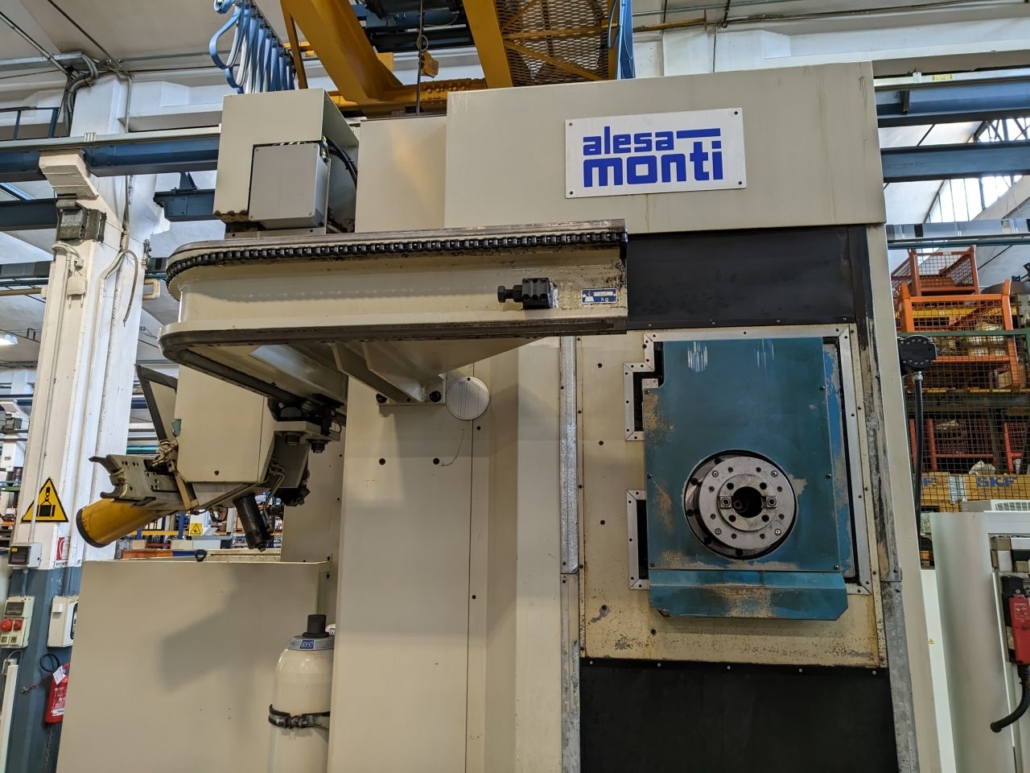

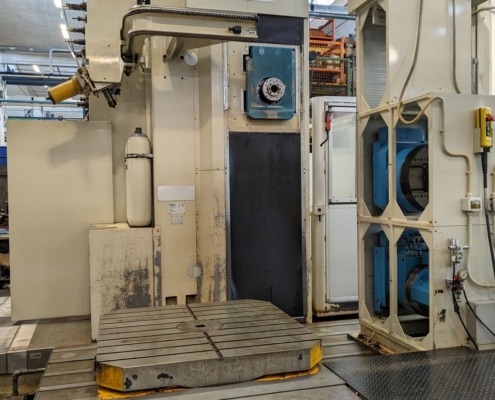

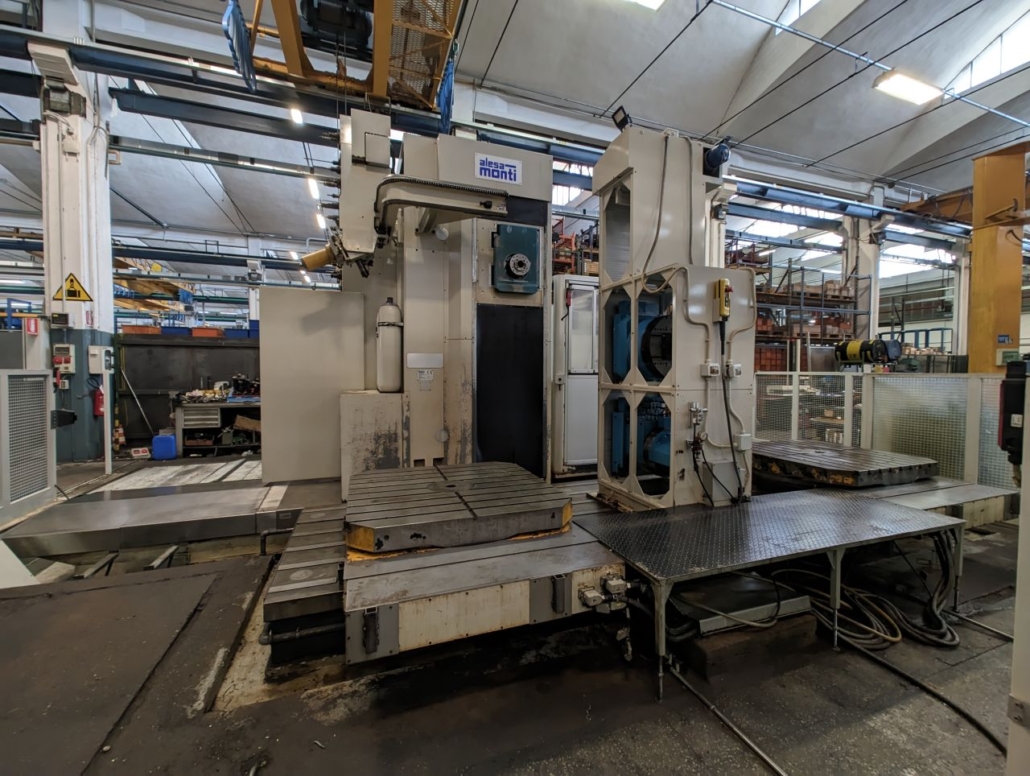

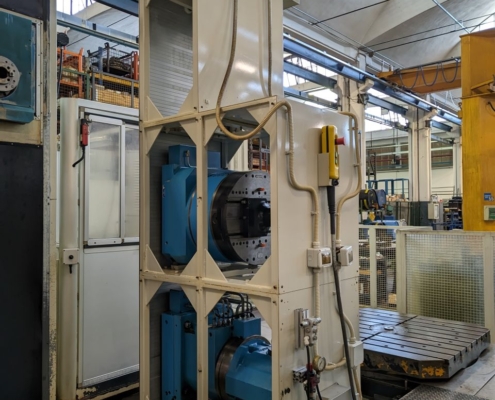

The used ALESAMONTI M20 milling machine is a very versatile mobile column milling machine, equipped with a Stolle table, 2 rotary tables, 60-position tool magazine, head changer, Heidenhain TNC 420 CNC. Year 2002, excellent conditions of use.
CARATTERISTICHE TECNICHE
Pendulum work on 2 tables

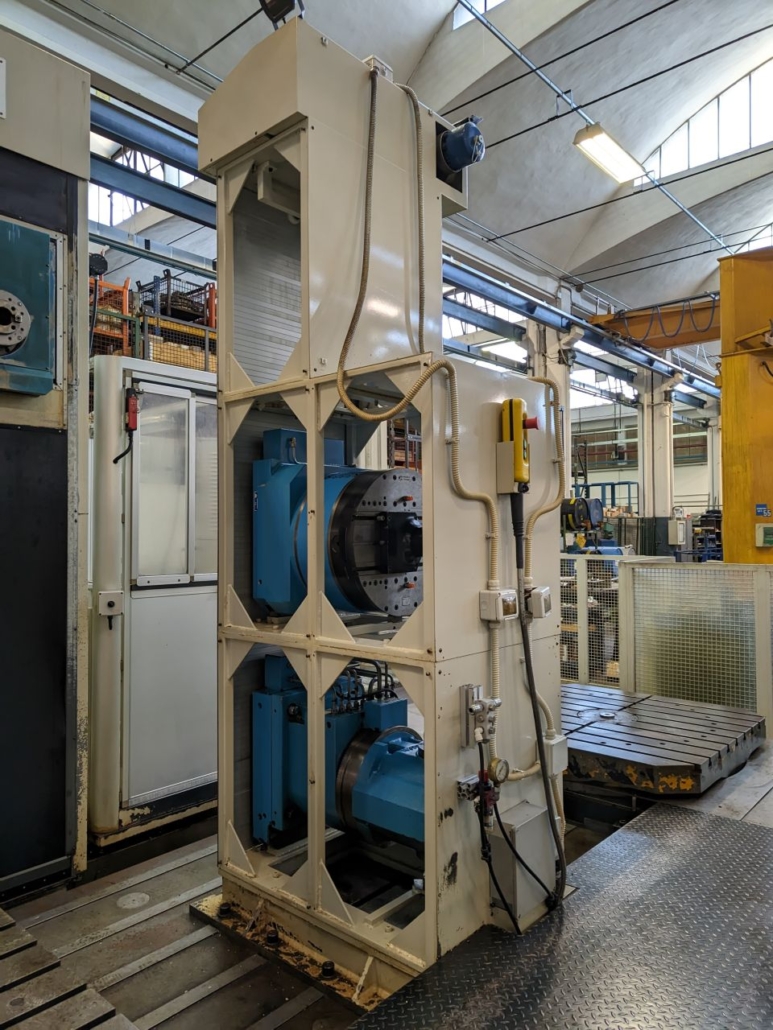

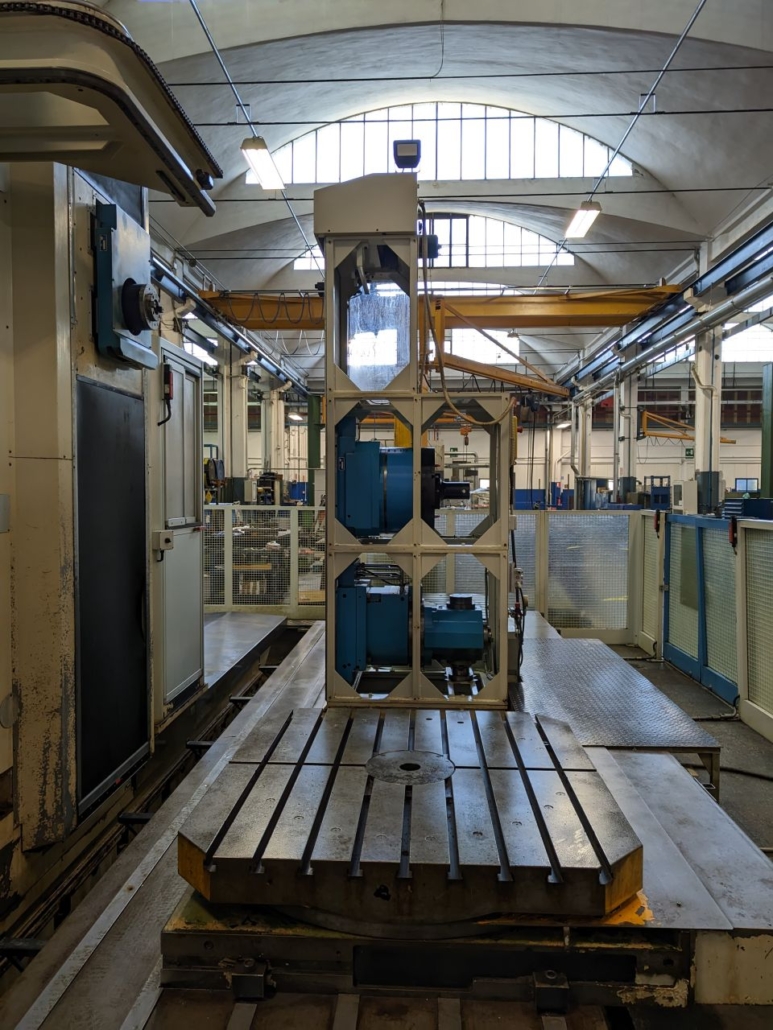

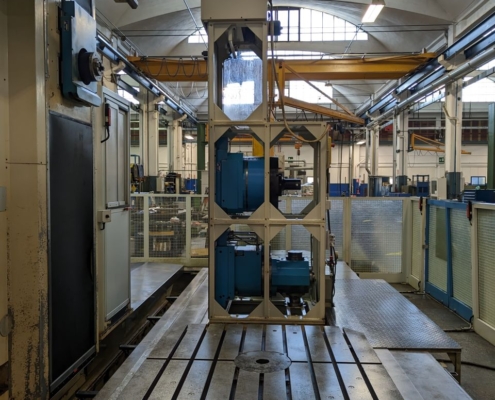

Automatic head change
Stolle Plan

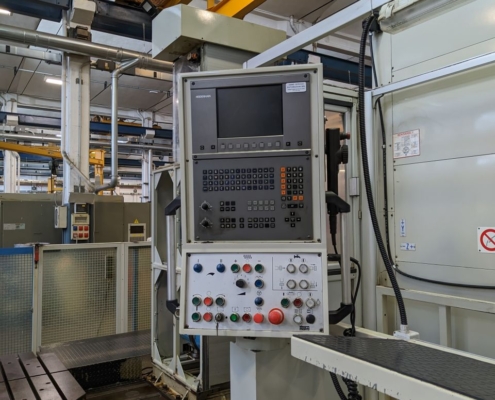

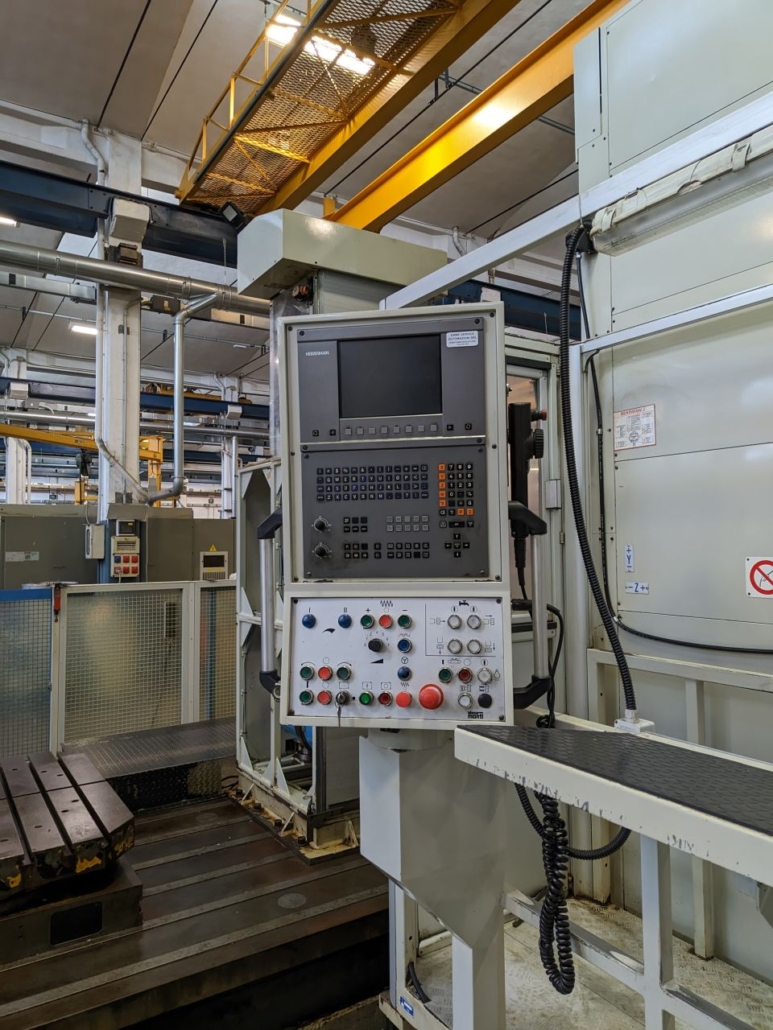

CNC Heidenhain TNC 420
Racing
X axis 5000 mm
Y axis 2000 mm
Z axis 1000 mm
Movement speed
Rapid forwarding 10 m/min
Work progress 10000 mm/min
Spindle (double)
ISO 50 connection
Max speed 4000 rpm
Indexed rotation 2.5°

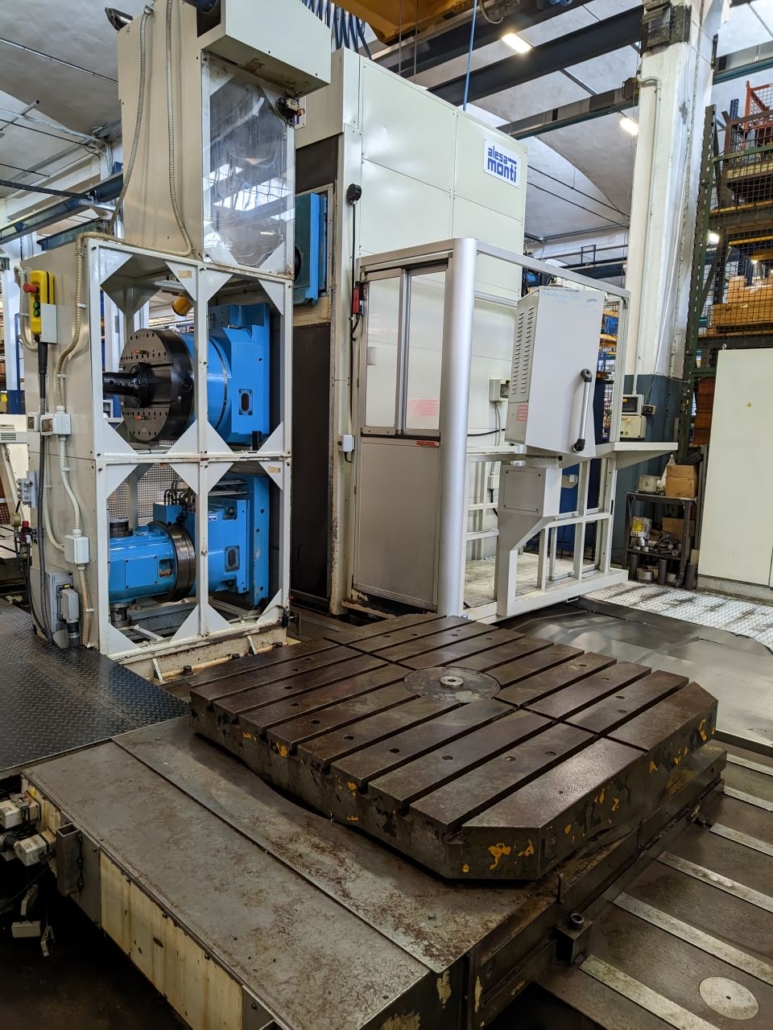

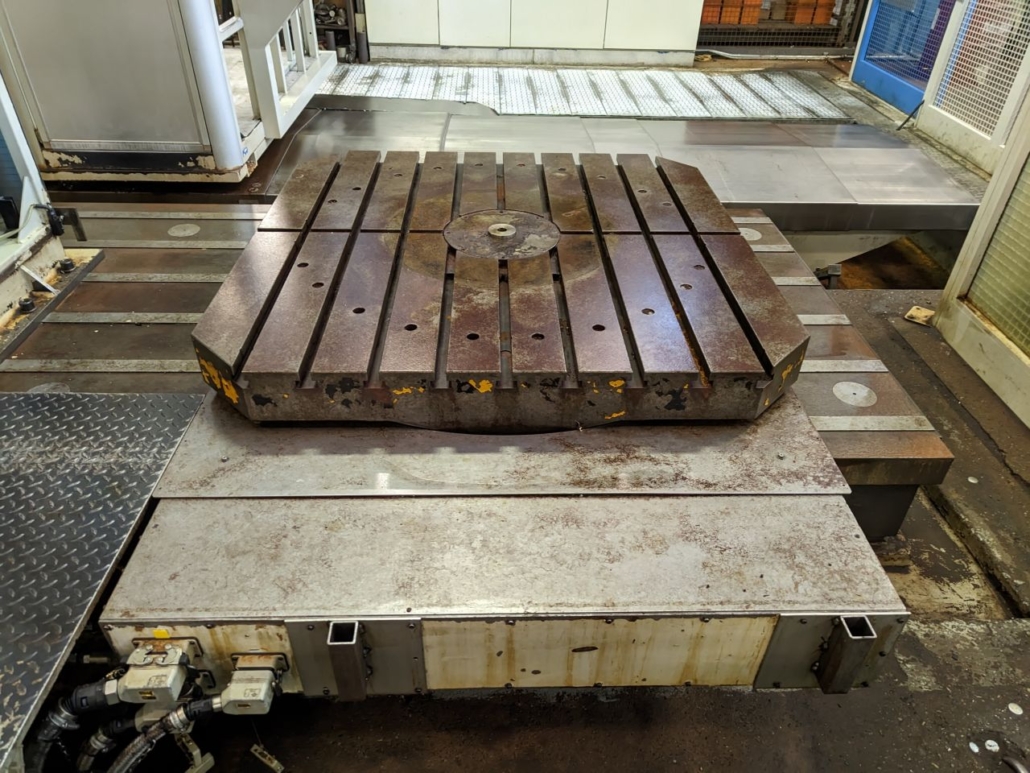

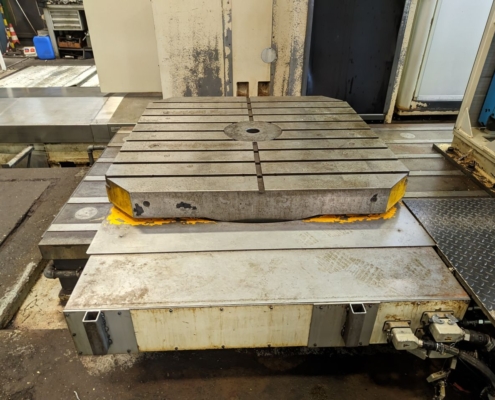

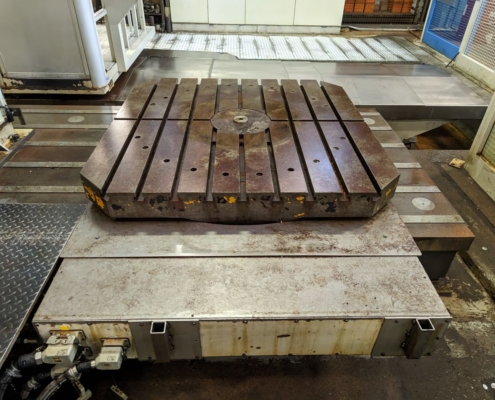

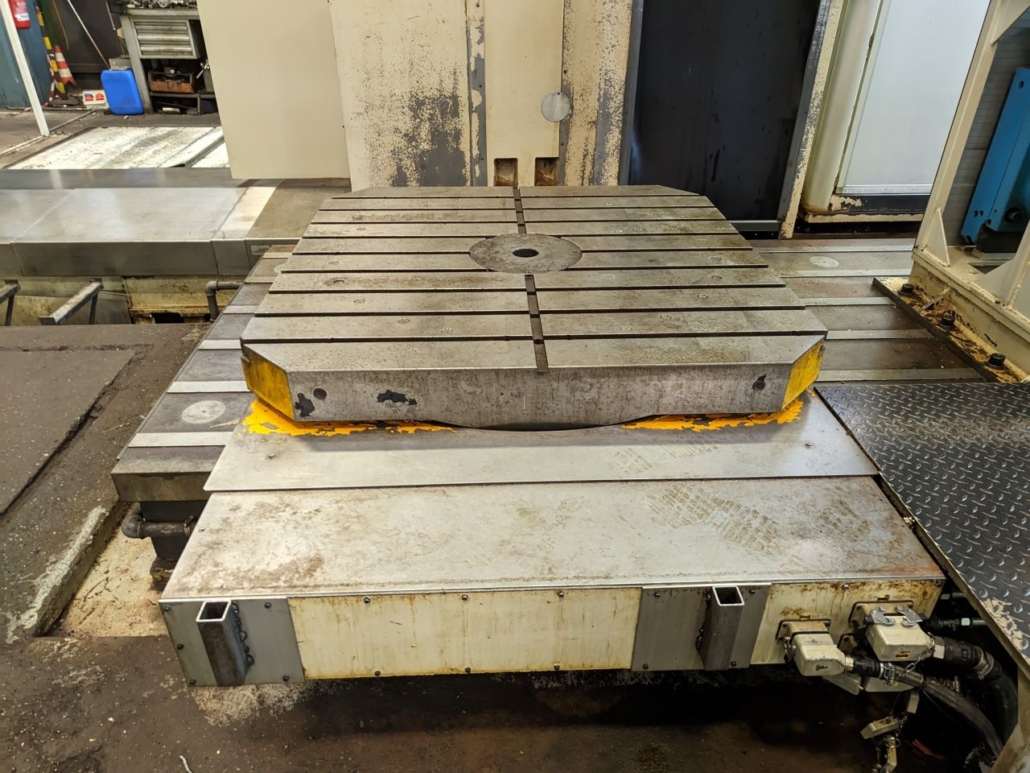

Table 1 and 2
Dimensions 1250 x 1250 mm
5° indexed rotation
Capacity 2,500 kg

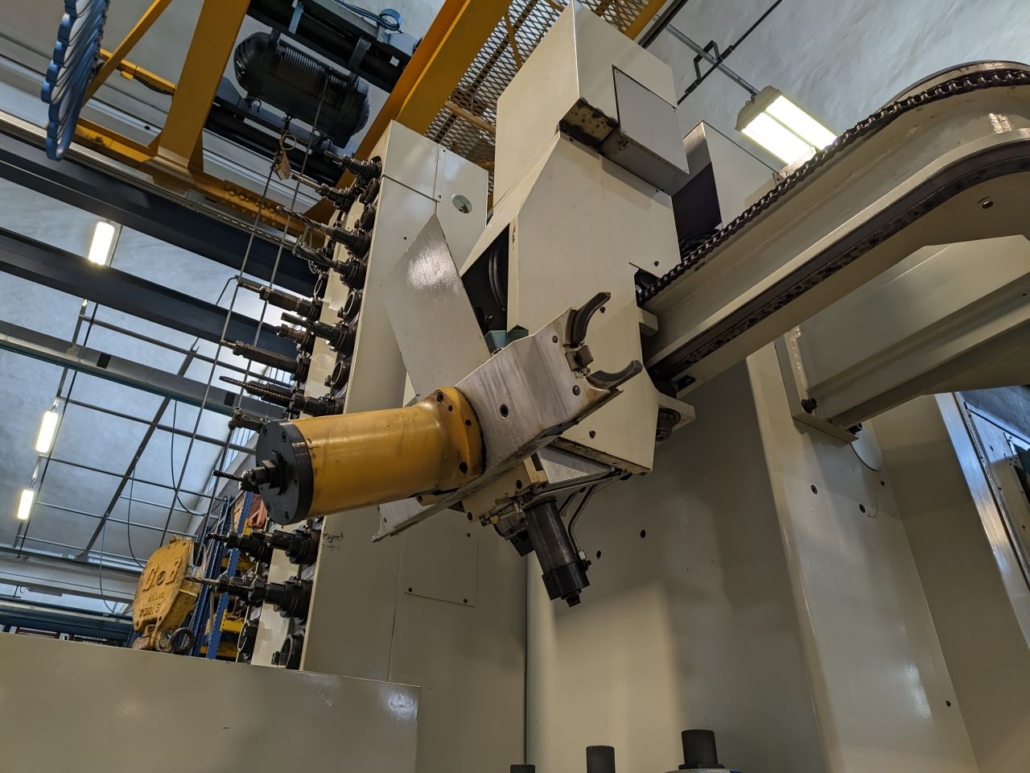

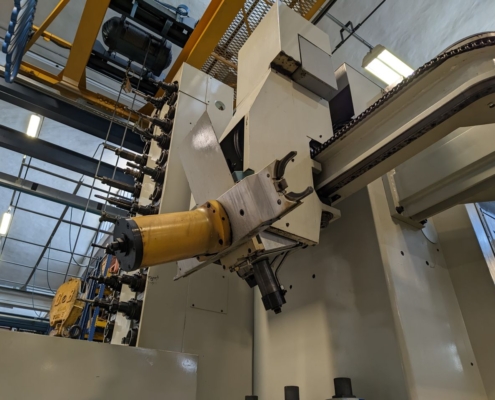

Tool magazine 60 positions
Chip conveyor
Chiller for head cooling
Accessories

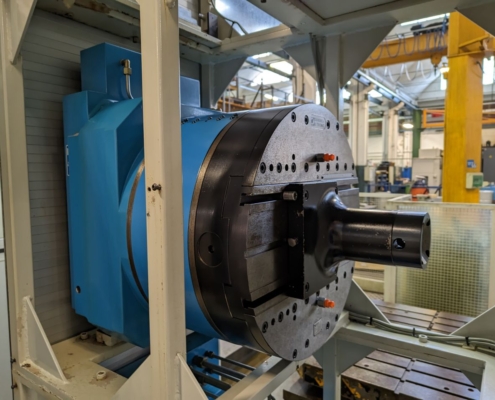

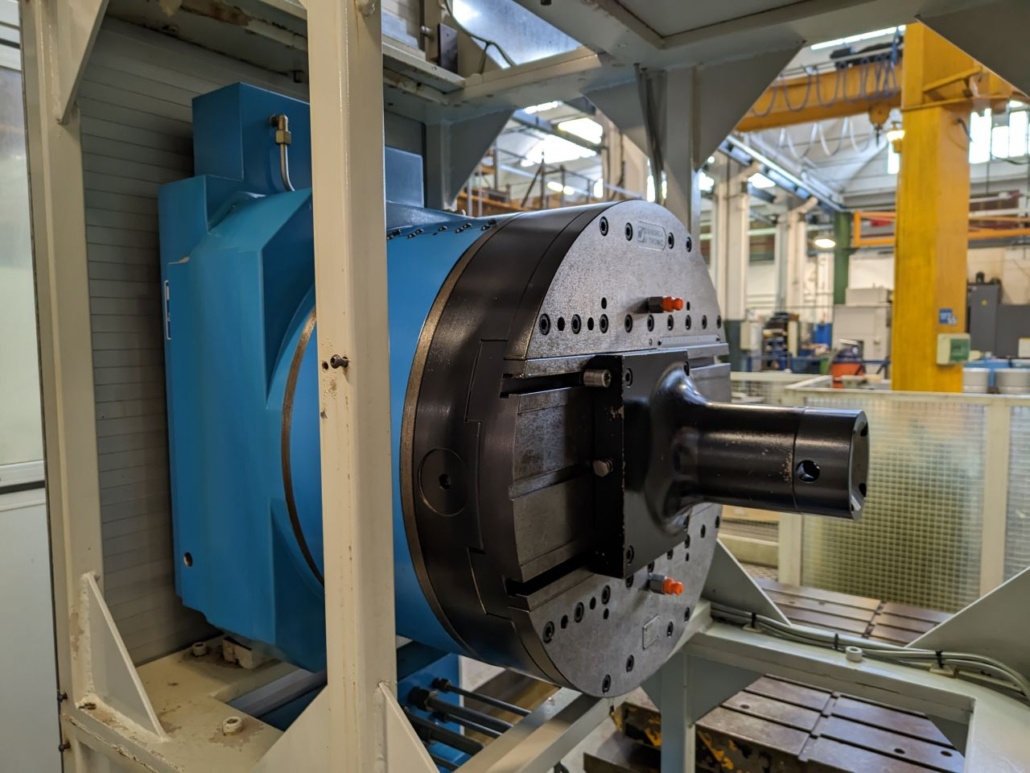

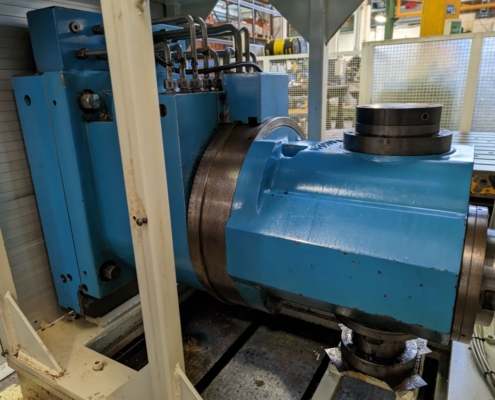

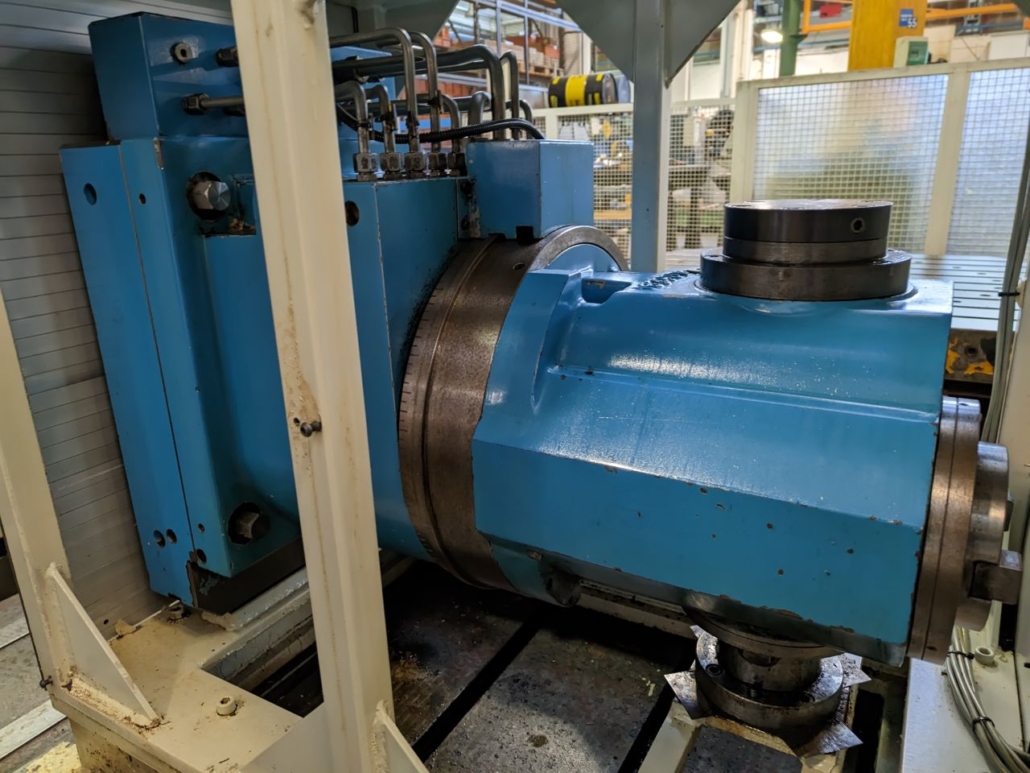

Automatic double spindle head (horizontal and vertical)
D’Andrea head controlled by CNC
Self-centering chucks
Various tools
Data subject to possible revisions, not binding
