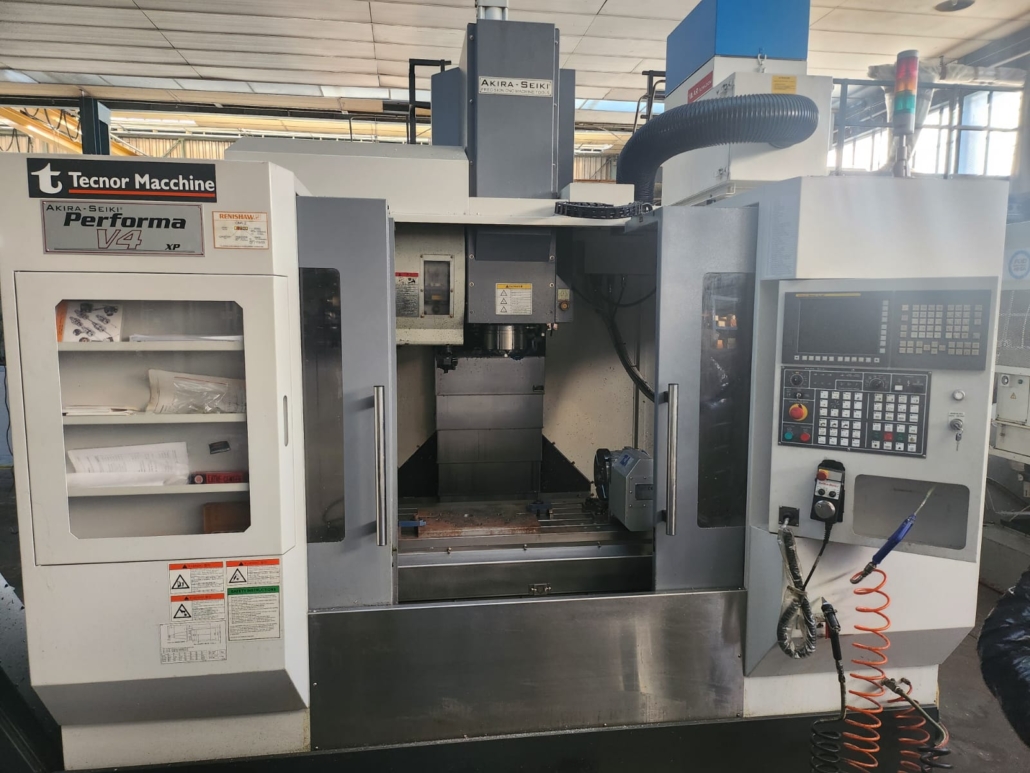

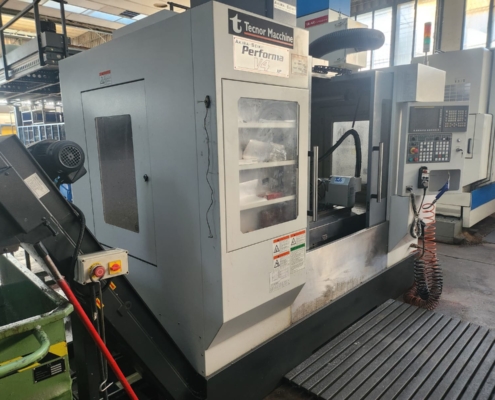

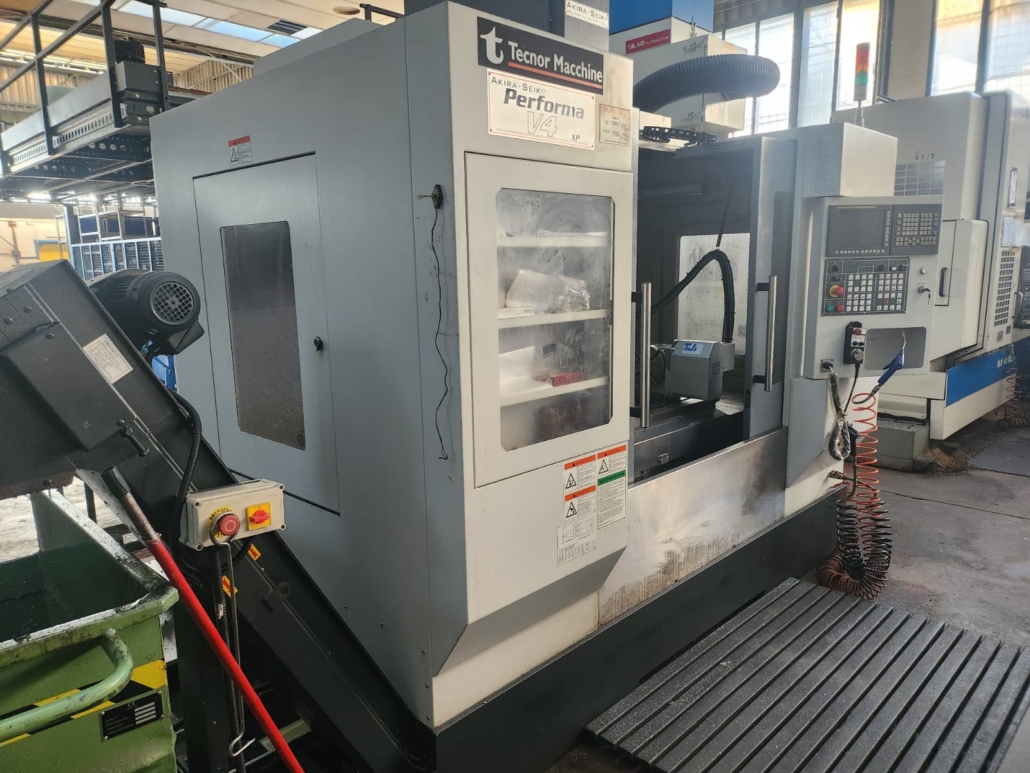

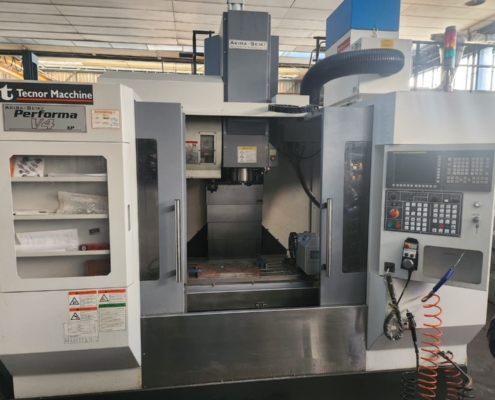

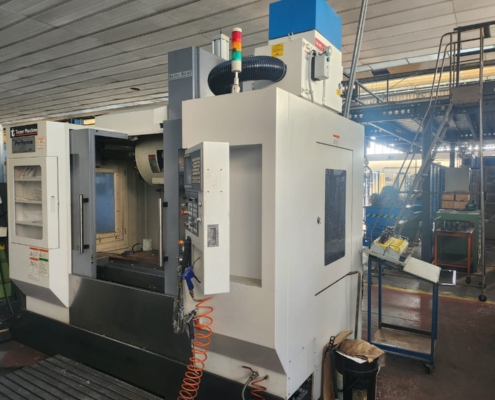

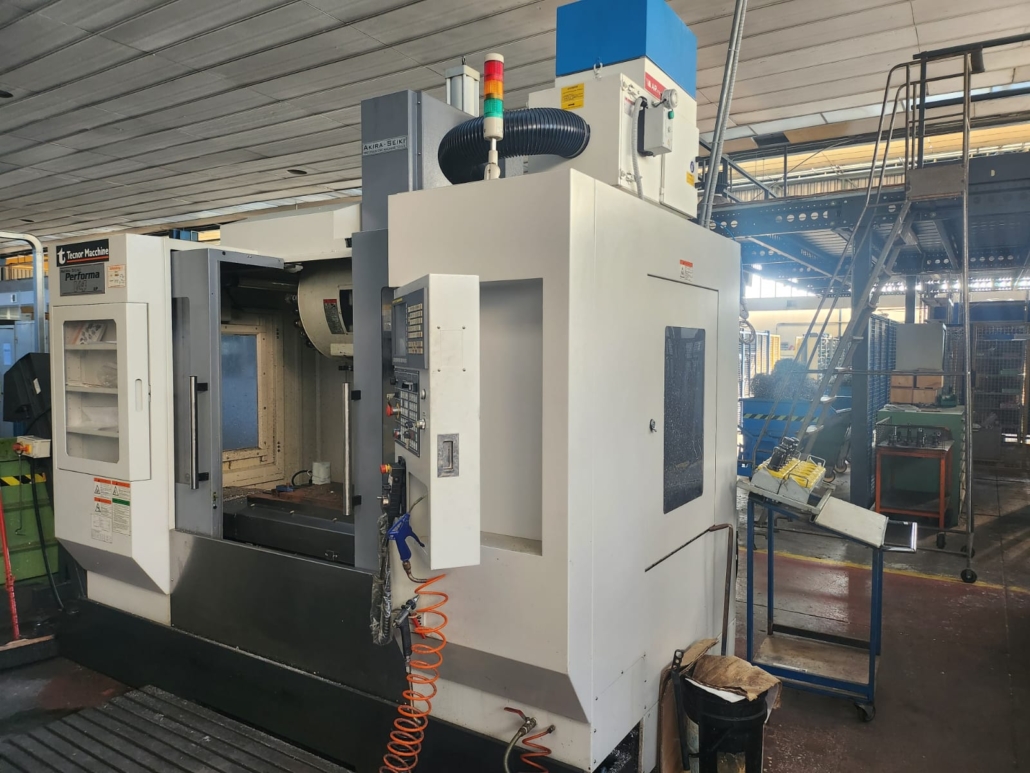

AKIRA SEIKI V4 XP

Year: 2017
Manufacturer: AKIRA SEIKI CO LTD
Model: V4 XP

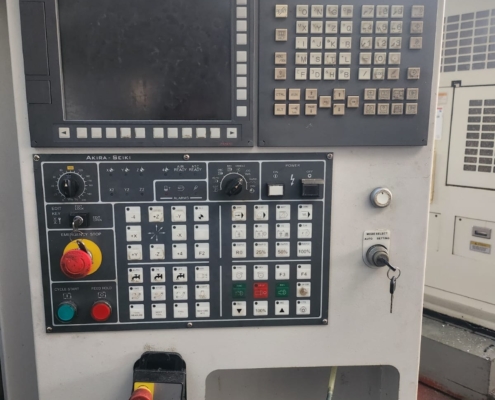

Control: FANUC Oi-MF

Technical Specifications

Axis stroke
X-axis mm 1050
Y-axis mm 540
Z-axis mm 560
Distance between table surface and spindle nose mm 75÷635
Distance between column and spindle center mm 550

Feed speed
X/Y/Z axes rapid traverse m/min 44/44/25
X/Y/Z axes working speed mm/min 12,000

Table
Table dimensions mm 1200×480
Table surface configuration T-slots mm 18x80x5
Maximum loadable weight on the table (element + equipment) kg 1300
Standard loadable weight on the table (element + equipment) kg 850

Spindle
Spindle power kW 15
Spindle speed rpm 11,000
Spindle type ISO 40 DIN 69871

Accuracy
Positioning mm +/- 0.015
Repeatability mm +/- 0.01

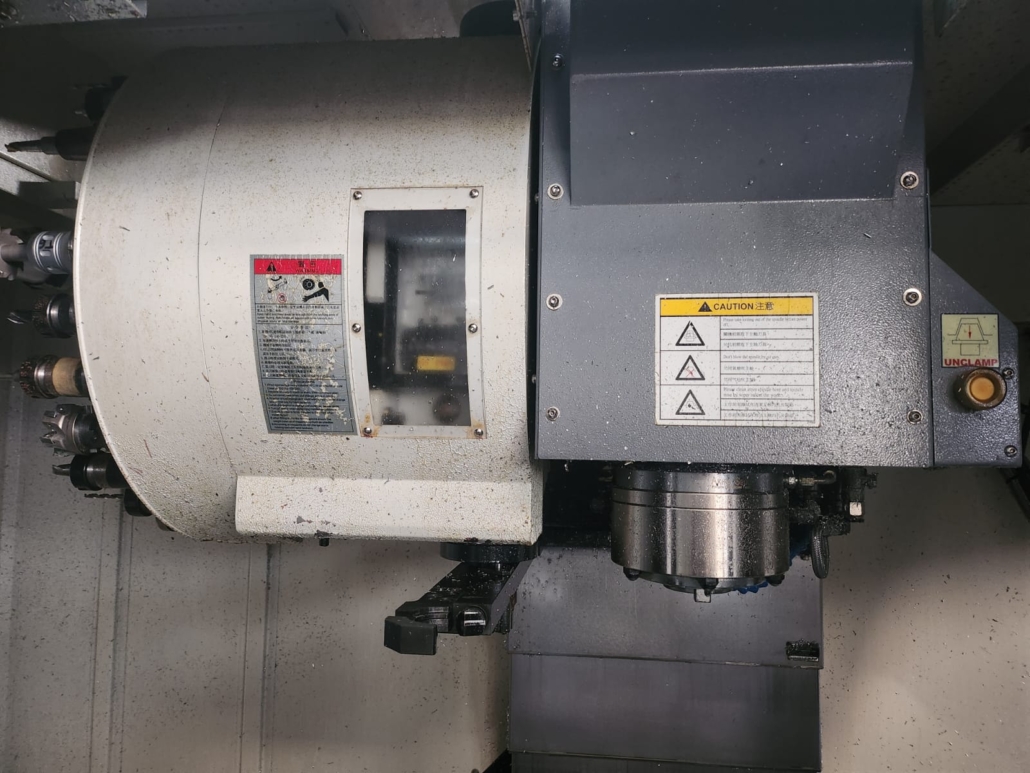

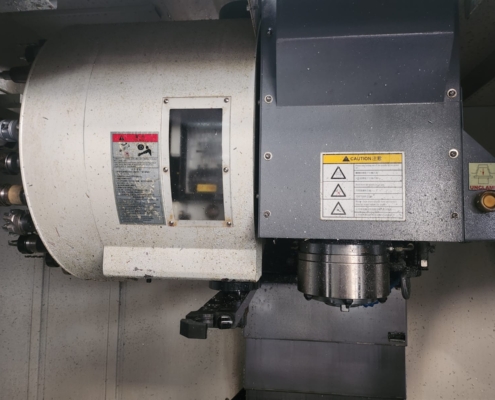

Tool change magazine (ATC)
Number of tools 28

Maximum tool diameter mm 65
Maximum tool length mm 250
Maximum tool weight kg 7

Coolant system
Pump motor W 700
Tank capacity l 200

Spindle head cooling system
High pressure spindle center 20 bar
Chip conveyor
Coolant system
Tool presetting with sensor on table TS 27R
Rigid tapping with double speed return

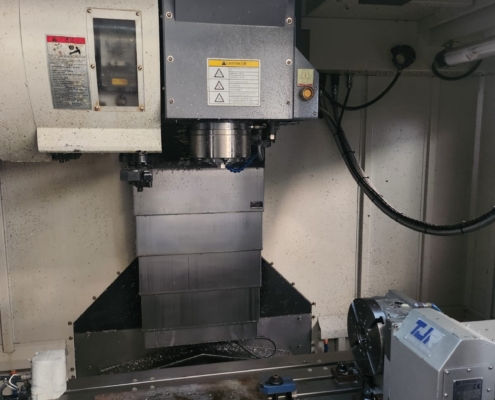

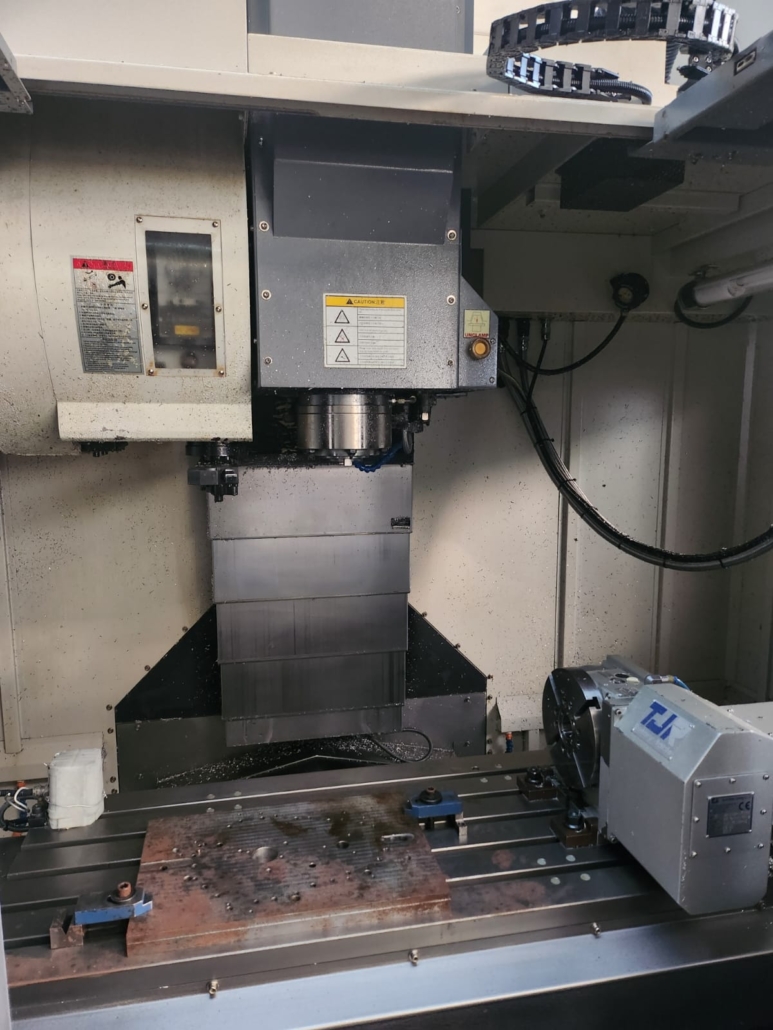

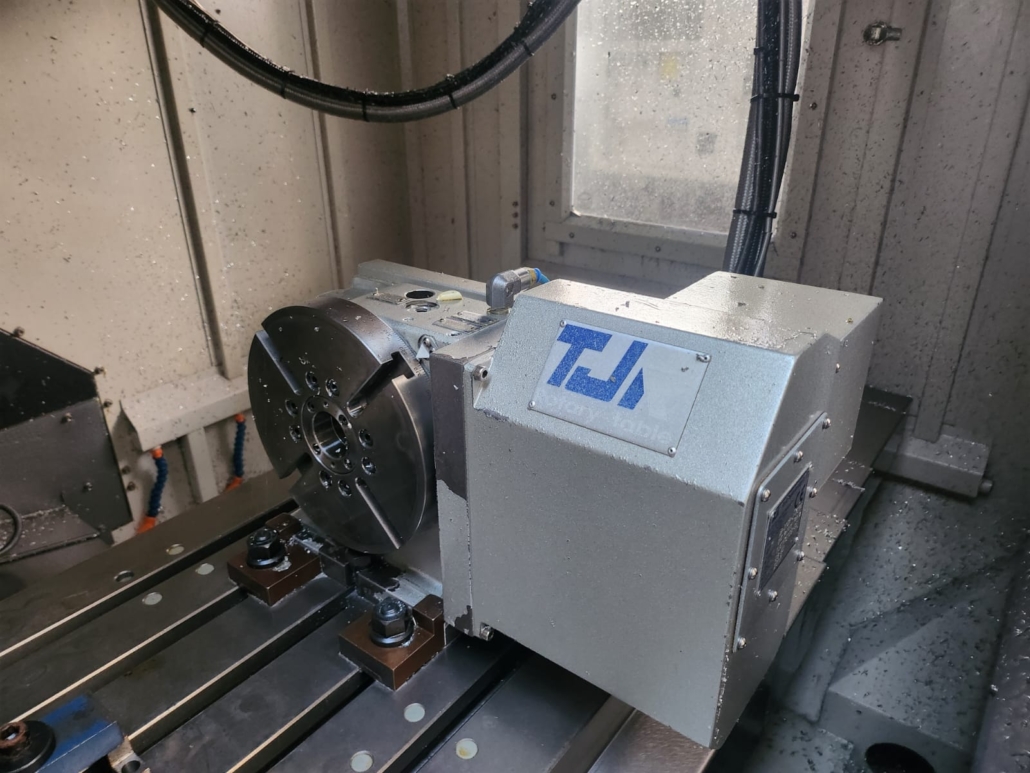

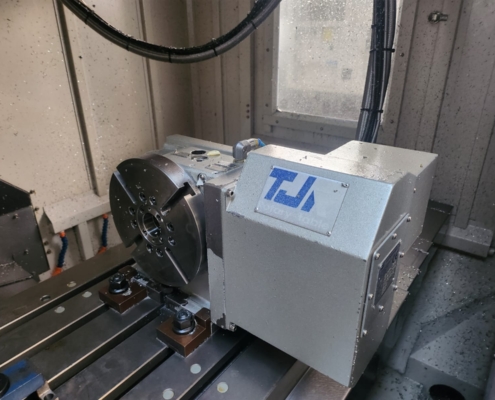

4-axis table TJR mod. AR210 with tailstock
Fuel extractor
Renishaw OMP 60 probe

Dimensions: 3300x2240x3130 mm
Weight: 6,030 kg

Machine supplied with manual and CE declaration.

Data subject to possible revisions, not binding
