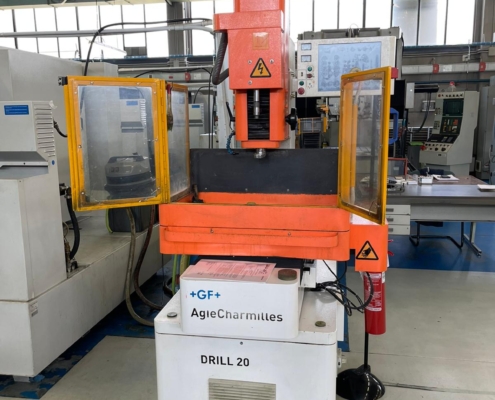

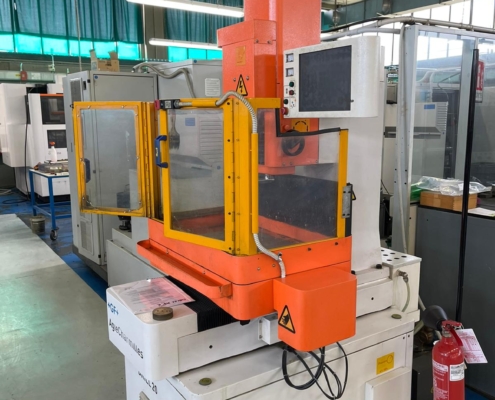

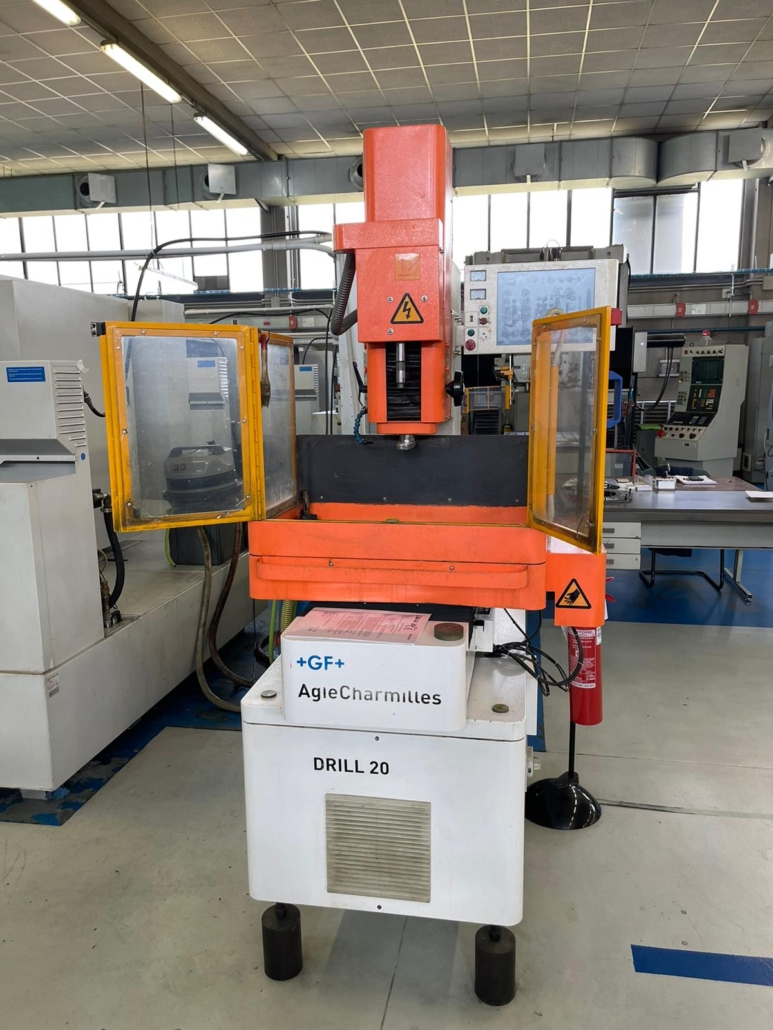

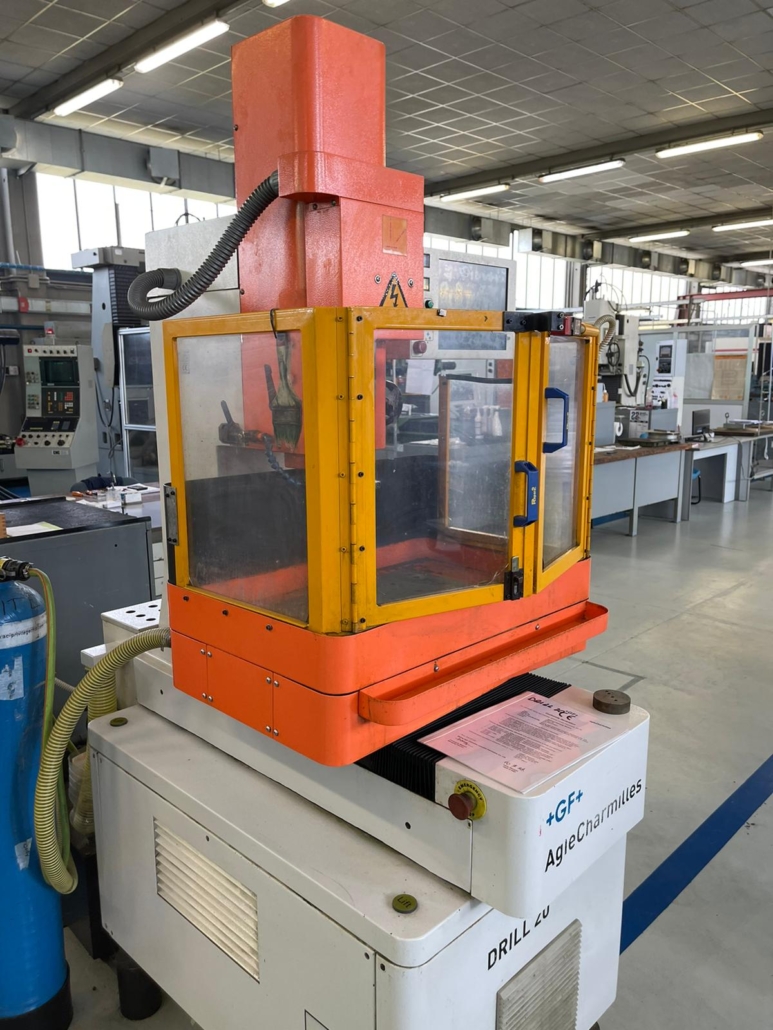

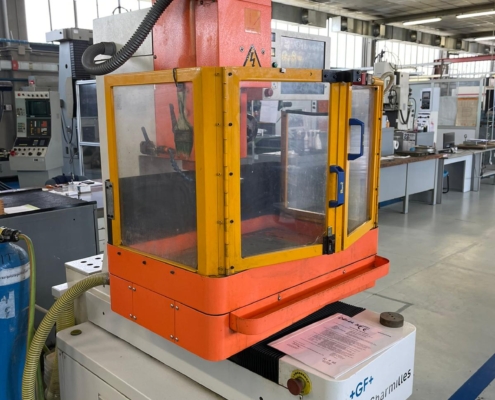

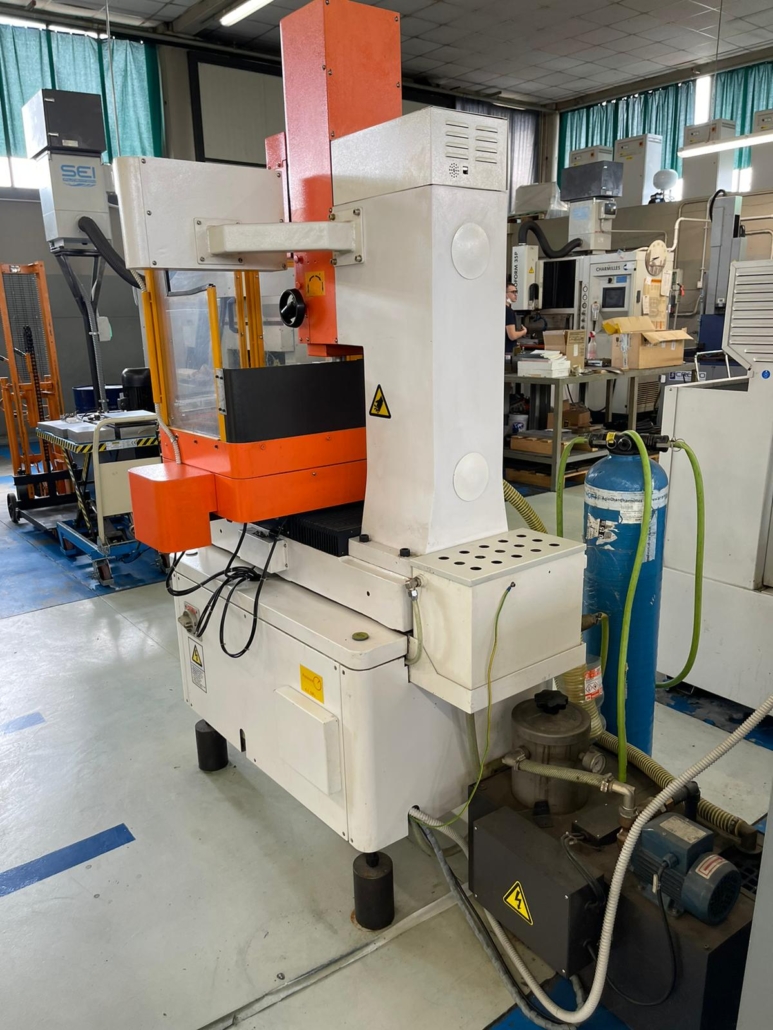

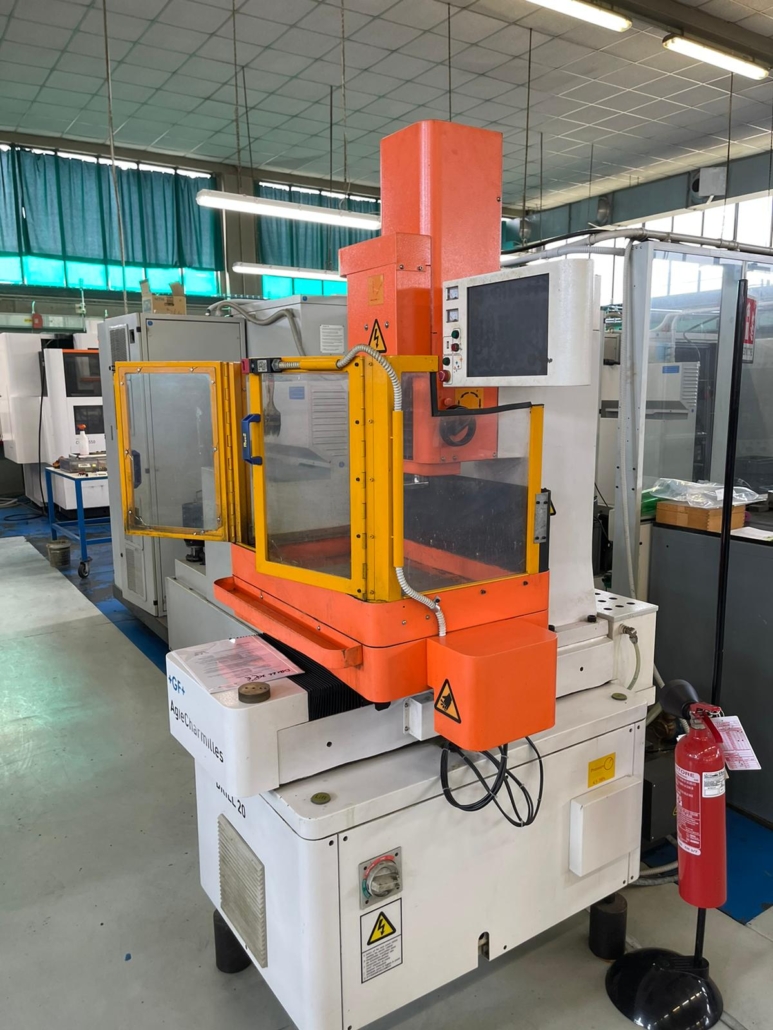

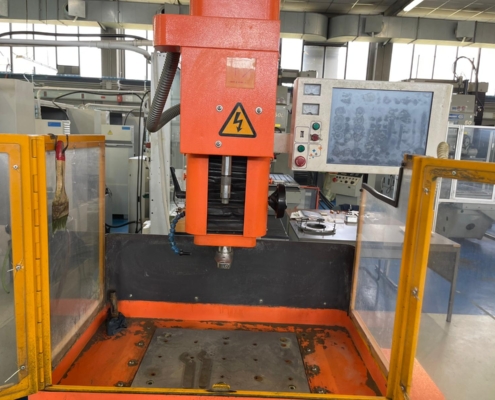

Microborer AGIE CHARMILLES DRILL 20
TIPO: Microborer
MARCA: AGIE CHARMILLES
MODELLO: DRILL 20
ANNO: 2011
Microborer with with electrode diameter from 0.3 to 3 mm and maximum drilling depth of 200 mm. TFT 12.1” monitor, touch screen and pump operating pressure 70 bar. Excellent condition, immediate availability, year 2011.
TECHNICAL SPECIFICATIONS
Electrode diameter mm 0.3 to 3
Depth max. of drilling mm 200
Maximum workpiece weight kg 300
Travel of the X, Y, Z axes 300 x 200 x 300 mm
Table support surface 400 x 300 mm
Stroke of the electrode guide 100 mm
Mains connection A 30
High performance generator l 16
Volume of the dielectric V, Hz 3 x 400, 50/60
Max power absorbed kVA 5

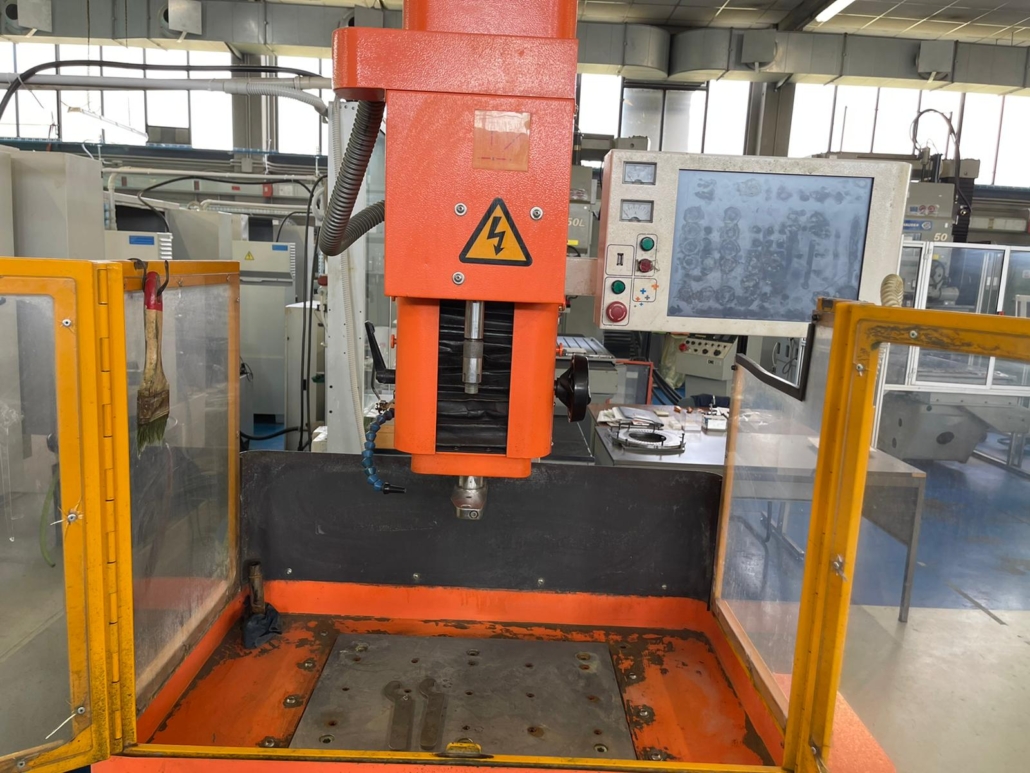

12.1 ”TFT monitor, touch screen

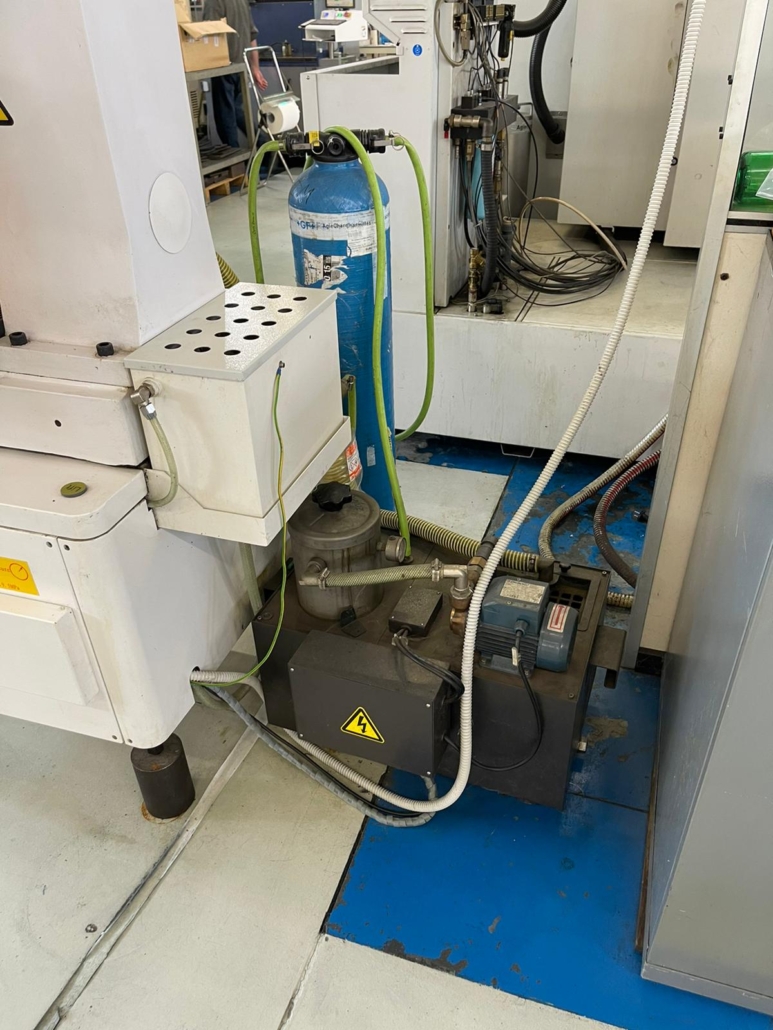

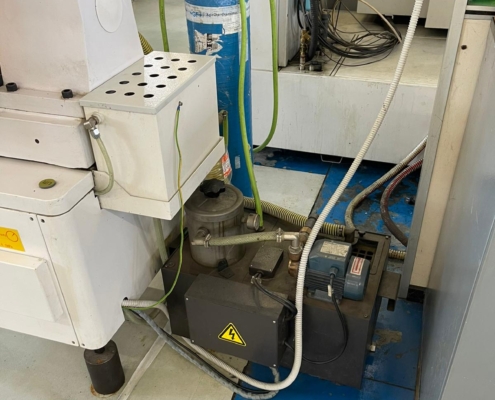

Pump operating pressure bar 70
Dimensions of the machine mm 1340 x 910 x 1940
Total weight of the machine kg 870
Data subject to possible revisions, not binding
